ABB CFSWDM23933T-E

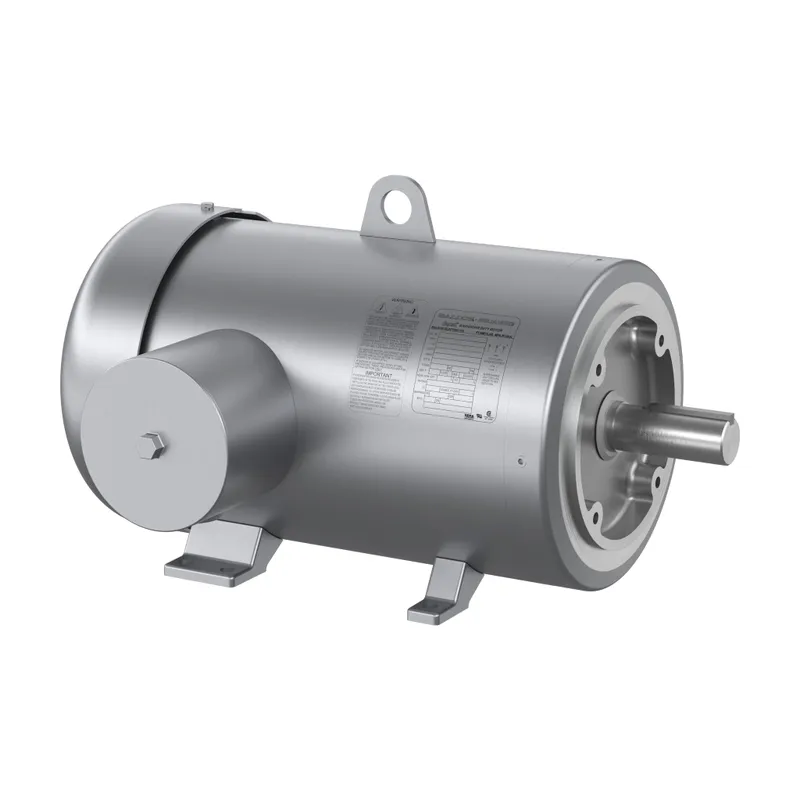

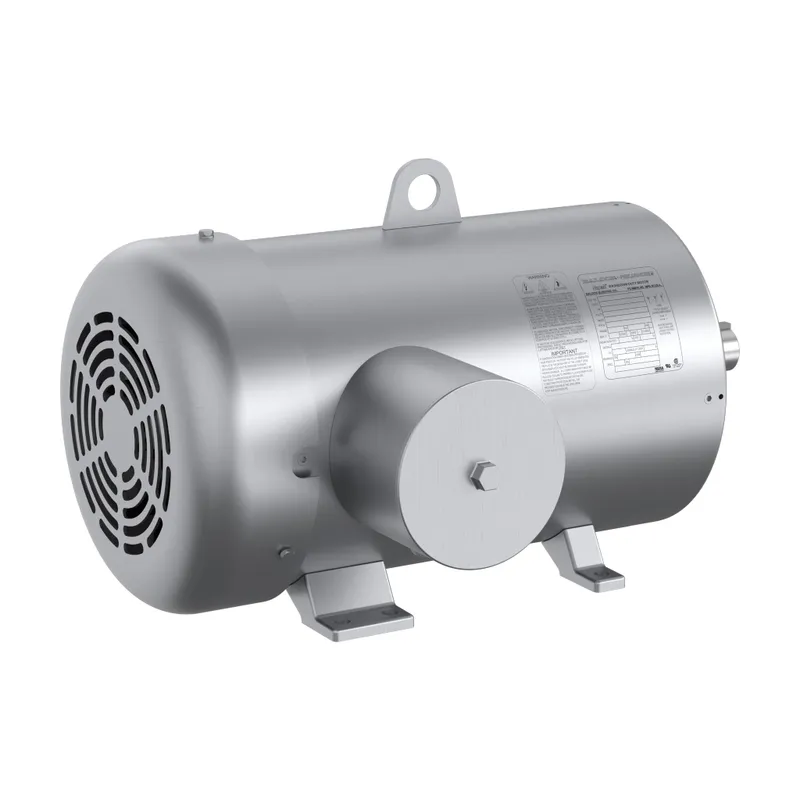

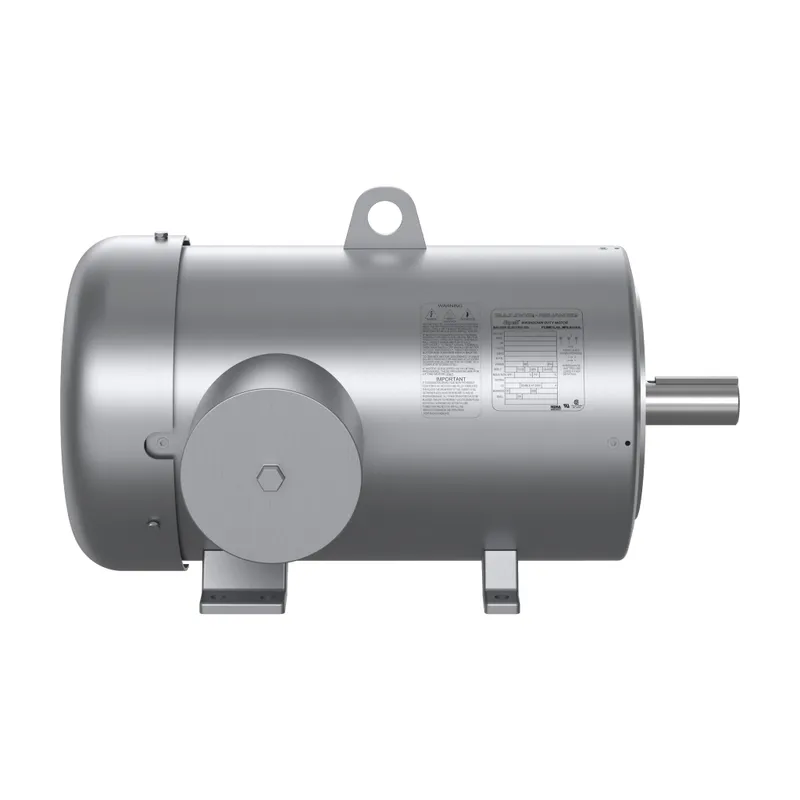

15HP,1765RPM,3PH,60HZ,254TC,3956M,T

MPN: CFSWDM23933T-E
Category: Food Safe three phase motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CFSWDM23933T-E?

Washdown Motor 15 Hp 230 V (CFSWDM23933T-E)

Specifications

Ordering

Catalog Number	CFSWDM23933T-E
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	92.40 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	15 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Stainless Steel
Motor Frame Size	254TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	19.625 in
Product Net Weight	281 lb
Product Net Width	23.75 in
Dimension Diagram	39LYE646

Certificates and Declarations

Certification Agency	CSA EEV, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
