Home / ABB / Stainless Steel / ABB CEWDM4419T
ABB

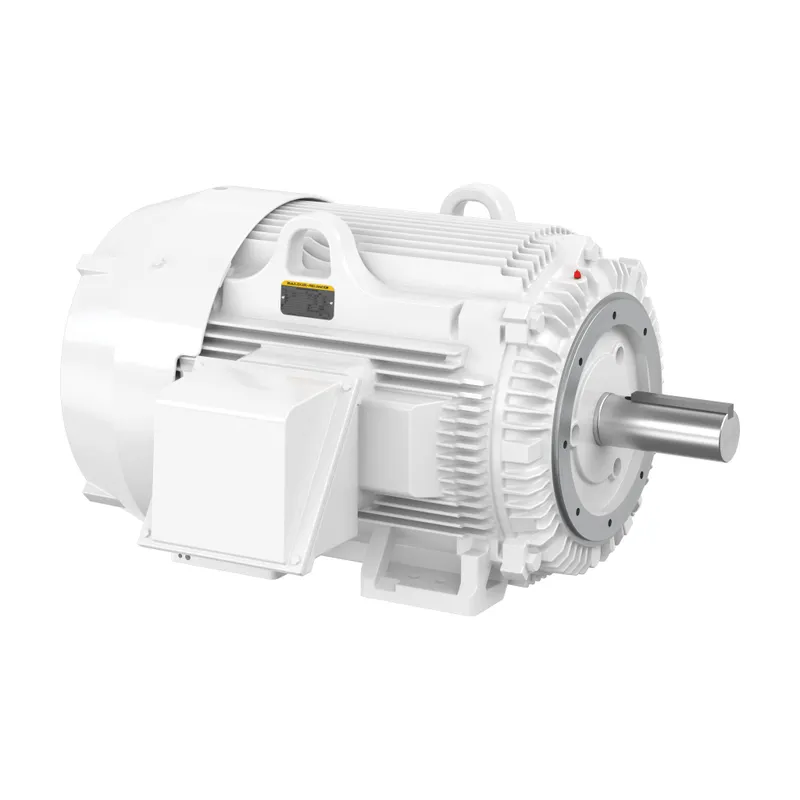

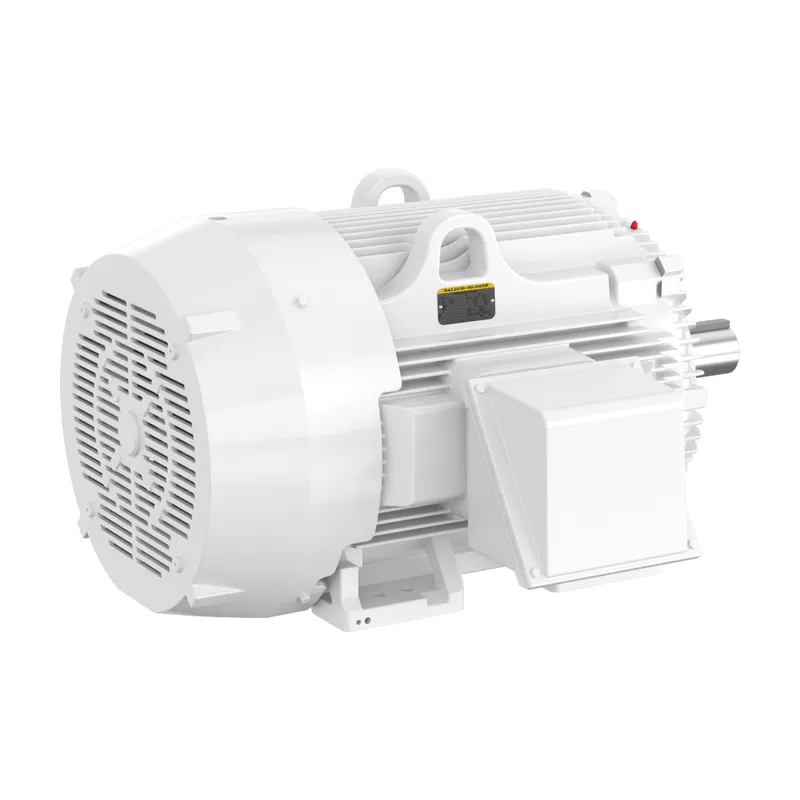

ABB CEWDM4419T

75HP,890RPM,3PH,60HZ,444TC,TEFC,F1

MPN
CEWDM4419T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEWDM4419T?

Washdown Motor 75 Hp 230 V (CEWDM4419T)

Specifications

Ordering

Catalog NumberCEWDM4419T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles8P
Number of SpeedsSingle Speed
Power Factor83 %
Rated Efficiency93.60 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)900 r/min
Output Power75 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size444TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height31 in
Product Net Weight1988.999 lb
Product Net Width41.5 in
Dimension Diagram617435-162

Certificates and Declarations

Certification AgencyCCSAUSEEV, CSA EEV
ETIM 7EC001851 - Electric motor
