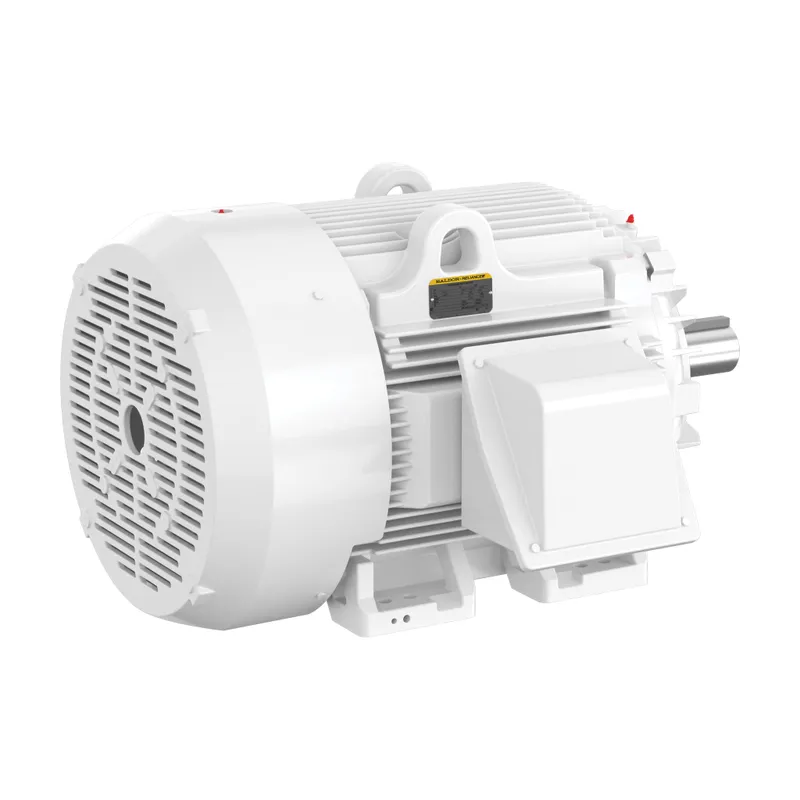

ABB CEWDM4404T

75HP,1185RPM,3PH,60HZ,405TC,TEFC,F1

MPN: CEWDM4404T
Category: Stainless Steel

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CEWDM4404T?

Washdown Motor 75 Hp 230 V (CEWDM4404T)

Specifications

Ordering

Catalog Number	CEWDM4404T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	85 %
Rated Efficiency	94.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	75 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	405TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	52.5 in
Product Net Weight	1322 lb
Product Net Width	42 in
Dimension Diagram	617429-503

Certificates and Declarations

Certification Agency	CCSAUSEEV, CSA EEV
ETIM 7	EC001851 - Electric motor
