Home / ABB / ECR580 series Crusher Duty motors / ABB CECR9504T
ABB

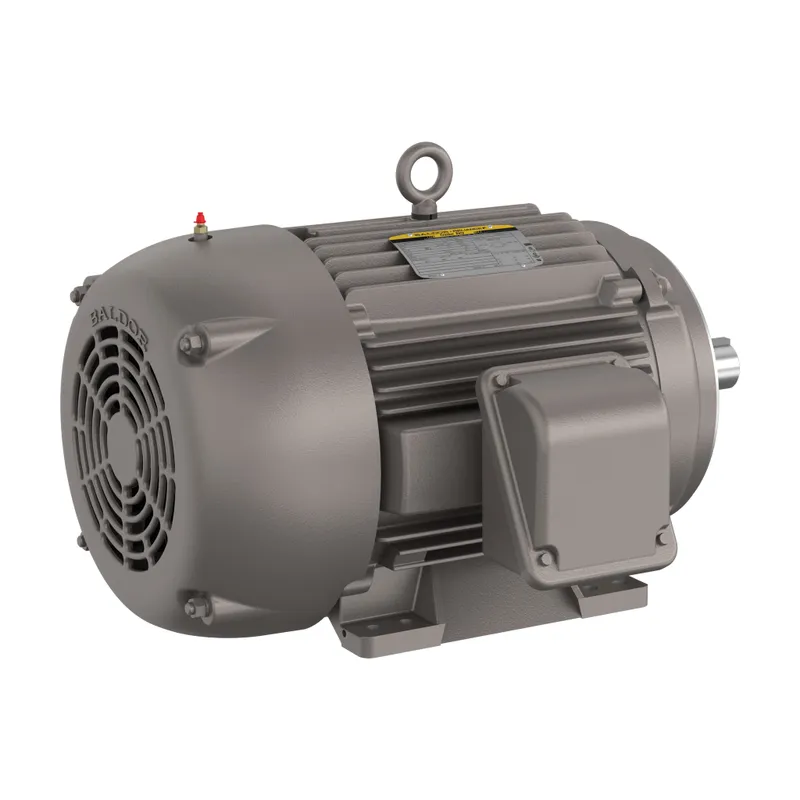

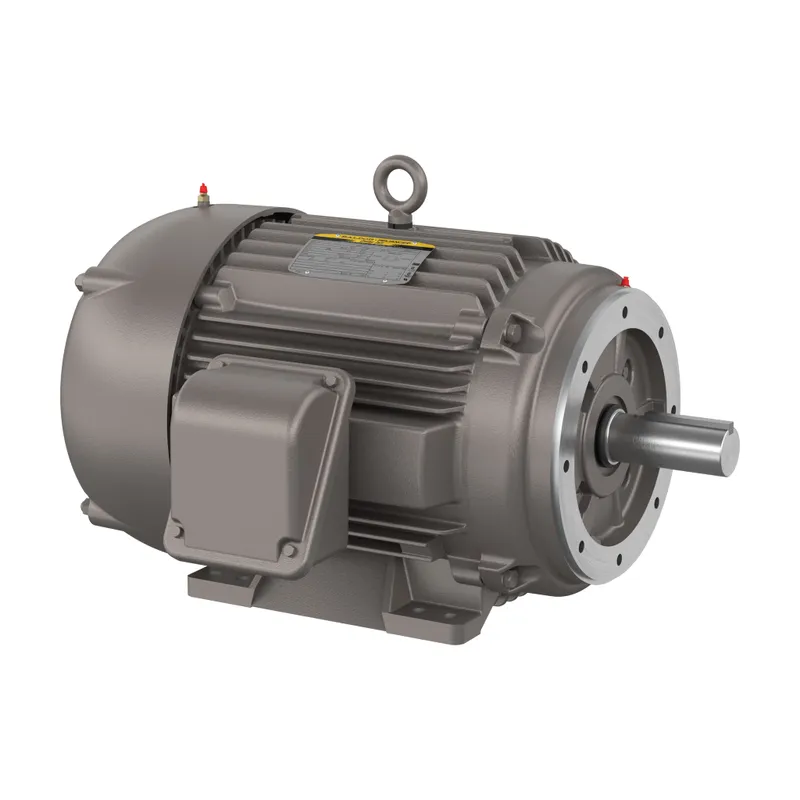

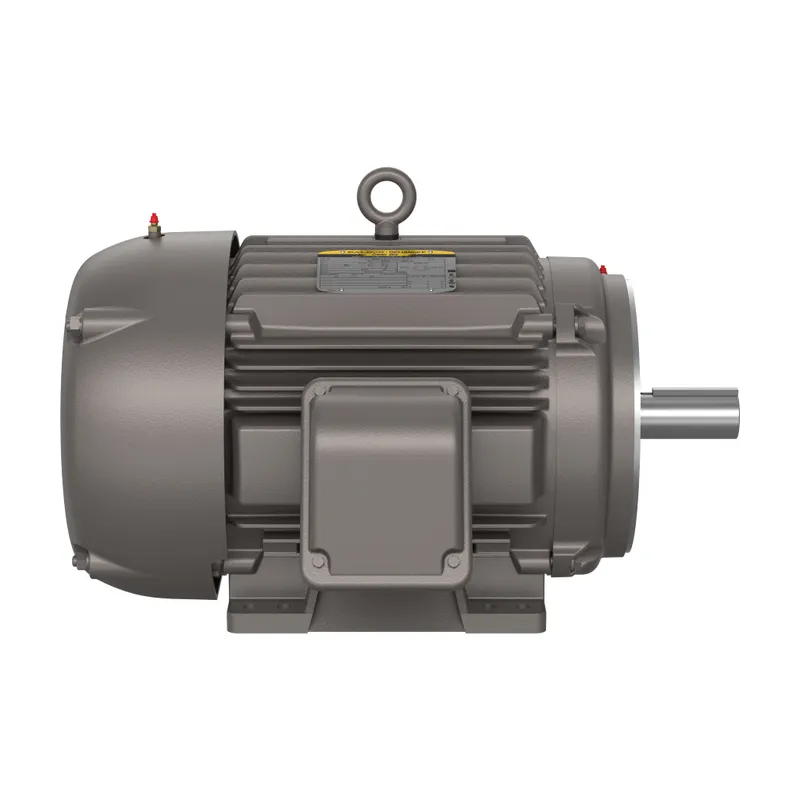

ABB CECR9504T

50HP,1775RPM,3PH,60HZ,326T,TEFC,F1

MPN
CECR9504T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CECR9504T?

Severe Duty Motor 50 Hp 230 V (CECR9504T)

Specifications

Ordering

Catalog NumberCECR9504T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor81 %
Rated Efficiency94.50 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power50 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size326TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21.625 in
Product Net Weight700 lb
Product Net Width25.688 in
Dimension Diagram12LYH992

Certificates and Declarations

Certification AgencyCCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1328 >> Multi phase motor AC
ETIM 7EC001851 - Electric motor
