Home / ABB / ECR580 series Crusher Duty motors / ABB CECR9254T
ABB

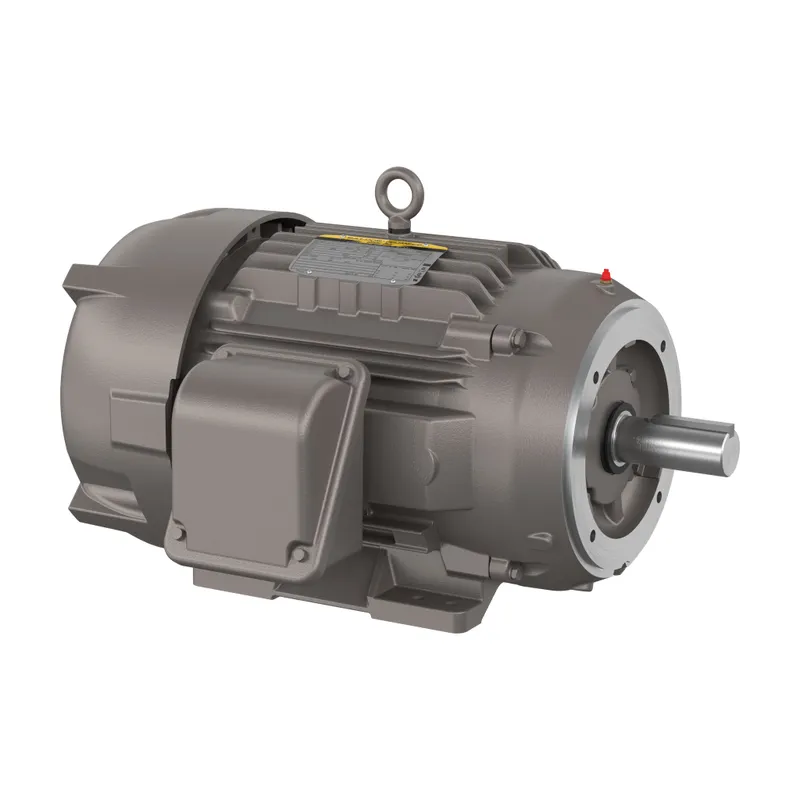

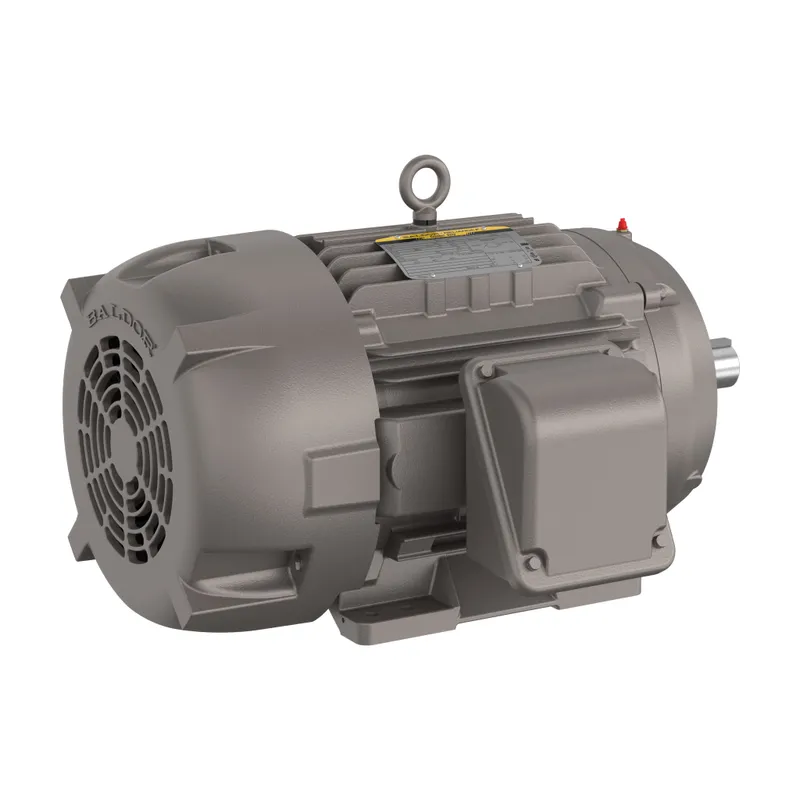

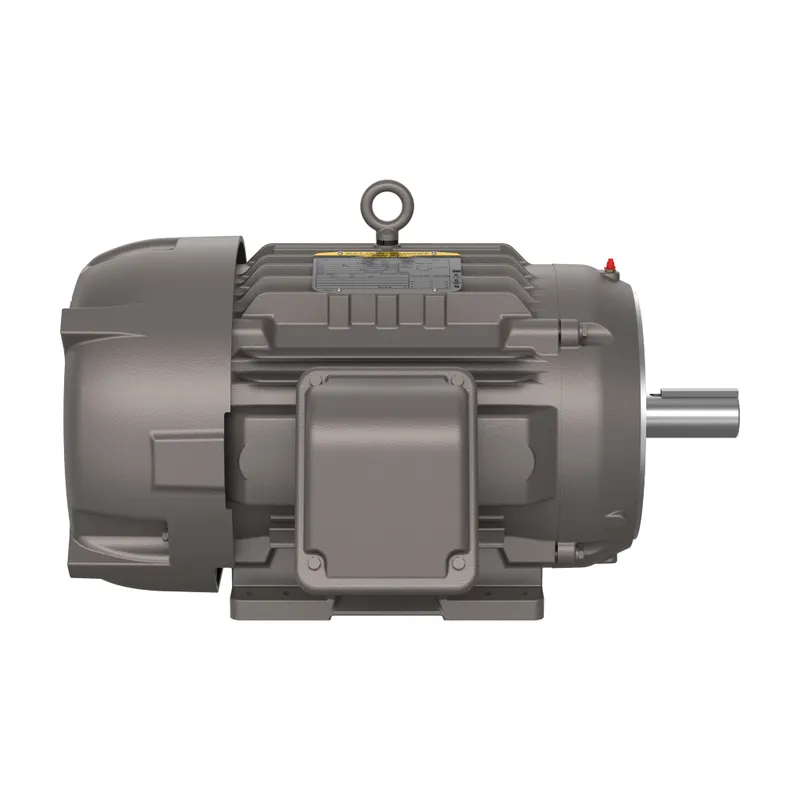

ABB CECR9254T

25HP,1770RPM,3PH,60HZ,284T,TEFC,F1

MPN
CECR9254T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CECR9254T?

Severe Duty Motor 25 Hp 230 V (CECR9254T)

Specifications

Ordering

Catalog NumberCECR9254T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015230
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor81 %
Rated Efficiency93.60 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power25 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size284TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height21 in
Product Net Weight525.999 lb
Product Net Width24.5 in
Dimension Diagram10LYK455

Certificates and Declarations

Certification AgencyCCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1328 >> Multi phase motor AC
ETIM 7EC001851 - Electric motor

CECR9254T: frequently asked questions

When can CECR9254T be shipped?

CECR9254T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CECR9254T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CECR9254T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CECR9254T, subject to availability and destination.
