ABB CECP3661T-5

3HP,1760RPM,3PH,60HZ,182TC,0628M,TE

MPN
CECP3661T-5
Category
XEX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CECP3661T-5?

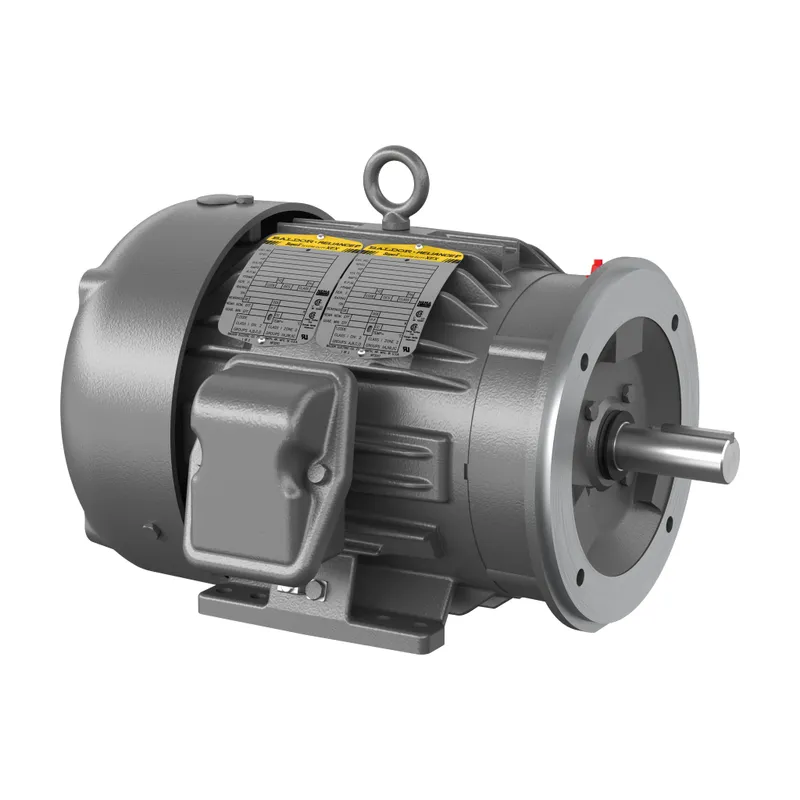

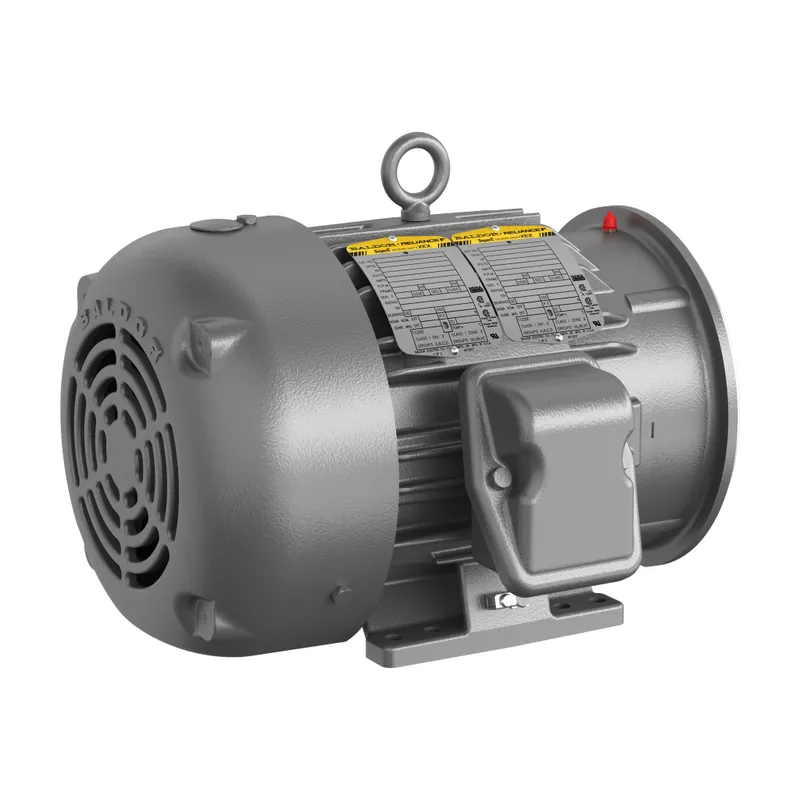

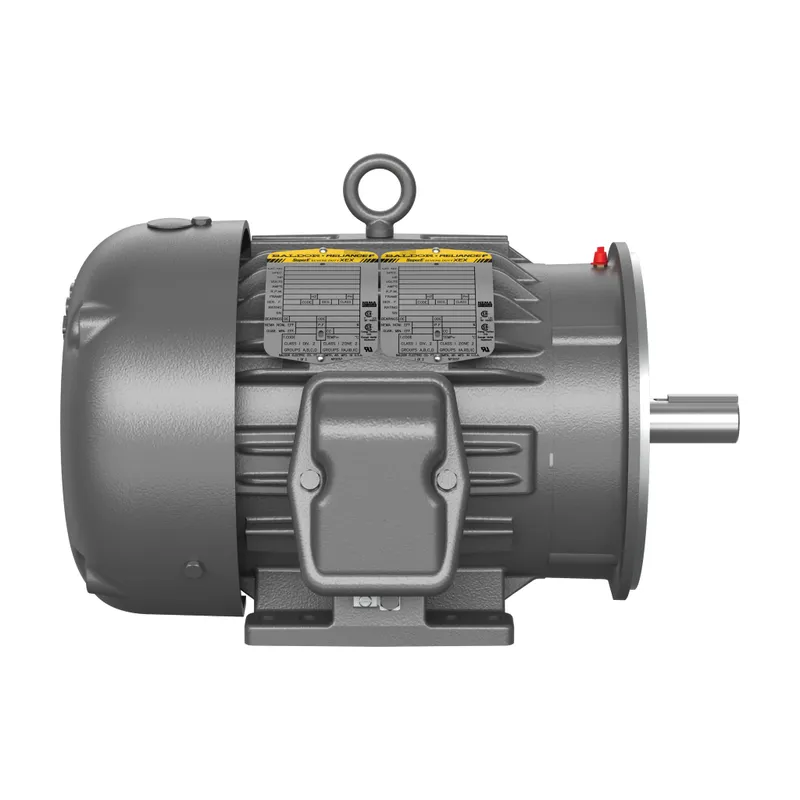

Severe Duty Motor 3 Hp 575 V (CECP3661T-5)

Specifications

Ordering

Catalog NumberCECP3661T-5
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency Level2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor80 %
Rated Efficiency89.50 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power3 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group A, B, C & D A
Frame MaterialIron
Motor Frame Size182TC
Motor Base TypeRigid
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height0 in
Product Net Weight111 lb
Product Net Width0 in

Certificates and Declarations

Certification AgencyCCSA US, CSA, CSA EEV, UR
