Home / ABB / XEX / ABB CECP3587T

ABB

ABB CECP3587T

2HP,1760RPM,3PH,60HZ,145TC,0526M,TE

MPN: CECP3587T
Category: XEX

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

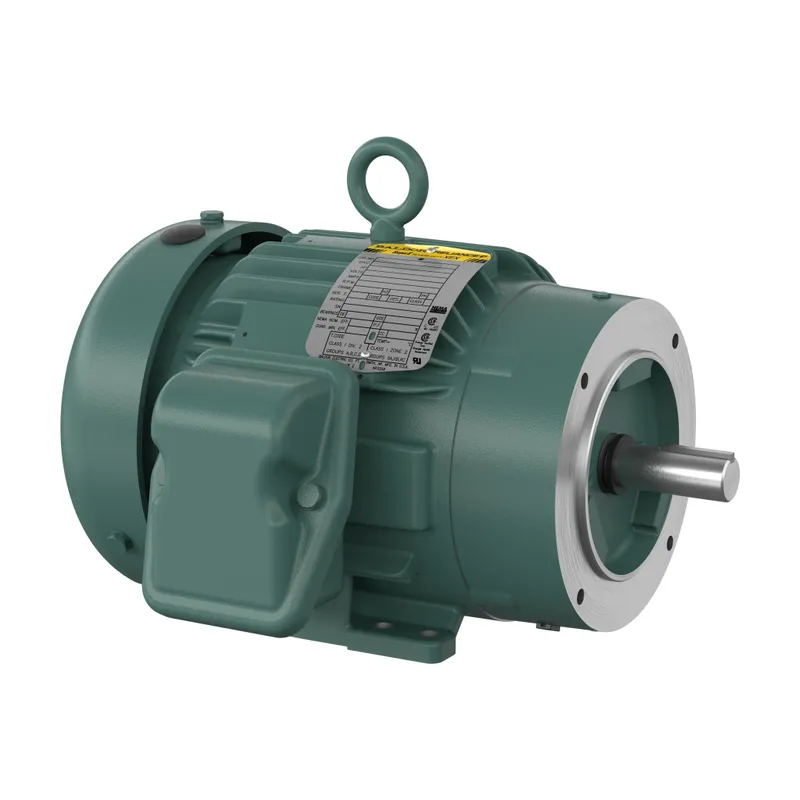

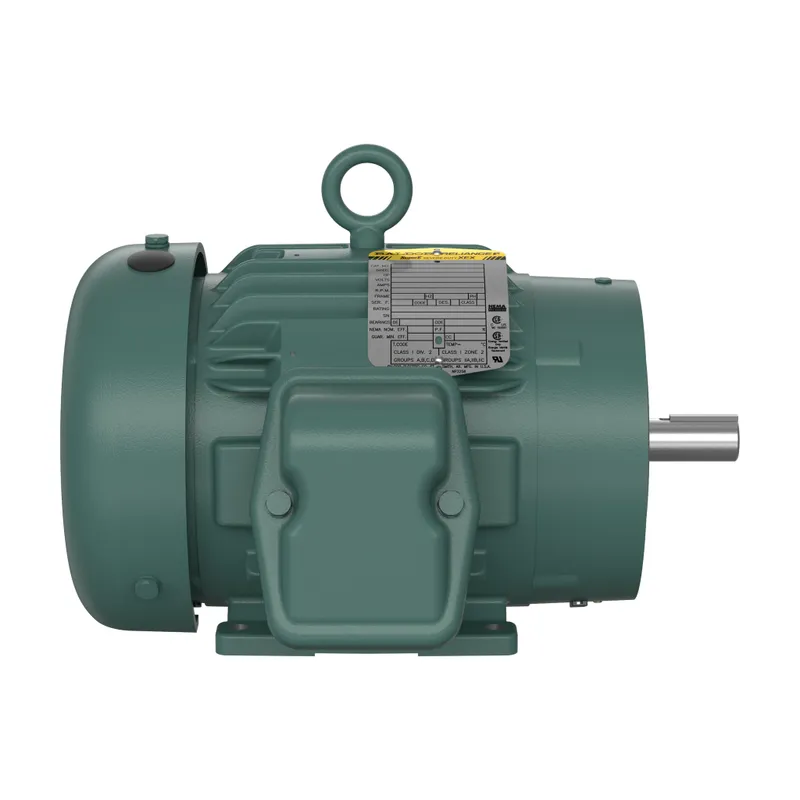

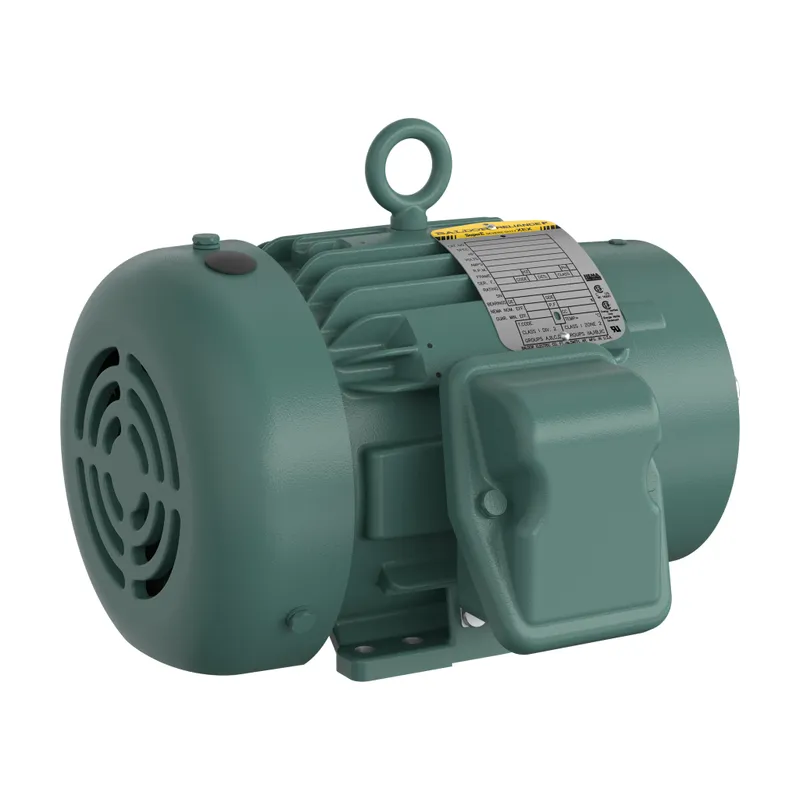

What is the ABB CECP3587T?

Severe Duty Motor 2 Hp 230 V (CECP3587T)

Specifications

Ordering

Catalog Number	CECP3587T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	76 %
Rated Efficiency	86.50 %
Service Factor	1.15
Temperature Class	T4
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	2 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	145TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	76 lb
Product Net Width	13.75 in
Dimension Diagram	05LYF007

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
