Home / ABB / XP general purpose / ABB CEBM7014T-5

ABB

ABB CEBM7014T-5

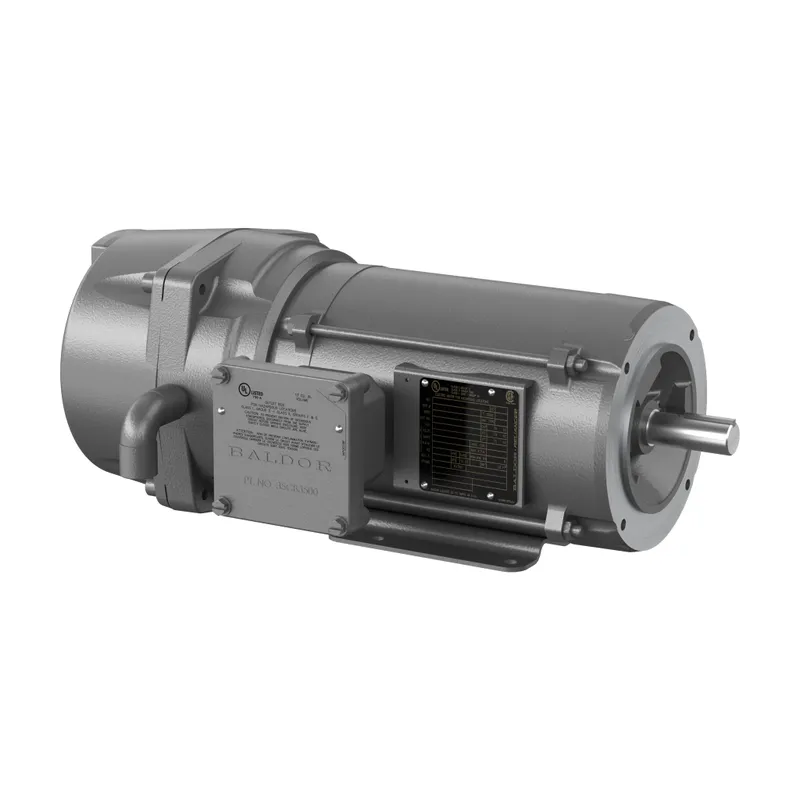

1HP,1760RPM,3PH,60HZ,143TC,3532M,XP

MPN: CEBM7014T-5
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CEBM7014T-5?

Explosion Proof General Purpos 1 Hp 575 V (CEBM7014T-5)

Specifications

Ordering

Catalog Number	CEBM7014T-5
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	78 %
Rated Efficiency	87.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	XPNV
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	0 in
Product Net Weight	99 lb
Product Net Width	0 in

Certificates and Declarations

Certification Agency

CSA, UL
