ABB

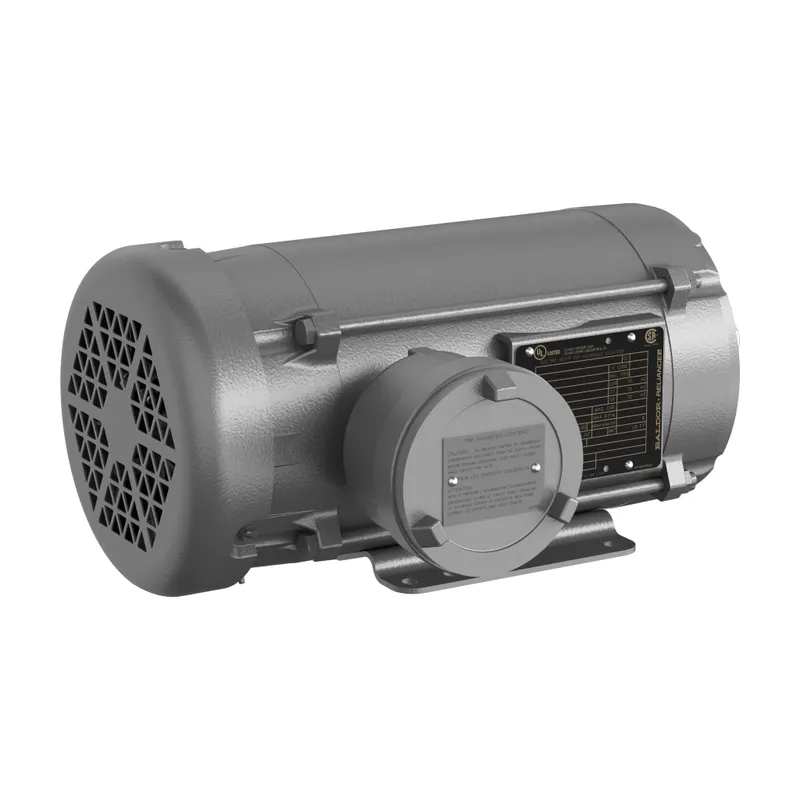

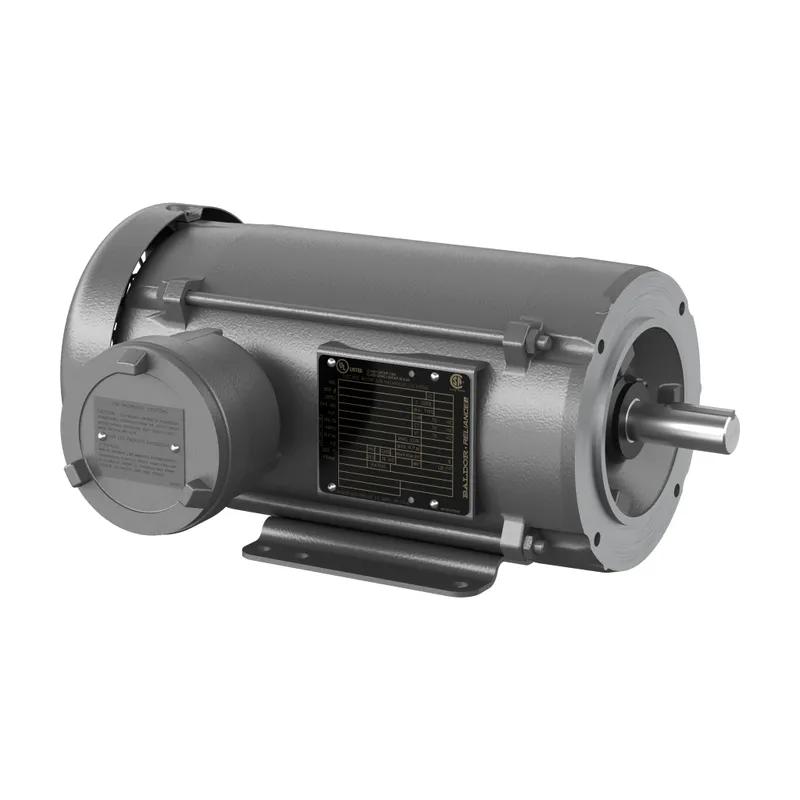

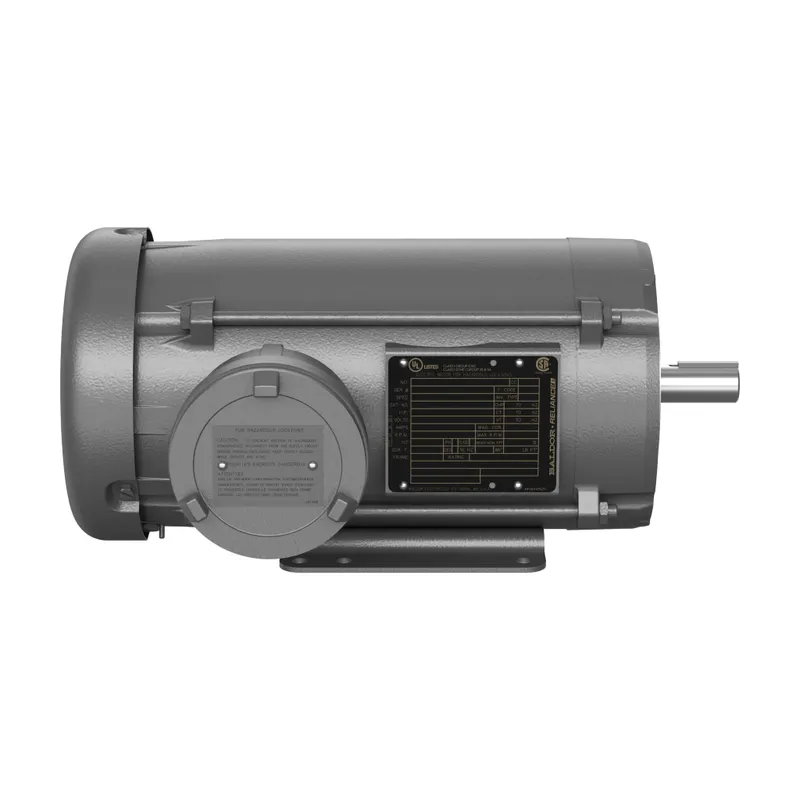

ABB CDRX14224T

2HP,3490//2890RPM,3PH,60HZ,145TC,XP

MPN
CDRX14224T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CDRX14224T?

Explosion Proof Drill Rig Duty 1.5 Hp 190 V (CDRX14224T)

Specifications

Ordering

Catalog NumberCDRX14224T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency85.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power1.5 Hp, 2 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialSteel
Motor Frame Size145TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight46 lb
Product Net Width16.125 in
Dimension Diagram35LYX732

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UR
ETIM 7EC001851 - Electric motor
