Home / ABB / XP Drill Rig Duty / ABB CDRX14164T
ABB

ABB CDRX14164T

1//.75HP,1155//970RPM,3PH,60//50HZ

MPN
CDRX14164T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

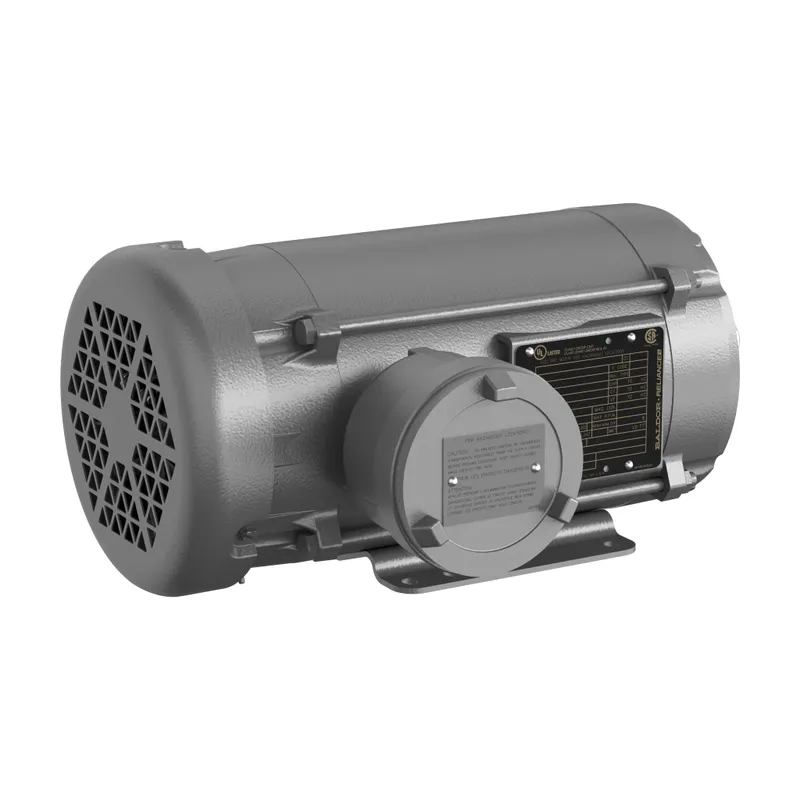

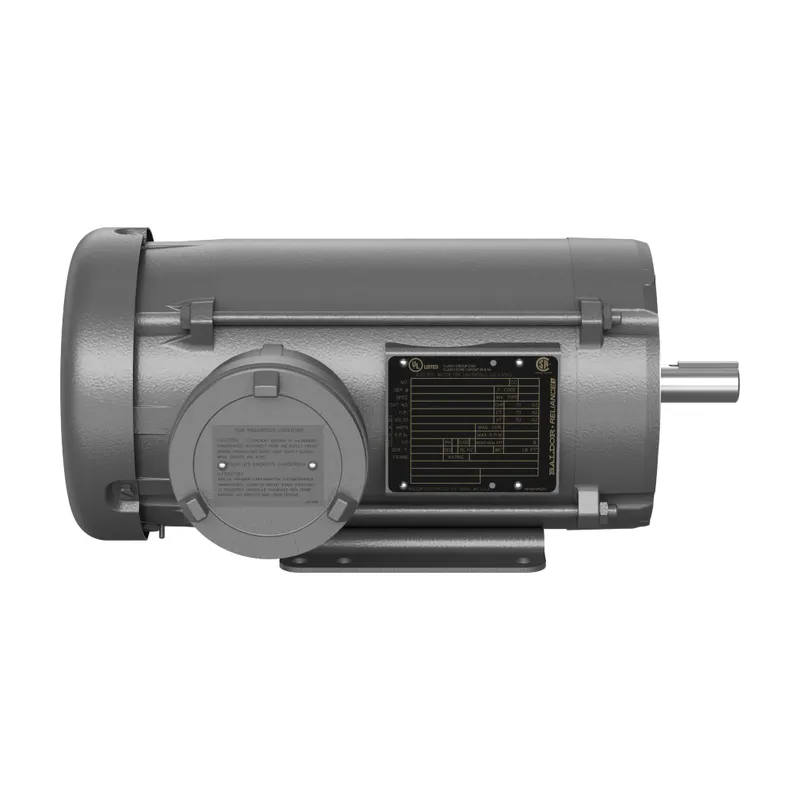

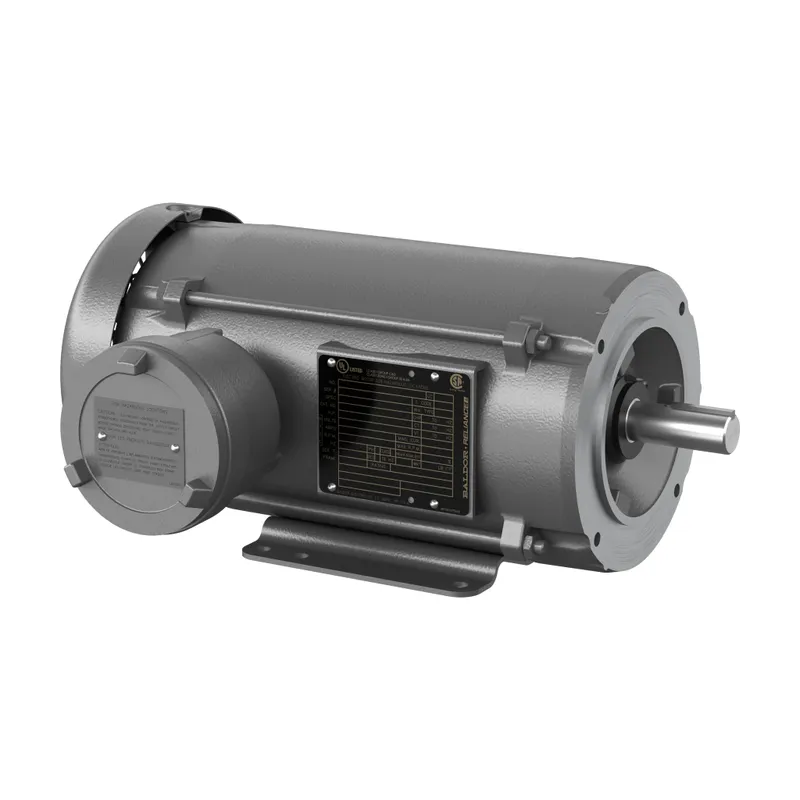

What is the ABB CDRX14164T?

Explosion Proof Drill Rig Duty 0.750.000 Hp 190 V (CDRX14164T)

Specifications

Ordering

Catalog NumberCDRX14164T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor64 %
Rated Efficiency82.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power0.750.000 Hp, 1.000 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialSteel
Motor Frame Size145TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight49 lb
Product Net Width16.125 in
Dimension Diagram35LYX732

Certificates and Declarations

Certification AgencyCSA, CSA EEV, UL
ETIM 7EC001851 - Electric motor
