Home / ABB / XP Drill Rig Duty / ABB CDRX050744
ABB

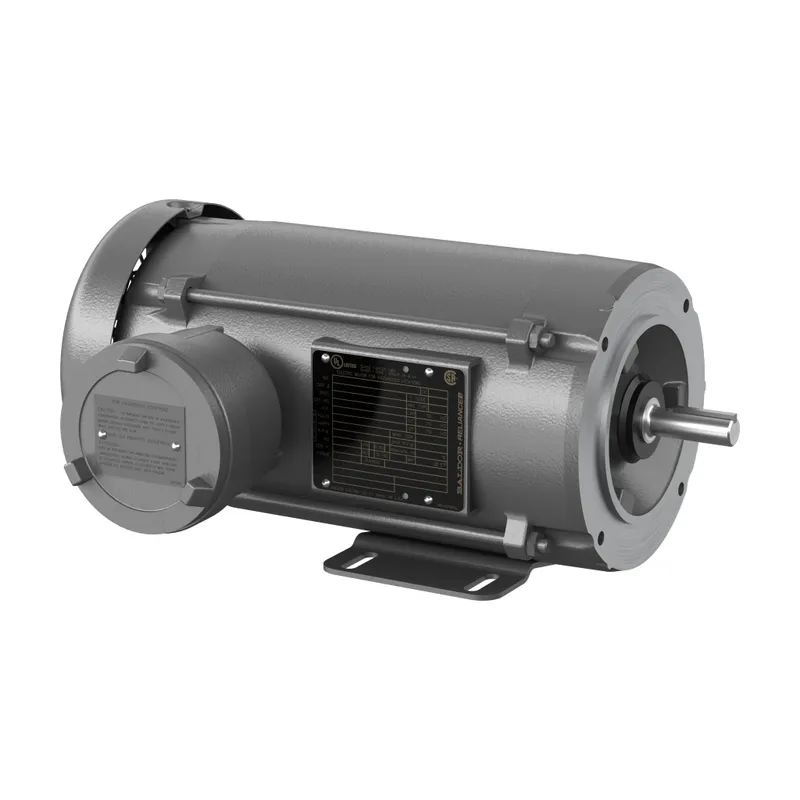

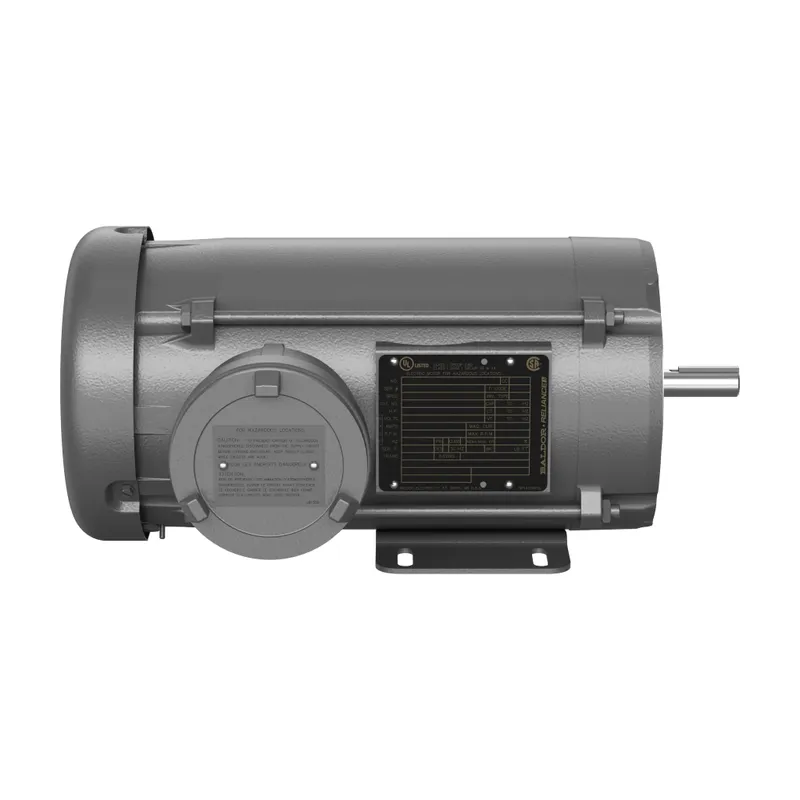

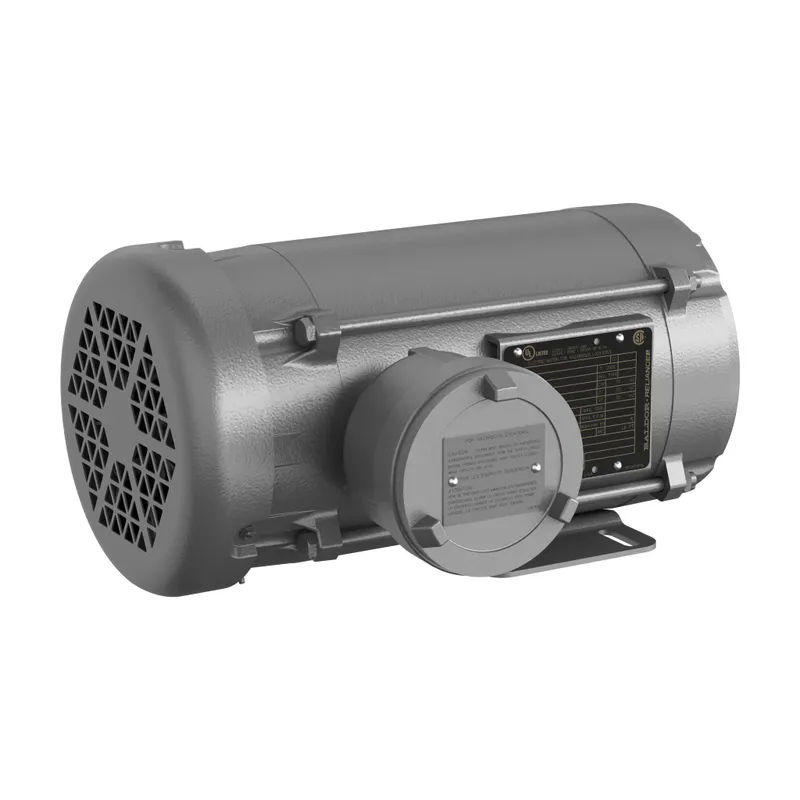

ABB CDRX050744

.75//.5HP,1765//1470RPM,3PH,60//50H

MPN
CDRX050744
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via

What is the ABB CDRX050744?

Explosion Proof Drill Rig Duty 0.5 Hp 190 V (CDRX050744)

Specifications

Ordering

Catalog NumberCDRX050744
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor74 %
Rated Efficiency82.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.5 Hp, 0.750 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group C & D
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight33 lb
Product Net Width13.75 in
Dimension Diagram35LYX738

Certificates and Declarations

Certification AgencyCSA, UL, UR
ETIM 7EC001851 - Electric motor

CDRX050744: frequently asked questions

When can CDRX050744 be shipped?

CDRX050744 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CDRX050744 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CDRX050744 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDRX050744, subject to availability and destination.
