Home / ABB / Explosion Proof SCR PM / ABB CDPX3545

ABB

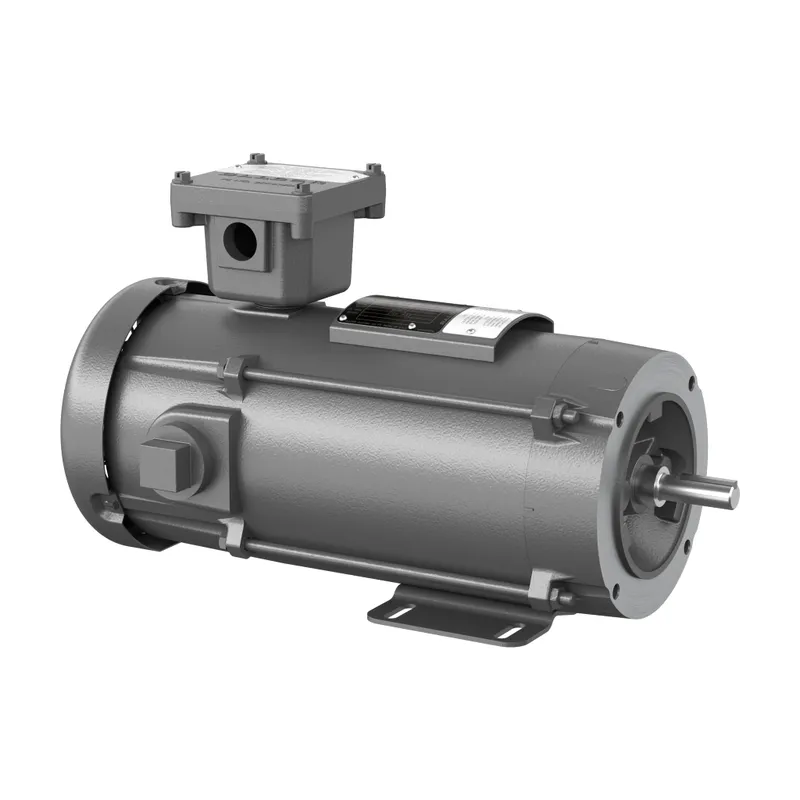

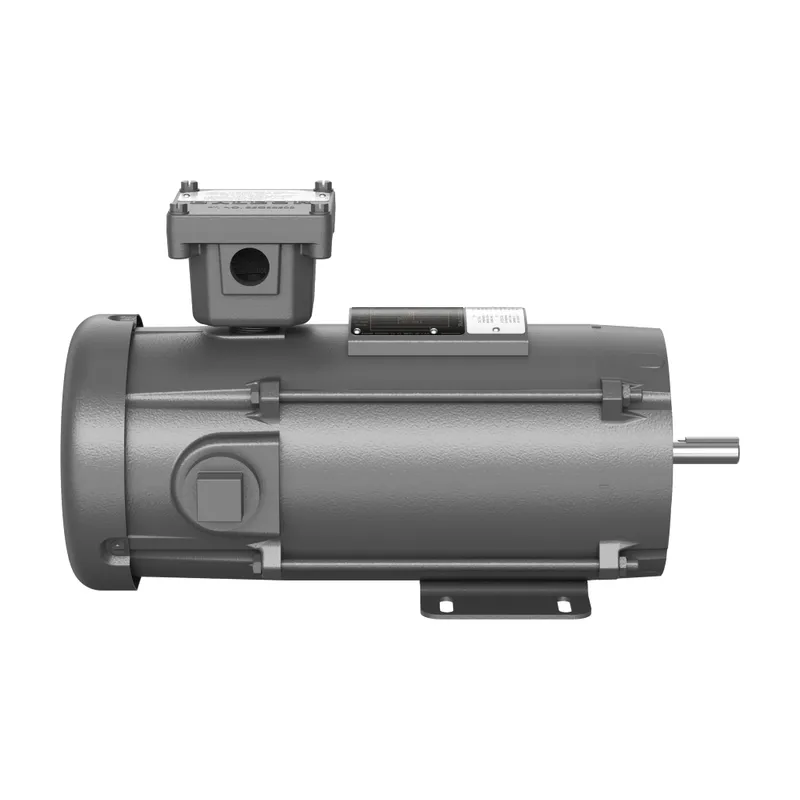

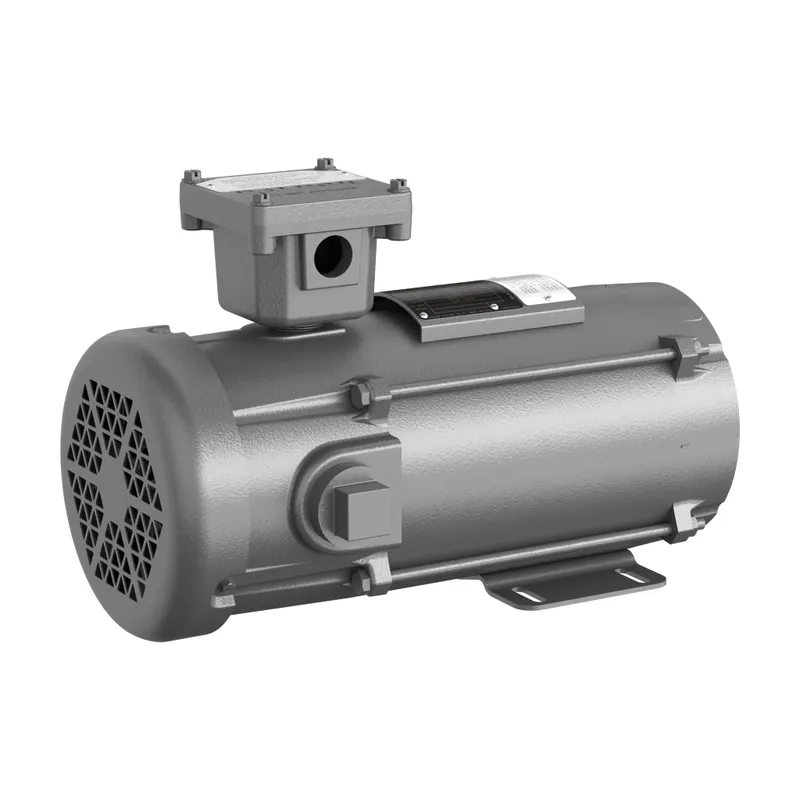

ABB CDPX3545

1HP,1750RPM,DC,56C,X3536P,XPFC,F1

MPN: CDPX3545
Category: Explosion Proof SCR PM

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CDPX3545?

DC PM Explosion Proof 1 Hp (CDPX3545)

Specifications

Ordering

Catalog Number	CDPX3545
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Insulation Class	F
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Output Power	1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	XPFC
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	12.813 in
Product Net Weight	70 lb
Product Net Width	12.25 in
Dimension Diagram	35LYP565

Certificates and Declarations

Certification Agency	CSA, UL, UR
ETIM 7	EC001851 - Electric motor

CDPX3545: frequently asked questions

When can CDPX3545 be shipped?

CDPX3545 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CDPX3545 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CDPX3545 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDPX3545, subject to availability and destination.
