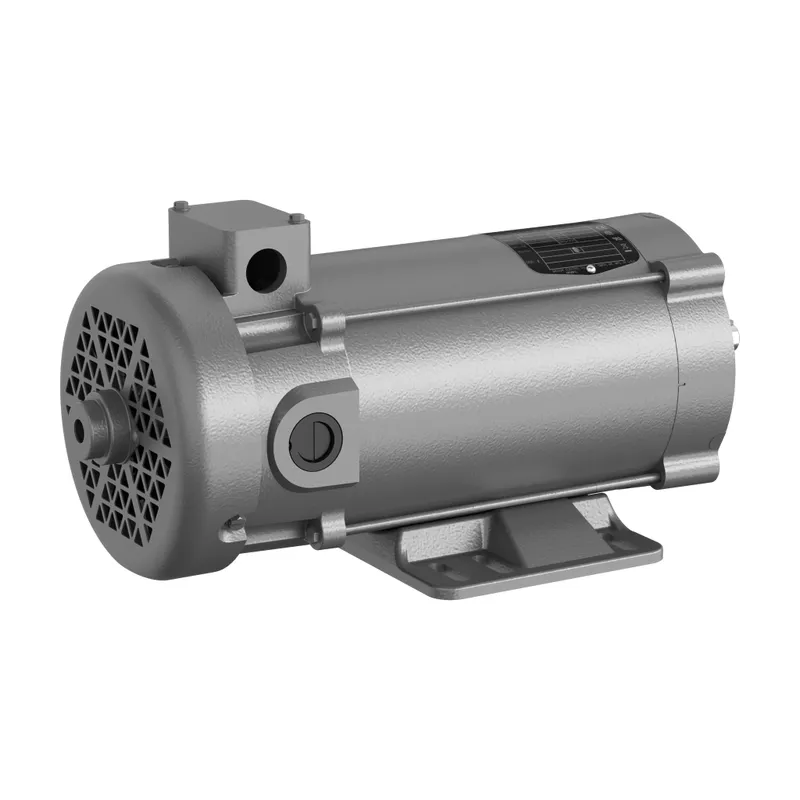

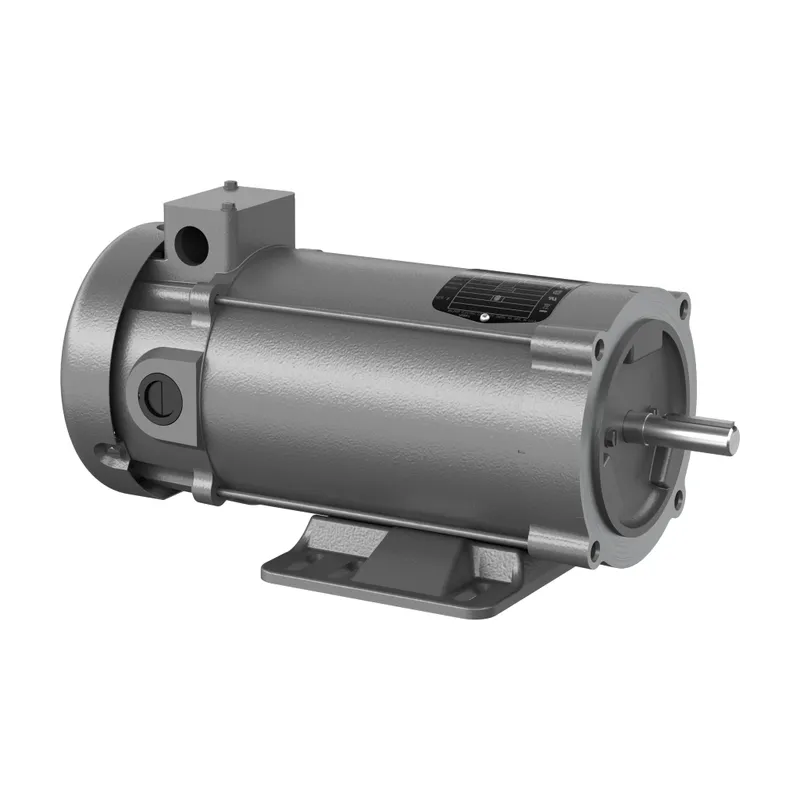

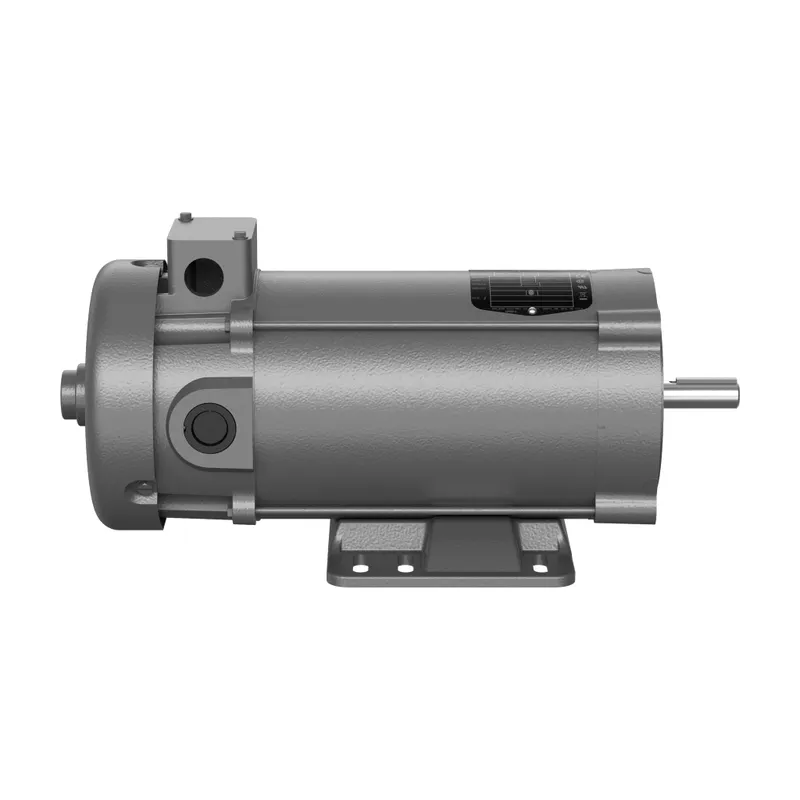

ABB CDP3450

1HP,2500RPM,DC,56C,3428P,TEFC,F1

MPN: CDP3450

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CDP3450?

1HP,2500RPM,DC,56C,3428P,TEFC,F1

Specifications

Additional Information

ABB Type Designation	1HP,2500RPM,DC,56C,3428P,TEFC,F1
Altitude	1000 m m
Ambient Temperature	40 °C
Armature Current	9.7 A A
Armature Inertia	10.93 ft·lbf
Armature Voltage	90 V V
Base Speed	2400 r/min
Bearing	6203, Sealed Bearing
Bearing NDE	6203
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	CDP3450
Certification Agency	CE, CSA, UR, WEEE
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Dimension Diagram	34LY5990
Direction of Rotation	Both sides
Drive End Flange Type	Standard
Enclosure Type	TEFC
ETIM 7	EC001851 - Electric motor
Frame Material	Steel
Frame Size	56
Global Commercial Alias	CDP3450
Gross Volume	2200.078 in³
Gross Weight	38 lb
Horsepower Rating UL/CSA	1.000 Hp
IC Class	TEFC
IE Class Data (50 Hz)	IE Class NA
IE Class Data (60 Hz)	IE Class NA
IM Class	F1
Insulation Class	F
Invoice Description	1HP,2500RPM,DC,56C,3428P,TEFC,F1
Lubrication	Regreasable
Made To Order	No
Medium Description	DC Permanent Magnet Standard, 1/.75KW HP, 0.000 RPM, Frame Size 56C, TEFC Enclosure, 0.000 V, 0.000 HZ (CDP3450) V
Minimum Order Quantity	1 piece
Motor Base Type	Foot Mounted
Motor Frame Size	56C
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	1 Hp
Product Name	DC Permanent Magnet Standard
Product Net Depth / Length	18.625 in
Product Net Height	11.25 in
Product Net Weight	38 lb
Product Net Width	10.5 in
Product Type	Undefined
Quote Only	No
Rated Speed	2400 r/min
Replaced Product ID (OLD)	7B34-5990-3763
Selling Unit of Measure	piece
Service Factor	1.00
Service Factor Percentage	1.00 %
Shaft Diameter	0.63 in
Short Description	1/.75KW HP, 0.000 RPM, Frame Size 56C, TEFC, 0.000 V V
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class Default	--
Two Speed Motor	No
Type of Duty	Continuous
Voltage Code	90 Va
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
