ABB CDP3443

.75HP,2500RPM,DC,56C,3420P,TEFC,F1

MPN
CDP3443
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CDP3443?

.75HP,2500RPM,DC,56C,3420P,TEFC,F1

Specifications

Additional Information

ABB Type Designation.75HP,2500RPM,DC,56C,3420P,TEFC,F1
Altitude1000 m m
Ambient Temperature40 °C
Armature Current7.5 A A
Armature Inertia7.8 ft·lbf
Armature Voltage90 V V
Base Speed2400 r/min
Bearing6203, Sealed Bearing
Bearing NDE6203
Brake PresentNo
Brand / LabelBaldor-Reliance
Catalog NumberCDP3443
Certification AgencyCE, CSA, UR, WEEE
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Dimension Diagram34LY5990
Direction of RotationBoth sides
Drive End Flange TypeStandard
Enclosure TypeTEFC
ETIM 7EC001851 - Electric motor
Frame MaterialSteel
Frame Size56
Global Commercial AliasCDP3443
Gross Volume2200.078 in³
Gross Weight36 lb
Horsepower Rating UL/CSA0.750 Hp
IC ClassTEFC
IE Class Data (50 Hz)IE Class NA
IE Class Data (60 Hz)IE Class NA
IM ClassF1
Insulation ClassF
Invoice Description.75HP,2500RPM,DC,56C,3420P,TEFC,F1
LubricationRegreasable
Made To OrderNo
Medium DescriptionDC Permanent Magnet Standard, .75/.56KW HP, 0.000 RPM, Frame Size 56C, TEFC Enclosure, 0.000 V, 0.000 HZ (CDP3443) V
Minimum Order Quantity1 piece
Motor Base TypeFoot Mounted
Motor Frame Size56C
Mounting OrientationHorizontal
Order Multiple1 piece
Output Power0.75 Hp
Product NameDC Permanent Magnet Standard
Product Net Depth / Length18.625 in
Product Net Height11.25 in
Product Net Weight36 lb
Product Net Width10.5 in
Product TypeUndefined
Quote OnlyNo
Rated Speed2400 r/min
Replaced Product ID (OLD)7B34-5990-4542
Selling Unit of Measurepiece
Service Factor1.00
Service Factor Percentage1.00 %
Shaft Diameter0.63 in
Short Description.75/.56KW HP, 0.000 RPM, Frame Size 56C, TEFC, 0.000 V V
StandardsNEMA
Stocked At (Warehouses)China, Fort Smith, Arkansas, United States, Alaska, United States
Temperature Class Default--
Two Speed MotorNo
Type of DutyContinuous
Voltage Code90 Va
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

CDP3443: frequently asked questions

When can CDP3443 be shipped?

CDP3443 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CDP3443 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CDP3443 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDP3443, subject to availability and destination.

More ABB parts

ABB CDP3430-V12 – .5HP,1800RPM,DC,56C,3420P,TENV,12V
ABB
CDP3430-V12

.5HP,1800RPM,DC,56C,3420P,TENV,12V

ABB CDP3430-V24 – .5HP,1800RPM,DC,56C,3424P,TENV,F1
ABB
CDP3430-V24

.5HP,1800RPM,DC,56C,3424P,TENV,F1

ABB CDP3440-V12 – .75HP,1800RPM,DC,56C,3430P,TEFC,F1
ABB
CDP3440-V12

.75HP,1800RPM,DC,56C,3430P,TEFC,F1

ABB CDP3440-V24 – .75HP,1800RPM,DC,56C,3424P,TEFC,F1
ABB
CDP3440-V24

.75HP,1800RPM,DC,56C,3424P,TEFC,F1

ABB CDP3445-V12 – 1HP,1800RPM,DC,56C,3435P,TEFC,12v
ABB
CDP3445-V12

1HP,1800RPM,DC,56C,3435P,TEFC,12v

ABB CDP3445-V24 – 1HP,1800RPM,DC,56C,3435P,TEFC,F3,N
ABB
CDP3445-V24

1HP,1800RPM,DC,56C,3435P,TEFC,F3,N

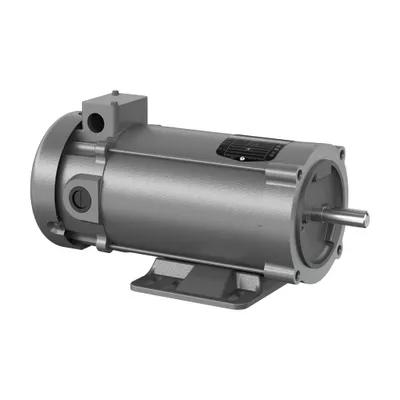

ABB CDP3450 – 1HP,2500RPM,DC,56C,3428P,TEFC,F1
