Home / ABB / XP general purpose / ABB CBXMN18242T
ABB

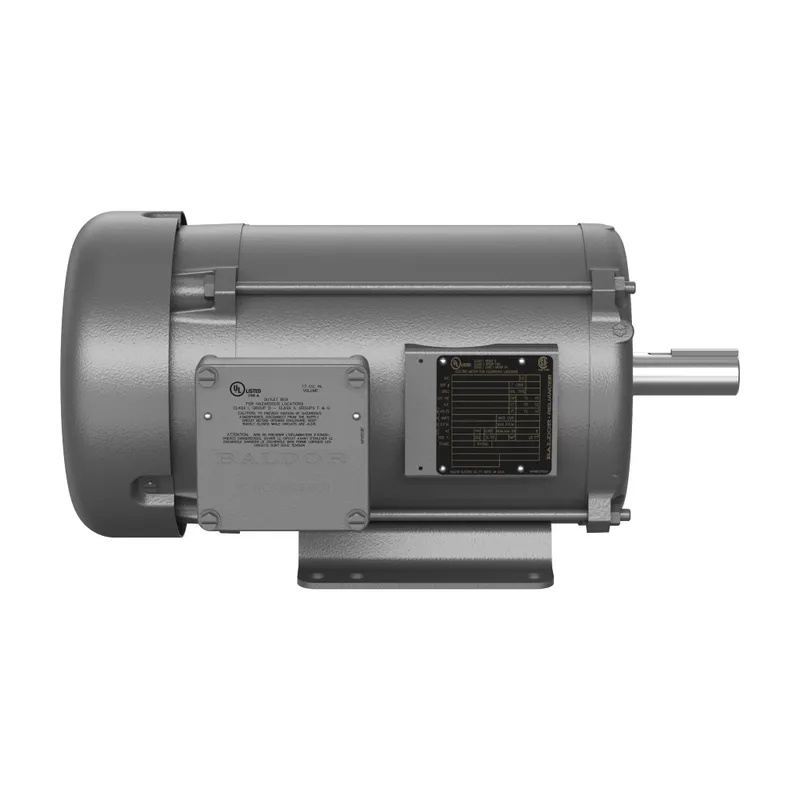

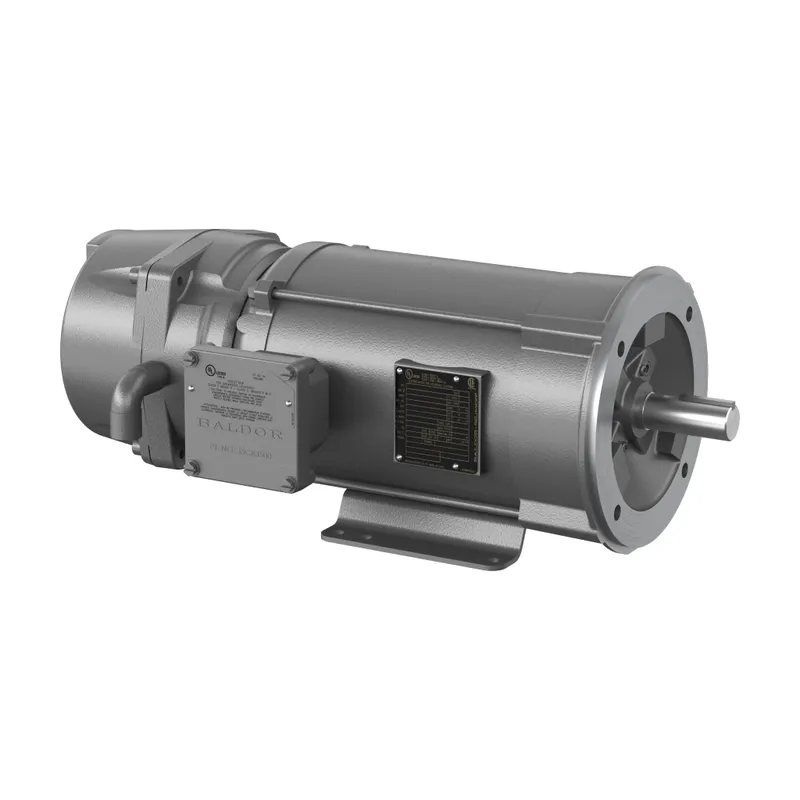

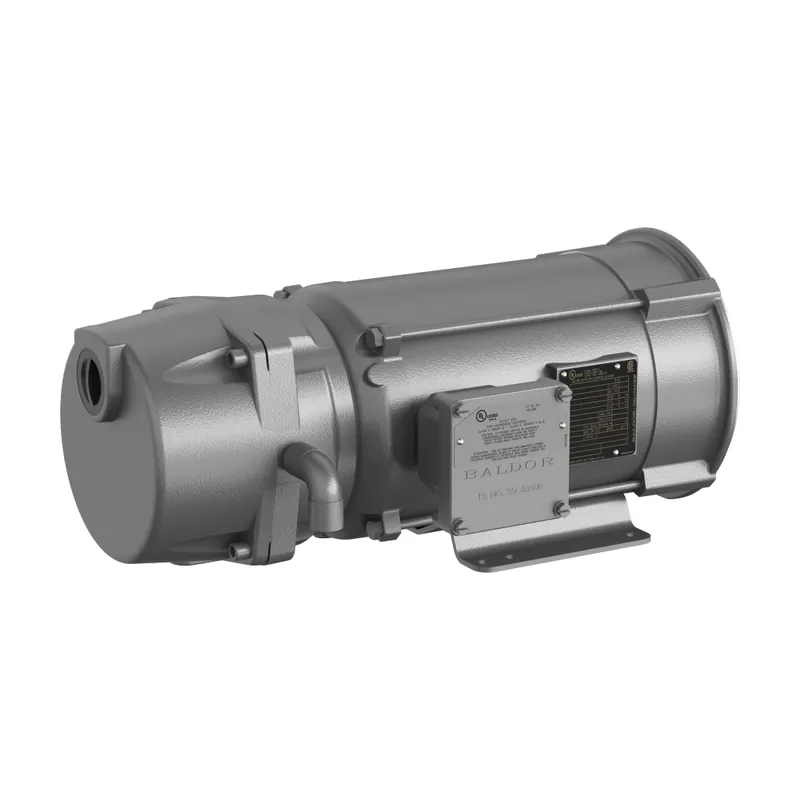

ABB CBXMN18242T

2//1.5HP,1760//1470RPM,3PH,60HZ,182

MPN
CBXMN18242T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CBXMN18242T?

Explosion Proof General Purpos 1.5 Hp 190 V (CBXMN18242T)

Specifications

Ordering

Catalog NumberCBXMN18242T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor79 %
Rated Efficiency87.50 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1.5 Hp, 2.000 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTENV
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size182TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentYes

Dimensions

Product Net Height16.25 in
Product Net Weight141 lb
Product Net Width16.625 in
Dimension Diagram36LYM726

Certificates and Declarations

Certification AgencyCSA EEV, UL
ETIM 7EC001851 - Electric motor
