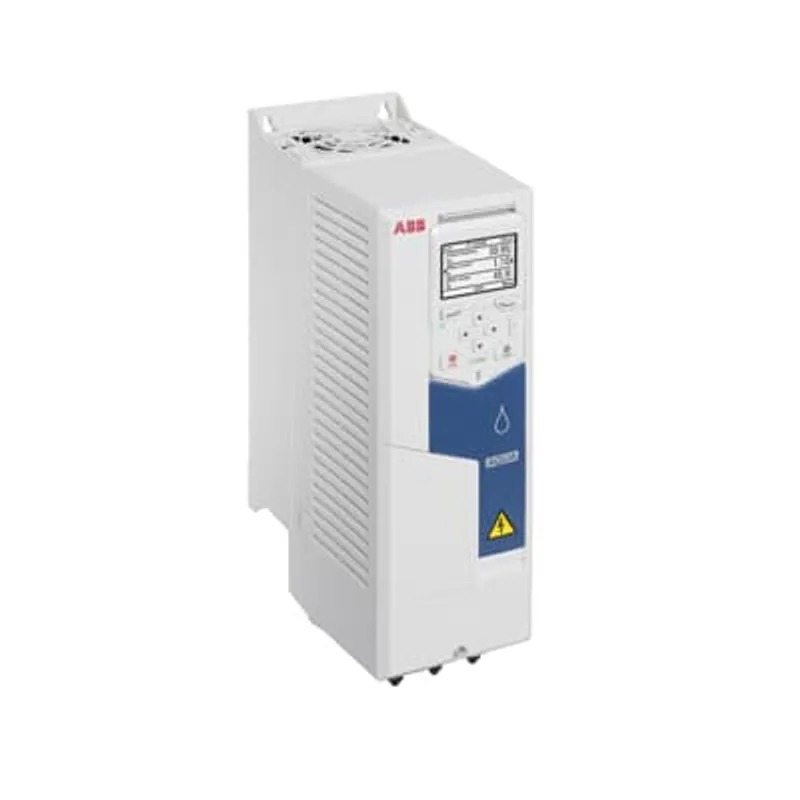

ABB ACQ580-01-07A3-4

Q: When can ACQ580-01-07A3-4 be shipped?

ACQ580-01-07A3-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up ACQ580-01-07A3-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for ACQ580-01-07A3-4 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ580-01-07A3-4, subject to availability and destination.

LV AC wall-mounted drive for water and wastewater, IEC: Pn 3 kW, 7.2 A, 400 V ( )

MPN: ACQ580-01-07A3-4
Category: Wall-mounted drive for water and wastewater

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACQ580-01-07A3-4?

The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall- mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.

Specifications

Customs Tariff Number	85044085
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-01-07A3-4 PN: 3 kW, IN: 7.2 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	4.6 kg, 10.1 lb
Product Net Depth / Length	223 mm, 8.780 in
Product Net Height	373 mm, 14.685 in
Product Net Width	125 mm, 4.921 in
Package Level 1 Depth / Length	550 mm, 21.65 in
Package Level 1 Height	325 mm, 12.80 in
Package Level 1 Width	220 mm, 8.66 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP21
Enclosure Type NEMA	Type1
Altitude	4000 m
Operating Humidity (RHamb)	5 ... 95
Power Factor	0.98
Sound dB (A)	59 dB(A)
Multiple Battery Information	Lithium Coin; CR2032; 220 mAh; 3 V; 1 pc; 3 g
Frequency (f)	47.5 ... 63 Hz
Frame Size	R1
Input Voltage (Uin)	380 ... 480 V
Mounting Type	Wall-mounted
Communication Protocol	CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes	Control unit, PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 3
Output Current, Normal Use (In)	7.2 A
Output Current, Light-Overload Use (ILD)	6.8 A
Output Current, Heavy-Duty Use (IHD)	5.6 A
Output Power, Normal Use (Pn)	3 kW
Output Power, Light-Overload Use (PLD)	3 kW
Output Power, Heavy-Duty Use (PHD)	2.2 kW
Power Consumption (@Pcons)	98 W
Apparent Power Output	5.0 kV·A
Efficiency Level	IE2
Standby Loss	14 W
Temperature Rating	Maximum 40 °C, Minimum -15 °C
Declaration of Conformity - CE	ACS580, ACH580 and ACQ580 EU DoC
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	ACS580, ACH580 and ACQ580 EU DoC
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Global Warming Potential GWP Total	Distribution (Module A4) 1 kg CO₂ eq, End of Life (Modules C1-C4) 10 kg CO₂ eq, Installation (Module A5) 4 kg CO₂ eq, Manufacturing (Modules A1-A3) 114 kg CO₂ eq, Total 1287 kg CO₂ eq, Use (Modules B1-B7) 1158 kg CO₂ eq
SCIP	a5c3dd71-8ecd-44d9-98e4-45c53b6836e1 Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9	EC001857 - Frequency converter =< 1 kV
UNSPSC	39122001
