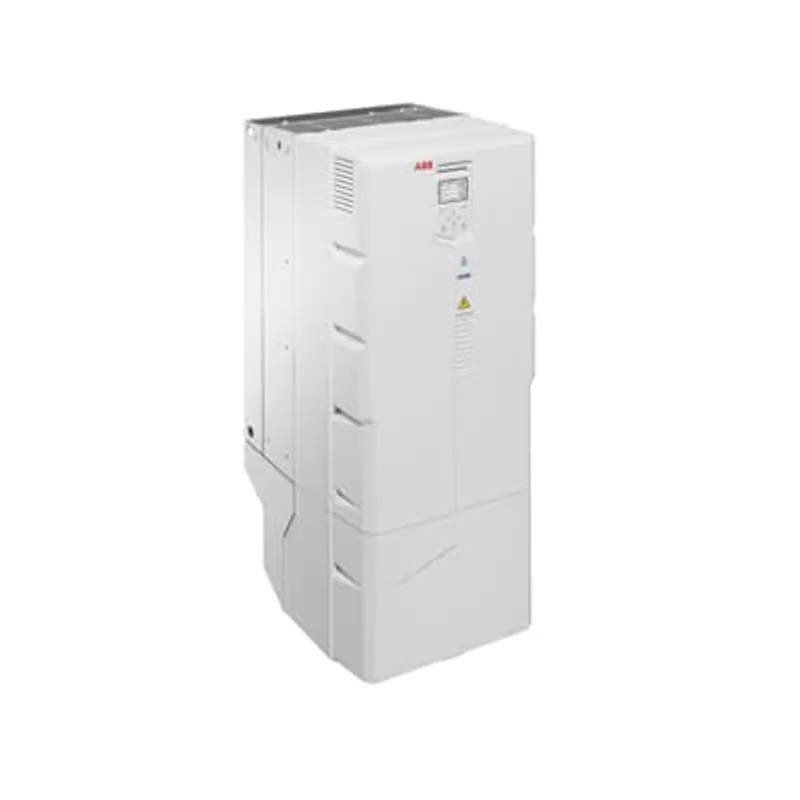

ABB ACH580-01-363A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 200 kW, 363 A ( )

MPN: ACH580-01-363A-4
Category: Wall-mounted drive for HVAC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB ACH580-01-363A-4?

The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.

Specifications

Customs Tariff Number	85044099
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACH580-01-363A-4 PN: 200kW, IN: 363A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	98 kg
Product Net Depth / Length	418 mm
Product Net Height	955 mm
Product Net Width	380 mm
Package Level 1 Units	0 carton
Number of Phases	3-phase
Degree of Protection	IP21
Enclosure Type NEMA	Type1
Frequency (f)	47.5 ... 63 Hz
Frame Size	R9
Input Voltage (Uin)	380 … 480 V
Mounting Type	Wall-mounted_NO UNIT$
Output Current, Normal Use (In)	363 A
Output Current, Light-Overload Use (ILD)	345 A
Output Current, Heavy-Duty Use (IHD)	293 A
Output Power, Normal Use (Pn)	200 kW
Output Power, Light-Overload Use (PLD)	200 kW
Output Power, Heavy-Duty Use (PHD)	160 kW
Efficiency Level	IE2
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)
UNSPSC	39122001
