Wall-mounted drive for HVAC Parts

ABB

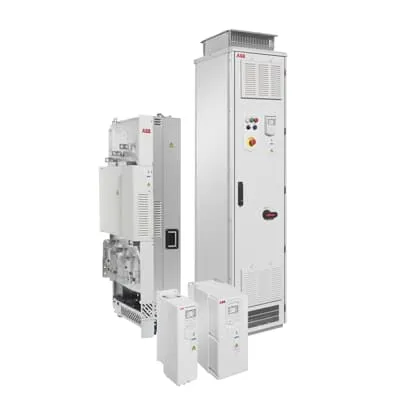

ACH580-01-023A-4+B056

LV AC wall-mounted drive for HVAC, 23 A, 380 … 480 V ( )

ABB

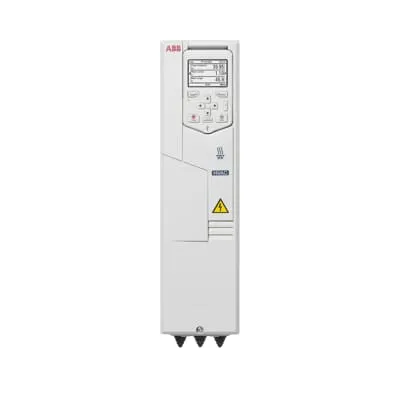

ACH580-01-03A9-6

LV AC wall-mounted drive for HVAC, UL: Pld 3 Hp, 3.9 A

ABB

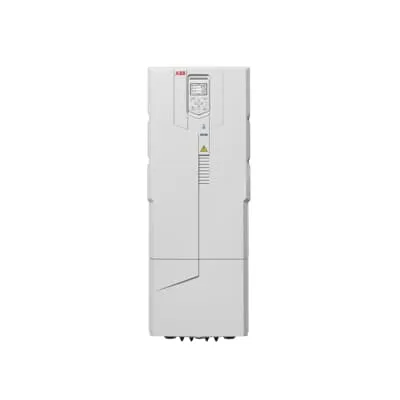

ACH580-01-302A-4

LV AC wall-mounted drive for HVAC, UL: Pld 250 Hp, 302 A

ABB

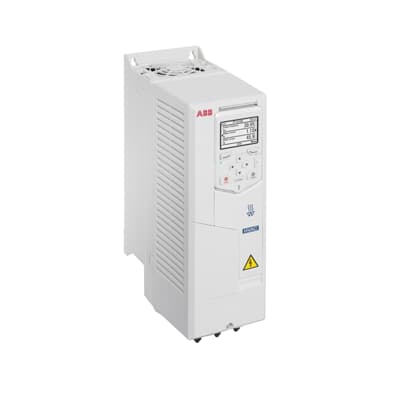

ACH580-01-012A-2

LV AC wall-mounted drive for HVAC, IEC: Pn 3 kW, 12 A

ABB

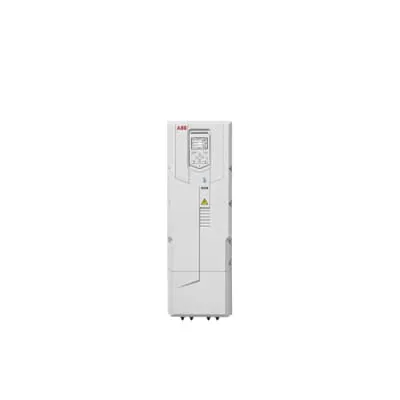

ACH580-01-143A-2

LV AC wall-mounted drive for HVAC, UL: Pld 50 Hp, 143 A

ABB

ACH580-01-06A1-6+B056

LV AC wall-mounted drive for HVAC, 6.1 A ( )

ABB

ACH580-01-246A-4+B056

LV AC wall-mounted drive for HVAC, IEC: Pn 132 kW, 246 A

ABB

ACH580-01-04A7-2+B063+F253

LV AC wall-mounted drive for HVAC, IEC: Pn 0.75 kW, 4.7 A

ABB

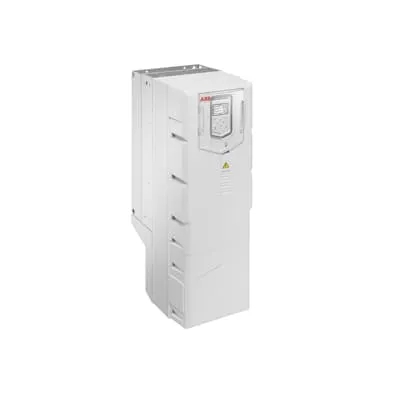

ACH580-01-169A-4+B056

LV AC wall-mounted drive for HVAC, IEC: Pn 90 kW, 169 A

ABB

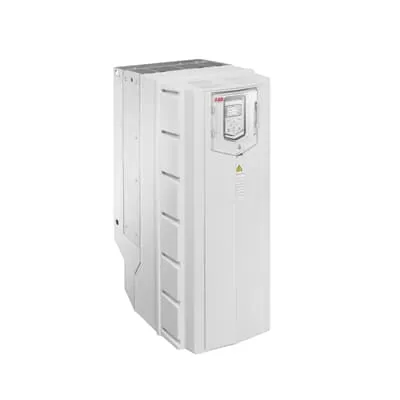

ACH580-01-293A-4+B056

LV AC wall-mounted drive for HVAC, IEC: Pn 160 kW, 293 A

ABB

ACH580-01-273A-2+B056

LV AC wall-mounted drive for HVAC, 273 A, 208 … 240 V ( )

ABB

ACH580-01-022A-6+B056

LV AC wall-mounted drive for HVAC, 22 A ( )

ABB

ACH580-01-052A-4+B056

LV AC wall-mounted drive for HVAC, 52 A, 380 … 480 V ( )

ABB

ACH580-01-027A-4+B056

LV AC wall-mounted drive for HVAC, 27 A, 380 … 480 V ( )

ABB

ACH580-01-124A-4+B056

LV AC wall-mounted drive for HVAC, 124 A, 380 … 480 V ( )

ABB

ACH580-01-096A-4+B056

LV AC wall-mounted drive for HVAC, 96 A, 380 … 480 V ( )

ABB

ACH580-01-065A-4+B056

LV AC wall-mounted drive for HVAC, 65 A, 380 … 480 V ( )

ABB

ACH580-01-044A-4+B056

LV AC wall-mounted drive for HVAC, 44 A, 380 … 480 V ( )

ABB

ACH580-01-034A-4+B056

LV AC wall-mounted drive for HVAC, 34 A, 380 … 480 V ( )

ABB

ACH580-01-014A-4+B056

LV AC wall-mounted drive for HVAC, 14 A, 380 … 480 V ( )

ABB

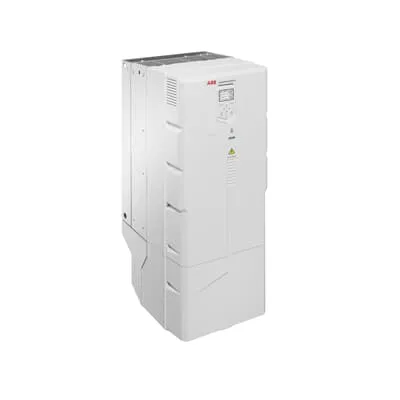

ACH580-01-363A-4

LV AC wall-mounted drive for HVAC, IEC: Pn 200 kW, 363 A ( )

ABB

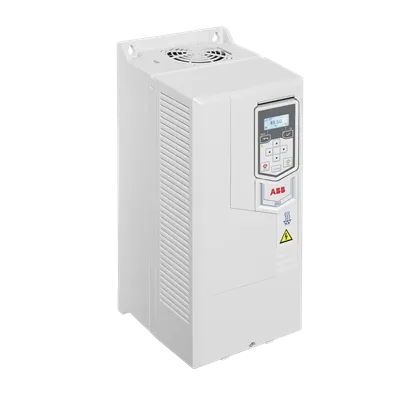

ACH531-01-033A-4+X1663

LV AC wall-mounted drive for HVAC, IEC: Pn 15 kW, 32 A ( )

ABB

ACH531-01-062A-4+X1663

LV AC wall-mounted drive for HVAC, IEC: Pn 30 kW, 62 A ( )

ABB

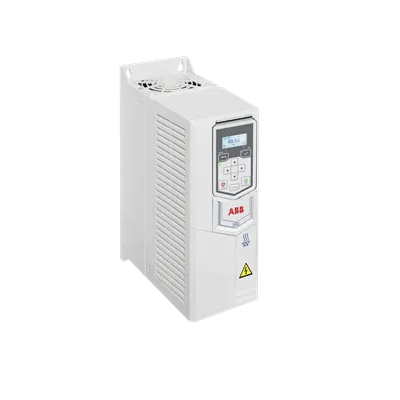

ACH531-01-07A3-4+X1663

LV AC wall-mounted drive for HVAC, IEC: Pn 3 kW, 7.2 A ( )

Compare Wall-mounted drive for HVAC

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product Net Depth / Length	Product Net Height	Output Current, Normal Use (In)	Output Power, Light-Overload Use (PLD)	Apparent Power Output
ACH580-01-023A-4+B056	9.4 in	21.49 in	23 A	15 Hp	19 kV·A
ACH580-01-03A9-6	9 in	18.62 in	—	—	—
ACH580-01-302A-4	16.2 in	37.6 in	—	—	251 kV·A
ACH580-01-012A-2	223.00 mm, 8.78 in	373.00 mm, 14.69 in	12 A	3.0 kW	4.8 kV·A
ACH580-01-143A-2	14.53 in	28.6 in	—	—	57 kV·A
ACH580-01-06A1-6+B056	9.4 in	21.49 in	6.1 A	5 Hp	—
ACH580-01-246A-4+B056	452.00 mm, 17.795 in	965.00 mm, 37.992 in	246 A	132 kW	170 kV·A
ACH580-01-04A7-2+B063+F253	11.05 in	20.55 in	4.7 A	0.75 kW	1.9 kV·A
ACH580-01-169A-4+B056	381.00 mm, 15.000 in	880.00 mm, 34.646 in	169 A	90 kW	117 kV·A
ACH580-01-293A-4+B056	452.00 mm, 17.795 in	965.00 mm, 37.992 in	293 A	160 kW	203 kV·A
ACH580-01-273A-2+B056	17.8 in	44.23 in	273 A	100 Hp	109 kV·A
ACH580-01-022A-6+B056	9.32 in	20.93 in	22 A	20 Hp	—
ACH580-01-052A-4+B056	10.44 in	27.03 in	52 A	40 Hp	43 kV·A
ACH580-01-027A-4+B056	9.32 in	20.93 in	27 A	20 Hp	22 kV·A
ACH580-01-124A-4+B056	16.4 in	34.81 in	124 A	100 Hp	103 kV·A
ACH580-01-096A-4+B056	12.59 in	32.01 in	96 A	75 Hp	80 kV·A
ACH580-01-065A-4+B056	10.44 in	27.03 in	65 A	50 Hp	54 kV·A
ACH580-01-044A-4+B056	9.32 in	20.93 in	44 A	30 Hp	37 kV·A
ACH580-01-034A-4+B056	9.32 in	20.93 in	34 A	25 Hp	28 kV·A
ACH580-01-014A-4+B056	9.4 in	21.49 in	14 A	10 Hp	12 kV·A
ACH580-01-363A-4	418 mm	955 mm	363 A	200 kW	—
ACH531-01-033A-4+X1663	228 mm	490 mm	32 A	15 kW	—
ACH531-01-062A-4+X1663	257 mm	636 mm	62 A	30 kW	—
ACH531-01-07A3-4+X1663	223 mm	331 mm	7.2 A	3 kW	—

Common to all listed parts

Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Number of Phases	3-phase
