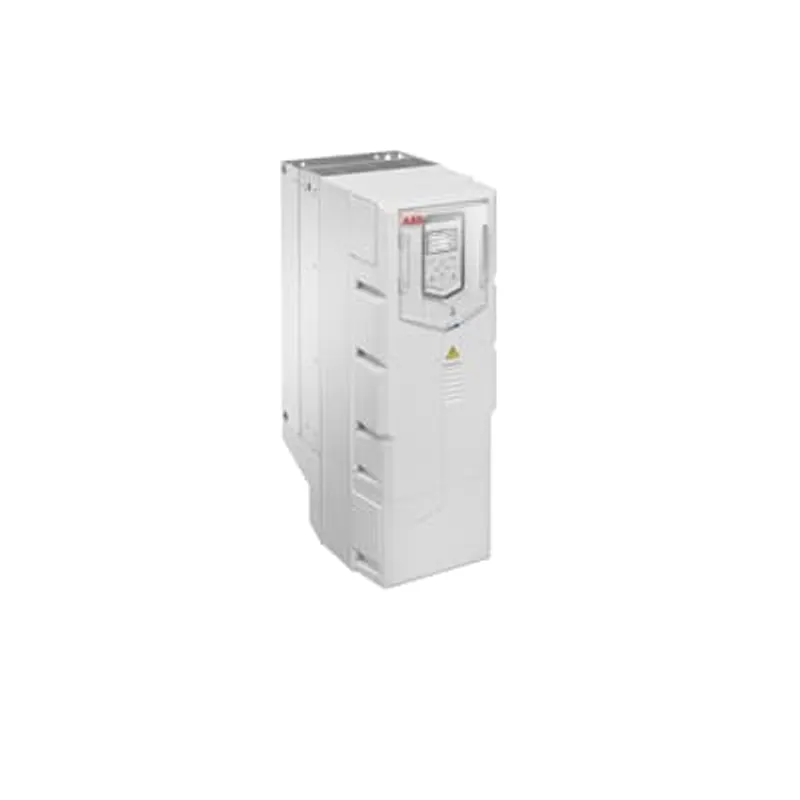

ABB ACH580-01-145A-4+B056

LV AC wall-mounted drive for HVAC, IEC: Pn 75 kW, 145 A, 400 V, UL: Pld 100 Hp, 124 A ( )

MPN
ACH580-01-145A-4+B056
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACH580-01-145A-4+B056?

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air- handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.

Specifications

Specifications

Customs Tariff Number85044086
HS Code850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice DescriptionACH580-01-145A-4+B056 PN: 75 kW, IN: 145 A
Made To OrderYes
Minimum Order Quantity1 piece
Order Multiple1 piece
Quote OnlyNo
Selling Unit of Measurepiece
Product Net Weight43 kg, 94.799 lb
Product Net Depth / Length380.00 mm, 14.961 in
Product Net Height727 mm, 28.622 in
Product Net Width252.00 mm, 9.921 in
Package Level 1 Depth / Length880.00 mm, 34.646 in
Package Level 1 Height580.00 mm, 22.835 in
Package Level 1 Width335.00 mm, 13.189 in
Package Level 1 Units1 case
Number of Phases3-phase
Degree of ProtectionIP55
Enclosure Type NEMAType12
Operating Humidity (RHamb)95
Multiple Battery InformationLithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f)47.5 ... 63 Hz
Frame SizeR6
Input Voltage (Uin)380 ... 480 V
Mounting TypeWall-mounted
Communication ProtocolBACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware InterfacesIndustrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
IncludesWith control unit, Without optical interface, With PC connection
Analog Inputs2
Analog Outputs2
Number of Digital In/Outputs6/3
Output Current, Normal Use (In)145 A
Output Current, Light-Overload Use (ILD)138 A
Output Current, Heavy-Duty Use (IHD)105 A
Output Power, Normal Use (Pn)75 kW
Output Power, Light-Overload Use (PLD)75 kW
Output Power, Heavy-Duty Use (PHD)55 kW
Power Consumption (@Pcons)1960 W
Apparent Power Output100 kV·A
Efficiency LevelIE2
Standby Loss36 W
Temperature RatingMaximum 40 °C, Minimum -15 °C
Output Current, Heavy-Duty Use (UL)96 A
Output Current, Light-Overload Use (UL)124 A
Output Power, Light-Overload Use (UL)100 Hp
Declaration of Conformity - CEACS580, ACH580 and ACQ580 EU DoC
REACH Date20250905
REACH DeclarationREACH SVHC-250 declaration
REACH InformationTrue - contains substances > 0.1 mass percentage
RoHS Date20240508
RoHS DeclarationACS580, ACH580 and ACQ580 EU DoC
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPb9a3ab71-37fd-43f7-871e-9bf969163e13 Finland
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
ETIM 9EC001857 - Frequency converter =< 1 kV
UNSPSC39122001
