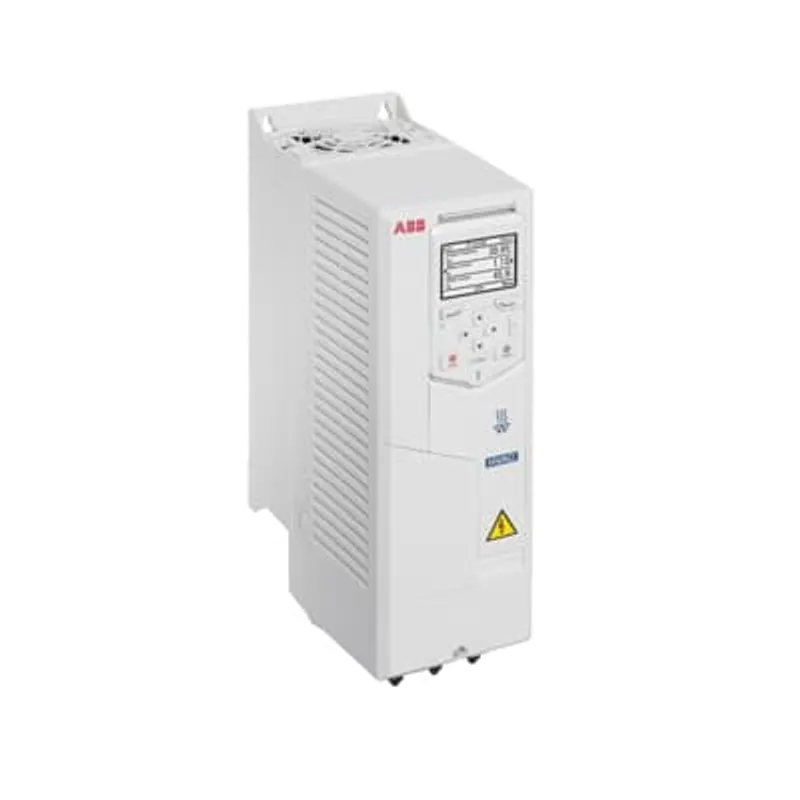

ABB ACH580-01-04A7-2

Q: When can ACH580-01-04A7-2 be shipped?

ACH580-01-04A7-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up ACH580-01-04A7-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for ACH580-01-04A7-2 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH580-01-04A7-2, subject to availability and destination.

LV AC wall-mounted drive for HVAC, IEC: Pn 0.75 kW, 4.7 A, 230 V ( )

MPN: ACH580-01-04A7-2
Category: Wall-mounted drive for HVAC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ACH580-01-04A7-2?

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air- handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.

Specifications

Customs Tariff Number	85044085
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACH580-01-04A7-2 PN: 0.75 kW, IN: 4.7 A
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	4.6 kg, 10.141 lb
Product Net Depth / Length	223.00 mm, 8.78 in
Product Net Height	373.00 mm, 14.69 in
Product Net Width	125.00 mm, 4.92 in
Package Level 1 Depth / Length	225.00 mm, 8.858 in
Package Level 1 Height	370.00 mm, 14.567 in
Package Level 1 Width	526.00 mm, 20.709 in
Package Level 1 Units	1 carton
Number of Phases	3-phase
Degree of Protection	IP21
Enclosure Type NEMA	Type1
Altitude	1000 m
Operating Humidity (RHamb)	95
Sound dB (A)	59 dB(A)
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency (f)	47.5 ... 63 Hz
Frame Size	R1
Input Voltage (Uin)	200 ... 240 V
Mounting Type	Wall-mounted
Communication Protocol	BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes	Control unit, PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 3
Output Current, Normal Use (In)	4.7 A
Output Current, Light-Overload Use (ILD)	4.6 A
Output Current, Heavy-Duty Use (IHD)	3.5 A
Output Power, Normal Use (Pn)	0.75 kW
Output Power, Light-Overload Use (PLD)	0.75 kW
Output Power, Heavy-Duty Use (PHD)	0.6 kW
Power Consumption (@Pcons)	53 W
Apparent Power Output	1.9 kV·A
Efficiency Level	IE2
Standby Loss	13 W
Temperature Rating	Maximum 40 °C, Minimum -15 °C
Declaration of Conformity - CE	ACS580, ACH580 and ACQ580 EU DoC
REACH Date	20250905
REACH Declaration	REACH SVHC-250 declaration
REACH Information	True - contains substances > 0.1 mass percentage
RoHS Date	20240508
RoHS Declaration	ACS580, ACH580 and ACQ580 EU DoC
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Global Warming Potential GWP Total	Distribution (Module A4) 1 kg CO₂ eq, End of Life (Modules C1-C4) 10 kg CO₂ eq, Installation (Module A5) 4 kg CO₂ eq, Manufacturing (Modules A1-A3) 113 kg CO₂ eq, Total 824 kg CO₂ eq, Use (Modules B1-B7) 696 kg CO₂ eq
SCIP	8105d671-49fa-4c1c-836d-baf56982886a Finland
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9	EC001857 - Frequency converter =< 1 kV
UNSPSC	39122001
