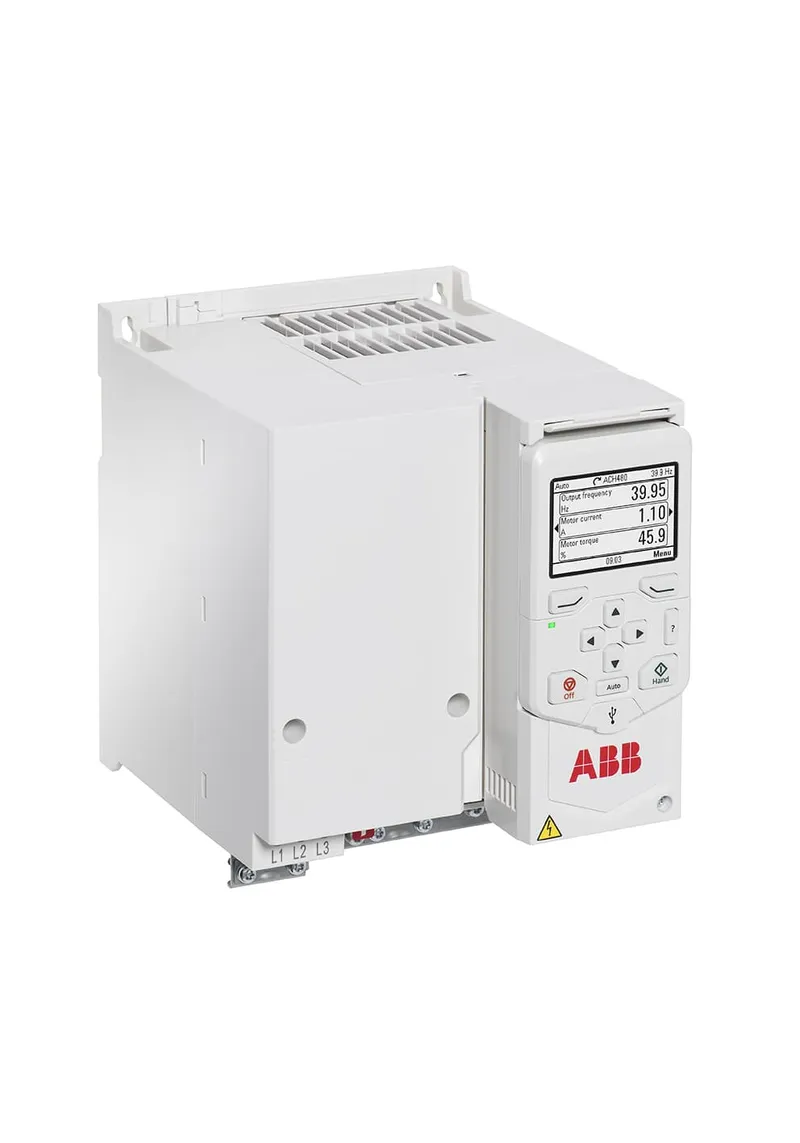

ABB ACH480-04-25A0-2

LV AC drive module for HVAC, IEC: Pn 5.5 kW, 25 A, 230 V ( )

MPN: ACH480-04-25A0-2
Category: ACH480

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB ACH480-04-25A0-2?

The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.

Specifications

Ordering

Customs Tariff Number	85044087
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACH480-04-25A0-2 PN: 5.5 kW, IN: 25 A kW
Made To Order	Yes
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece

Dimensions

Product Net Weight	2.5 kg, 5.5 lb kg
Product Net Depth / Length	208 mm, 8.19 in mm
Product Net Height	220 mm, 8.661 in mm
Product Net Width	172 mm, 6.77 in mm
Package Level 1 Depth / Length	284 mm, 11.18 in mm
Package Level 1 Height	273 mm, 10.75 in mm
Package Level 1 Width	250 mm, 9.84 in mm
Package Level 1 Units	1 carton

Technical

Number of Phases	3-phase
Degree of Protection	IP20
Enclosure Type NEMA	Open Type
Sound dB (A)	65.80 dB(A) A
Multiple Battery Information	Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g V
Frequency (f)	47.5 ... 63 Hz Hz
Frame Size	R3
Input Voltage (Uin)	200 ... 240 V V
Mounting Type	Module
Communication Protocol	BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP IP
Number of Hardware Interfaces	Industrial Ethernet 0, Other 2, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes	Control unit, PC connection
Analog Inputs	2
Analog Outputs	2
Number of Digital In/Outputs	6 / 3
Output Current, Normal Use (In)	25 A A
Output Current, Light-Overload Use (ILD)	24.2 A A
Output Current, Heavy-Duty Use (IHD)	17.5 A A
Output Power, Normal Use (Pn)	5.5 kW kW
Output Power, Light-Overload Use (PLD)	5.5 kW kW
Output Power, Heavy-Duty Use (PHD)	4.0 kW kW
Apparent Power Output	17.3 kV·A A
Efficiency Level	IE2
Standby Loss	21 W W
Temperature Rating	Maximum 50 °C

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm
