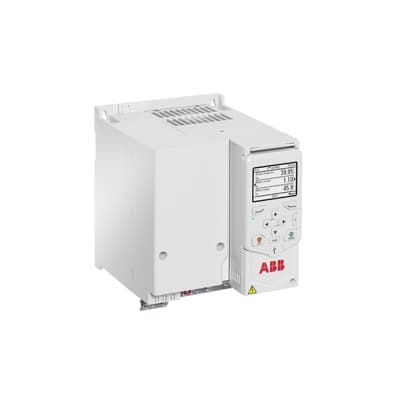

ABB ACH480-04-018A-4
LV AC drive module for HVAC, IEC: Pn 7.5 kW, 17 A, 400 V ( )
- MPN
- ACH480-04-018A-4
- Category
- Drive module for HVAC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB ACH480-04-018A-4?
The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Specifications
Specifications
| Customs Tariff Number | 850440 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH480-04-018A-4 PN: 7.5 kW, IN: 17 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 2.5 kg, 5.5 lb |
| Product Net Depth / Length | 208 mm, 8.19 in |
| Product Net Height | 220 mm, 8.661 in |
| Product Net Width | 172 mm, 6.77 in |
| Package Level 1 Depth / Length | 284 mm, 11.18 in |
| Package Level 1 Height | 273 mm, 10.75 in |
| Package Level 1 Width | 250 mm, 9.84 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Sound dB (A) | 65.80 dB(A) |
| Multiple Battery Information | Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 |
| Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Module |
| Communication Protocol | BACNET, CAN, DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 17 A |
| Output Current, Light-Overload Use (ILD) | 16.2 A |
| Output Current, Heavy-Duty Use (IHD) | 12.6 A |
| Output Power, Normal Use (Pn) | 7.5 kW |
| Output Power, Light-Overload Use (PLD) | 7.5 kW |
| Output Power, Heavy-Duty Use (PHD) | 5.5 kW |
| Power Consumption (@Pcons) | 259 W |
| Apparent Power Output | 12 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 25 W |
| Temperature Rating | Maximum 50 °C |
| Output Current, Heavy-Duty Use (UL) | 11.0 A |
| Output Current, Light-Overload Use (UL) | 14.0 A |
| Output Current, Normal Use (UL) | 14 A |
| Declaration of Conformity - CE | ACS480-04 and ACH480-04 EU Declaration of Conformity |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20230315 |
| RoHS Declaration | ACS480-04 and ACH480-04 EU Declaration of Conformity |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d47e4459-83a3-4590-a72e-d9674f7109ad Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
ACH480-04-018A-4: frequently asked questions
When can ACH480-04-018A-4 be shipped?
ACH480-04-018A-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH480-04-018A-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH480-04-018A-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH480-04-018A-4, subject to availability and destination.
