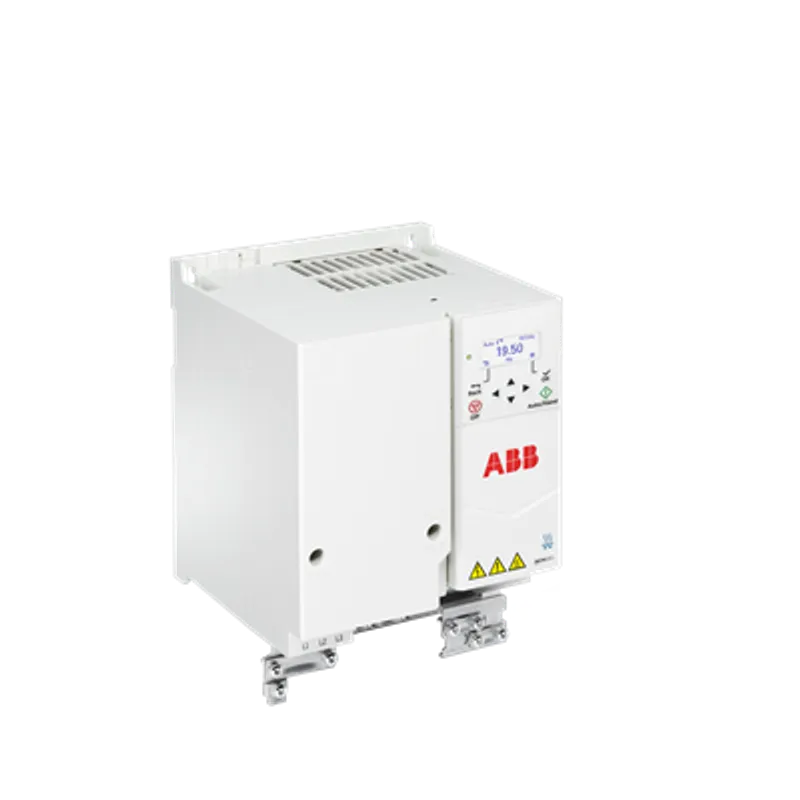

ABB ACH180-04S-25A0-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 04 - Micro Drive Module for HVAC |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.3 kg |
Shipping & availability
When can ACH180-04S-25A0-2 be shipped?
ACH180-04S-25A0-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACH180-04S-25A0-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACH180-04S-25A0-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACH180-04S-25A0-2, subject to availability and destination.
The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Specifications
Specifications
| Customs Tariff Number | 85044086 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACH180-04S-25A0-2 PN: 5.5 kW, IN: 25 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 3.30 kg, 7.28 lb |
| Product Net Depth / Length | 174 mm, 6.850 in |
| Product Net Height | 241 mm, 9.488 in |
| Product Net Width | 170 mm, 6.693 in |
| Package Level 1 Depth / Length | 248 mm, 9.764 in |
| Package Level 1 Height | 273 mm, 10.748 in |
| Package Level 1 Width | 250 mm, 9.843 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type |
| Altitude | 2000 m |
| Power Factor | 0.98 |
| Sound dB (A) | 66.00 dB(A) |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 |
| Input Voltage (Uin) | 200 ... 240 V |
| Mounting Type | Module |
| Communication Protocol | BACNET, MODBUS, Other Bus Systems |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 0, Parallel 0, PROFINET 0, RS-232 0, RS-422 0, RS-485 2, Serial TTY 0, USB 0 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Number of Digital In/Outputs | 4 / 2 |
| Output Current, Normal Use (In) | 25.0 A |
| Output Current, Light-Overload Use (ILD) | 24.2 A |
| Output Current, Heavy-Duty Use (IHD) | 16.7 A |
| Output Power, Normal Use (Pn) | 5.5 kW |
| Output Power, Light-Overload Use (PLD) | 5.5 kW |
| Output Power, Heavy-Duty Use (PHD) | 4.0 kW |
| Apparent Power Output | 10 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 24 W |
| Temperature Rating | Maximum 60 °C, Minimum -10 °C |
| Output Current, Heavy-Duty Use (UL) | 17.5 A |
| Output Current, Light-Overload Use (UL) | 24.2 A |
| Output Current, Normal Use (UL) | 24.2 A |
| Output Power, Heavy-Duty Use (UL) | 5.0 Hp |
| Output Power, Light-Overload Use (UL) | 7.5 Hp |
| Output Power, Normal Use (UL) | 7.5 Hp |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240110 |
| RoHS Declaration | ACH180 EU Declaration of Conformity |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0101cb50-bd6b-411c-8e92-6d6faced1f43 Finland |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
