ABB RL1209A

.5HP,2850//3450RPM,1PH,50//60HZ,48

MPN
RL1209A
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

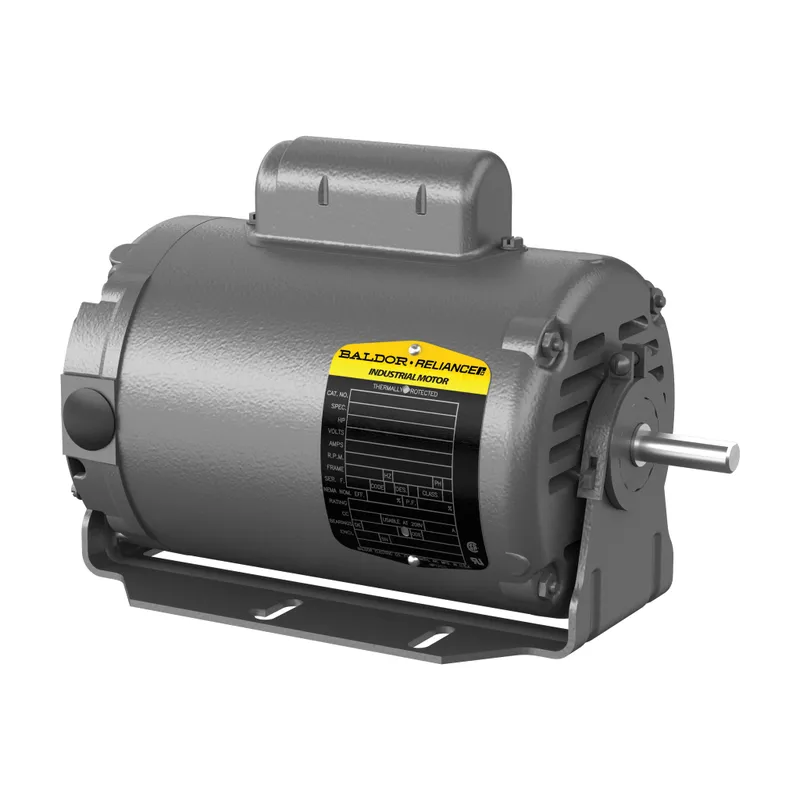

What is the ABB RL1209A?

Fan and Blower 0.5 Hp 110 V (RL1209A)

Specifications

Ordering

Catalog NumberRL1209A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85013100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt
Insulation ClassB
NEMA Design CodeN
Number of Phases1-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor69 %
Rated Efficiency74 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeResilient Mount
Enclosure TypeODP
Frame MaterialSteel
Motor Frame Size48
Motor Base TypeResilient
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height9.375 in
Product Net Weight27 lb
Product Net Width10.813 in
Dimension Diagram34LYK014

Certificates and Declarations

Certification AgencyCURUS, UR
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor

RL1209A: frequently asked questions

When can RL1209A be shipped?

RL1209A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RL1209A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RL1209A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RL1209A, subject to availability and destination.
