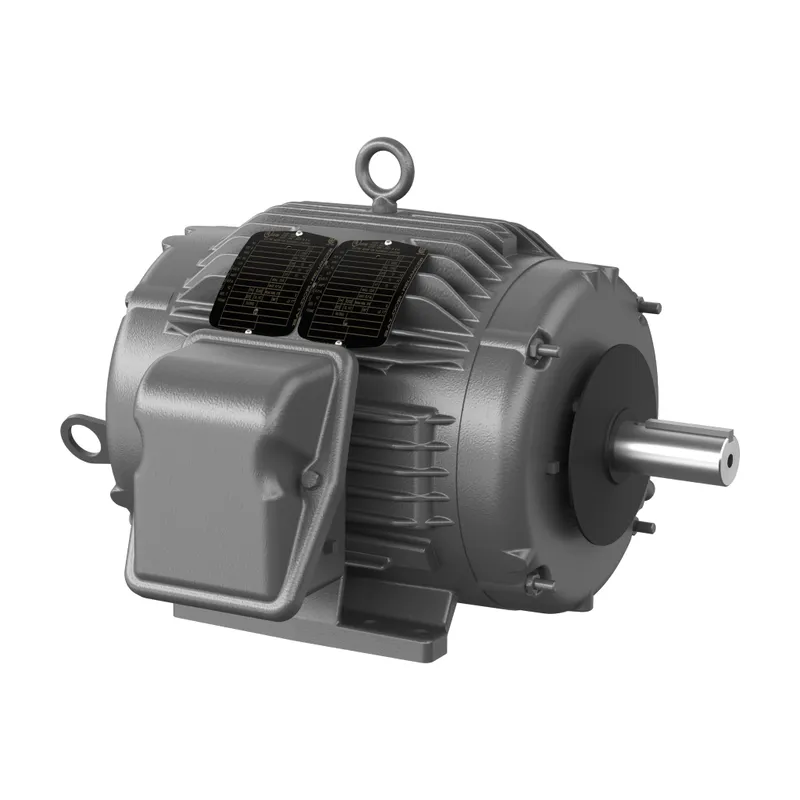

ABB ECTM3768T

5 AIR OVERHP,1160RPM,3PH,60HZ,215T

MPN
ECTM3768T
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ECTM3768T?

Chiller/Cooling Tower 5 Hp 230 V (ECTM3768T)

Specifications

Ordering

Catalog NumberECTM3768T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE3, Not Regulated / Exempt, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor72 %
Rated Efficiency90.20 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power5 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEAO
Frame MaterialCast Iron
Motor Frame Size215T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height17.625 in
Product Net Weight227 lb
Product Net Width18.125 in
Dimension Diagram07LYN391

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1318 >> Heating and cooling system motor AC
ETIM 7EC001851 - Electric motor
