ABB 3GRP162548-BDG

MPN: 3GRP162548-BDG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

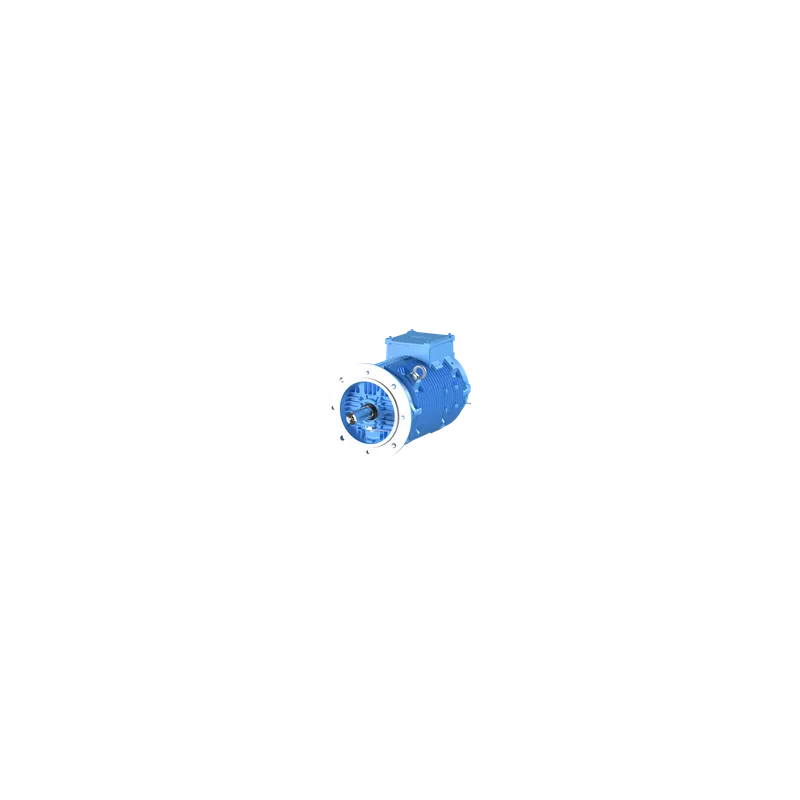

What is the ABB 3GRP162548-BDG?

M3RP 160LD 4

Specifications

Ordering

ABB Type Designation	M3RP 160LD 4
Invoice Description	M3RP 160LD 4
Product Name	3-Phase squirrel cage motor
Product Type	3RP0__M3RP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	7kW, 4 Poles, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GRP162548-BDG)
Short Description	7kW, 4P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	400 V V
Operating Frequency (fsw)	50.000 Hz Hz
Output Power	7 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC410
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 90.8 %, Partial Load (75%) 89.7 %, Partial Load (50%) 86.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	160
Bearing	6309/C3
Bearing NDE	6309/C3
IM Class	IMB5 IM3001
Terminator Box Location	N-End top

Dimensions

Product Net Weight	245 kg kg
Gross Weight	255 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
