ABB 3GRP132238-ADG

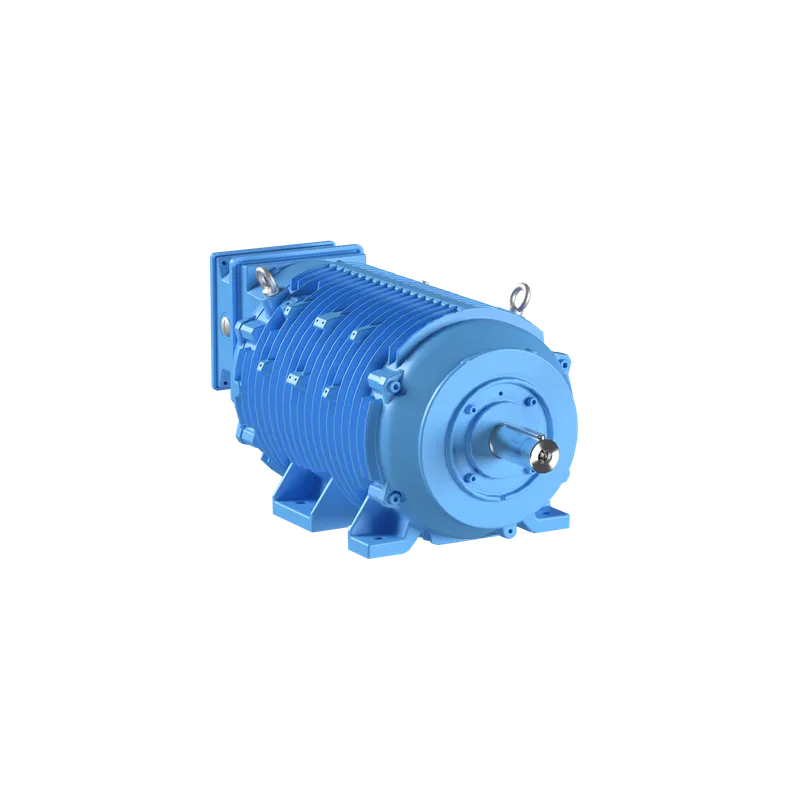

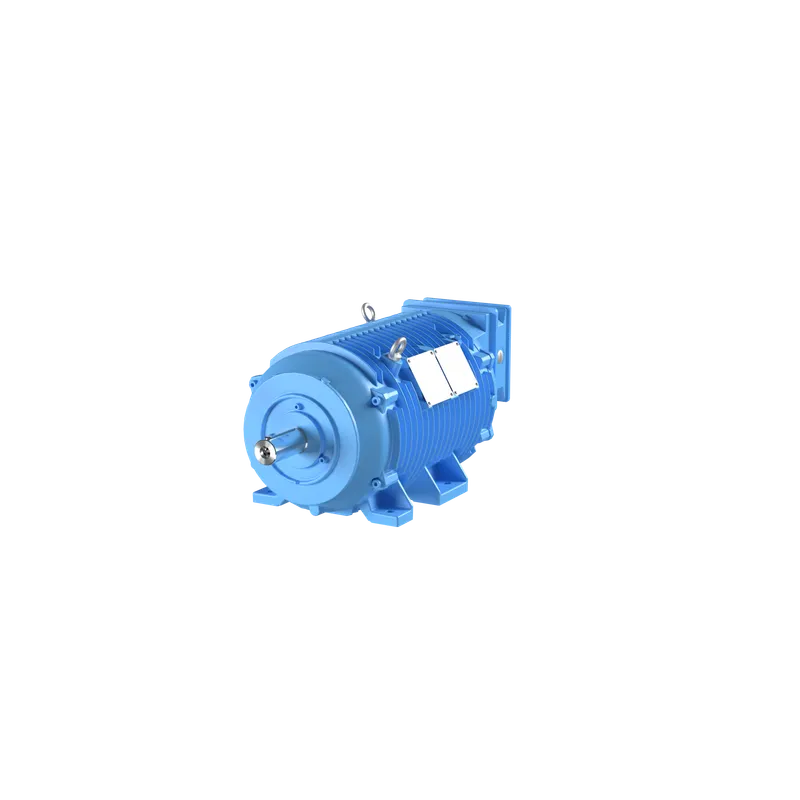

M3RP 132SMC 4

MPN: 3GRP132238-ADG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GRP132238-ADG?

M3RP 132SMC 4

Specifications

Ordering

ABB Type Designation	M3RP 132SMC 4
Invoice Description	M3RP 132SMC 4
Product Name	3-Phase squirrel cage motor
Product Type	3RP0__M3RP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	5.5kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GRP132238-ADG)
Short Description	5.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	400 V V
Operating Frequency (fsw)	50.000 Hz Hz
Output Power	5.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC410
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 91.6 %, Partial Load (75%) 92.6 %, Partial Load (50%) 92.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6308-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	N-End top

Dimensions

Product Net Depth / Length	639 mm mm
Product Net Height	274 mm mm
Product Net Width	276 mm mm
Product Net Weight	101 kg kg
Gross Weight	106 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
