Home / ABB / Flameproof IEC Low voltage motors / ABB 3GJP201410-BDG

ABB

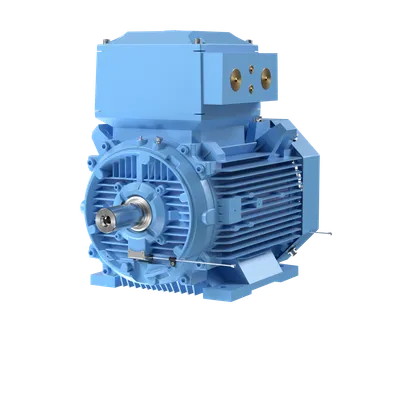

ABB 3GJP201410-BDG

M3JP 200MLA 2

MPN: 3GJP201410-BDG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP201410-BDG?

(3GJP201410-BDG)

Specifications

Ordering

ABB Type Designation	M3JP 200MLA 2
Invoice Description	M3JP 200MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	3JP2__M3JP_IE2_Flameproof_Ex_db_motor
Country or Territory of Origin	Finland, Poland
Customs Tariff Number	85015230

Electrical

Temperature Class Default	T4
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 92.8 %, Partial Load (75%) 93.3 %, Partial Load (50%) 92.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
EX-Protection	Exdb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	200
Bearing	6312/C3
Bearing NDE	6310/C3
IM Class	IMB5 IM3001
Terminator Box Location	Top

Dimensions

Product Net Weight	310 kg kg
Gross Weight	320 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC

26101100
