ABB 3GJP201410-ASK

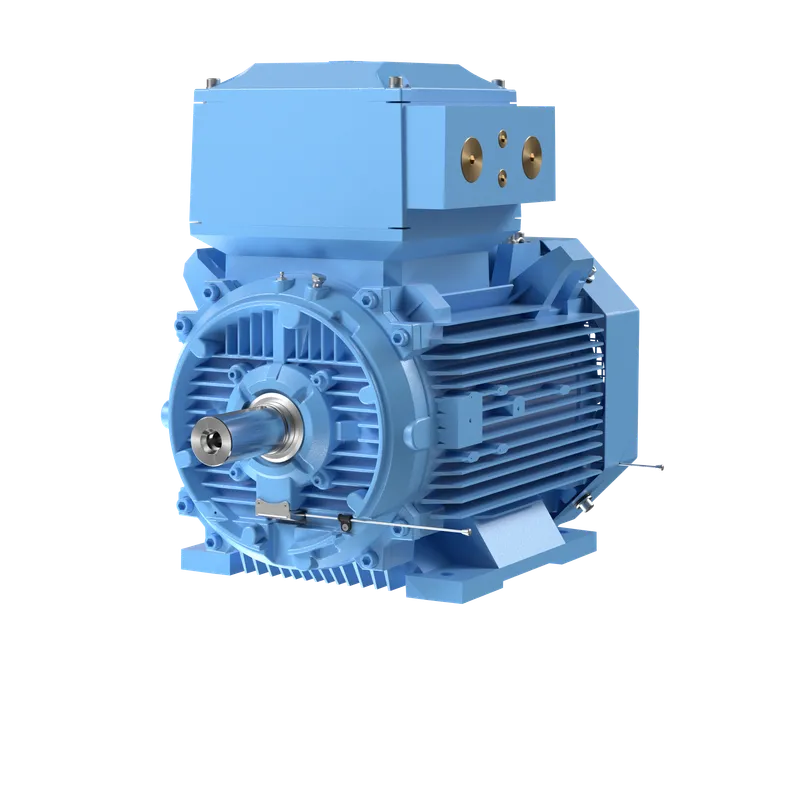

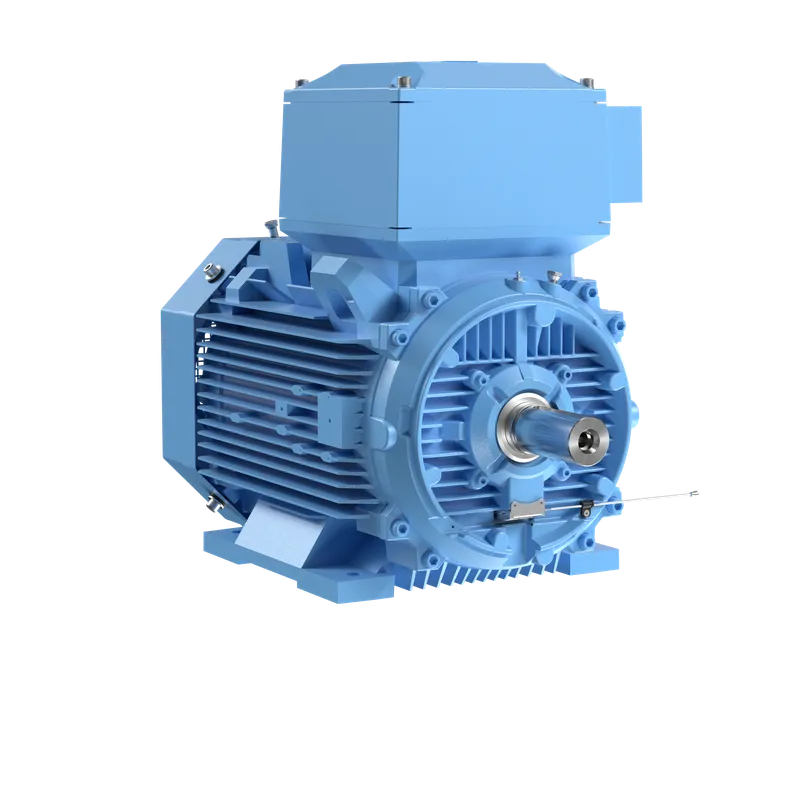

M3JP 200MLA 2
- MPN
- 3GJP201410-ASK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GJP201410-ASK?
Flameproof IE3 Premium Efficiency Motors, 30 kW, 400 V (3GJP201410-ASK)
Specifications
Ordering
| ABB Type Designation | M3JP 200MLA 2 |
| Invoice Description | M3JP 200MLA 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3JP3__M3JP_IE3_Flameproof_Ex_db_motor |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015230 |
| Medium Description | 30kW, 2 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GJP201410-ASK) |
| Short Description | 30kW, 2P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | T4 |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 30 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 93.3 %, Partial Load (75%) 93.7 %, Partial Load (50%) 93.4 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 93.5 %, Partial Load (75%) 93.5 %, Partial Load (50%) 92.7 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
| EX-Protection | Exdb |
| Gas Group | IIB |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 200 |
| Bearing | 6312/C3 |
| Bearing NDE | 6310/C3 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | Top |
Dimensions
| Product Net Depth / Length | 824 mm mm |
| Product Net Height | 616 mm mm |
| Product Net Width | 392 mm mm |
| Product Net Weight | 358 kg kg |
| Gross Weight | 368 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
