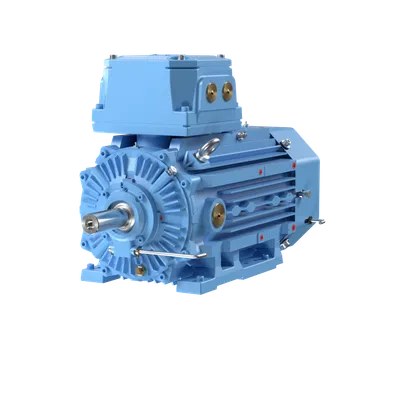

ABB 3GJP162410-AFL

M3JP 160MLA 4

MPN: 3GJP162410-AFL
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GJP162410-AFL?

Flameproof IE3 Premium Efficiency Motors, 11 kW, 500 V (3GJP162410-AFL)

Specifications

Ordering

ABB Type Designation	M3JP 160MLA 4
Invoice Description	M3JP 160MLA 4
Product Name	3-Phase squirrel cage motor
Product Type	5JP3__M3JP_IE3_Flameproof_Exd_motor
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	11kW, 4 Poles, Frame Size 160, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GJP162410-AFL)
Short Description	11kW, 4P, Frame Size 160, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	T4
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	11 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 91.4 %, Partial Load (75%) 91.8 %, Partial Load (50%) 91.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	F
EX-Protection	Exdb
Gas Group	IIB

Mechanical

Frame Material	Cast Iron
Frame Size	160
Bearing	6309/C3
Bearing NDE	6309/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	808 mm mm
Product Net Height	495 mm mm
Product Net Width	307 mm mm
Product Net Weight	240 kg kg
Gross Weight	250 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC

26101100
