ABB 3GET082726-HDB

MPN: 3GET082726-HDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GET082726-HDB?

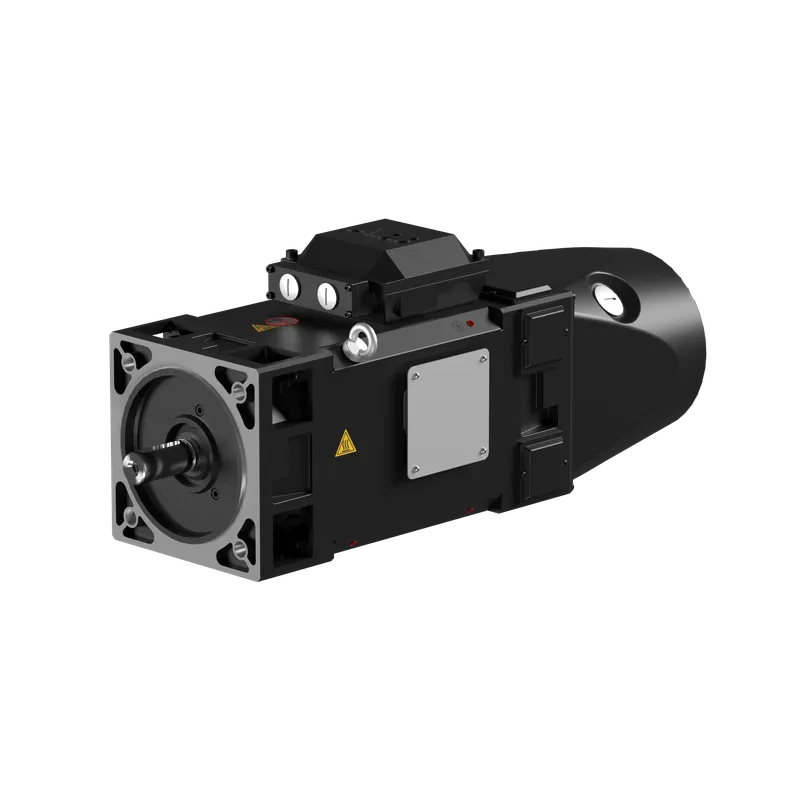

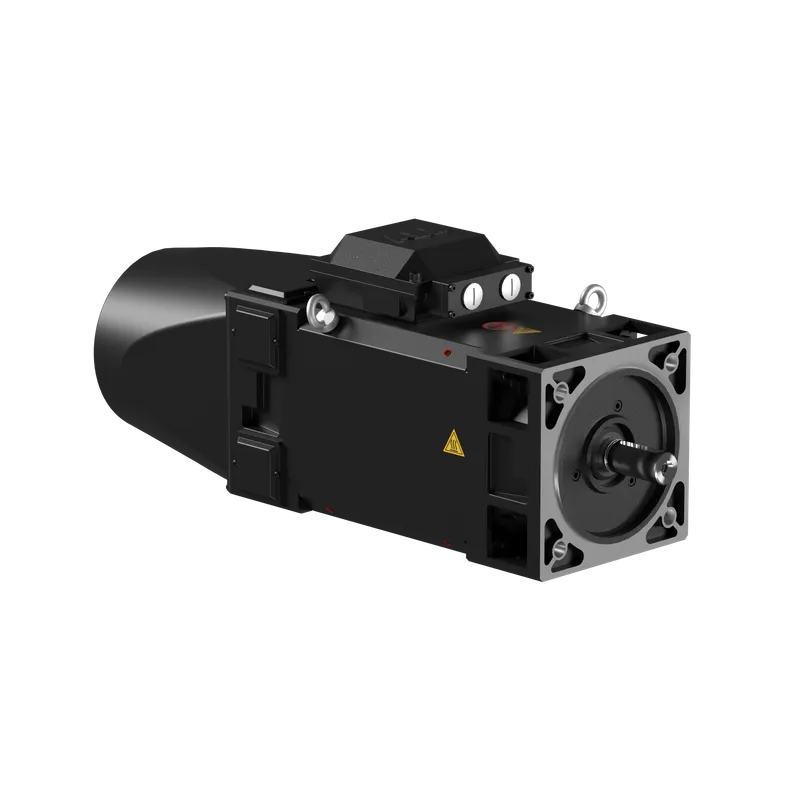

HDP Induction Motors, 4.5 kW, 400 V (3GET082726-HDB)

Specifications

Ordering

ABB Type Designation	M3ET 80B 4
Invoice Description	M3ET 80B 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	4.5kW, 4P, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GET082726-HDB)
Short Description	4.5kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	370 V V
Operating Frequency (fsw)	103.400 Hz Hz
Output Power	4.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 86.5 %, Partial Load (75%) 86.6 %, Partial Load (50%) 84.8 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 87.5 %, Partial Load (75%) 87.4 %, Partial Load (50%) 85.5 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	80
Bearing	6305-2Z
Bearing NDE	6305-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End top

Dimensions

Product Net Depth / Length	526 mm mm
Product Net Height	210 mm mm
Product Net Width	173 mm mm
Product Net Weight	23.9 kg kg
Gross Weight	26.9 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
