ABB 3GET082722-HDB

MPN: 3GET082722-HDB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GET082722-HDB?

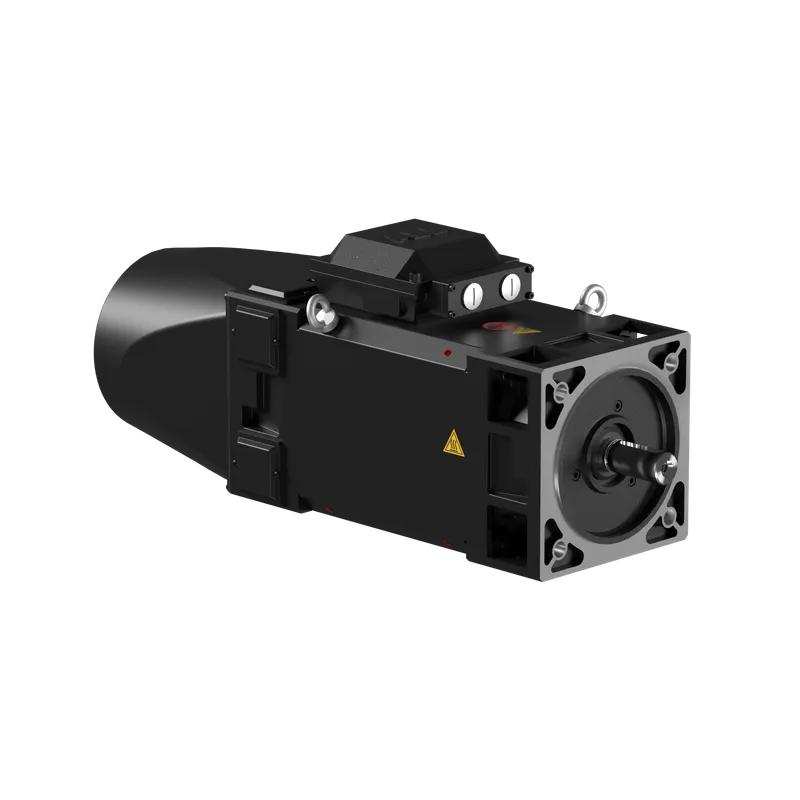

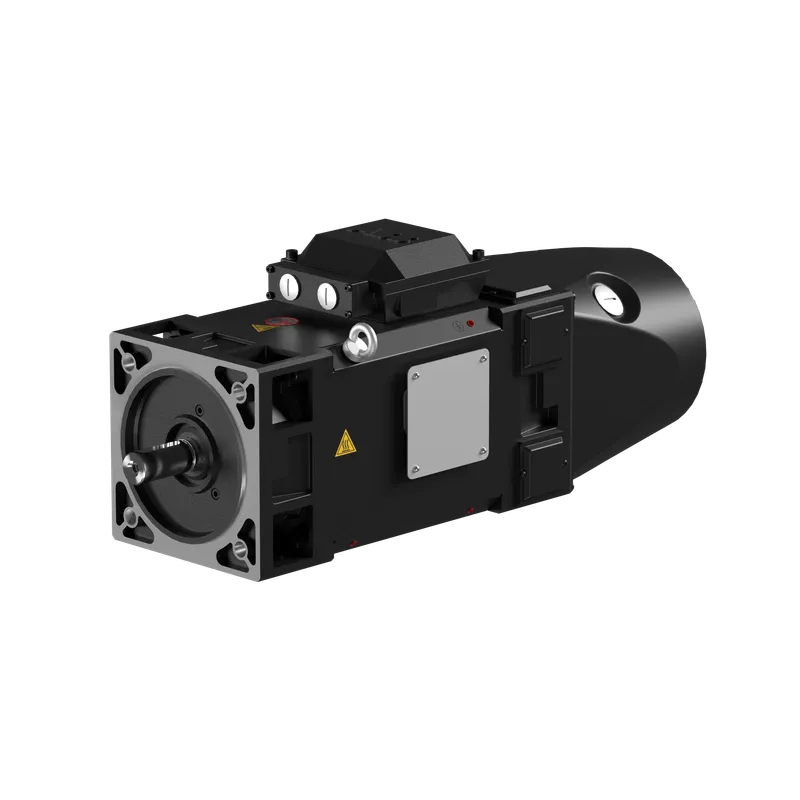

HDP Induction Motors, 2.7 kW, 400 V (3GET082722-HDB)

Specifications

Ordering

ABB Type Designation	M3ET 80B 4
Invoice Description	M3ET 80B 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland
Customs Tariff Number	85015220
Medium Description	2.7kW, 4P, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GET082722-HDB)
Short Description	2.7kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	355 V V
Operating Frequency (fsw)	53.500 Hz Hz
Output Power	2.7 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 79.6 %, Partial Load (75%) 81.0 %, Partial Load (50%) 79.7 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 81.9 %, Partial Load (75%) 82.9 %, Partial Load (50%) 81.6 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	80
Bearing	6305-2Z
Bearing NDE	6305-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End top

Dimensions

Product Net Depth / Length	526 mm mm
Product Net Height	210 mm mm
Product Net Width	173 mm mm
Product Net Weight	23.9 kg kg
Gross Weight	26.9 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GET082722-HDB: frequently asked questions

When can 3GET082722-HDB be shipped?

3GET082722-HDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GET082722-HDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GET082722-HDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GET082722-HDB, subject to availability and destination.
