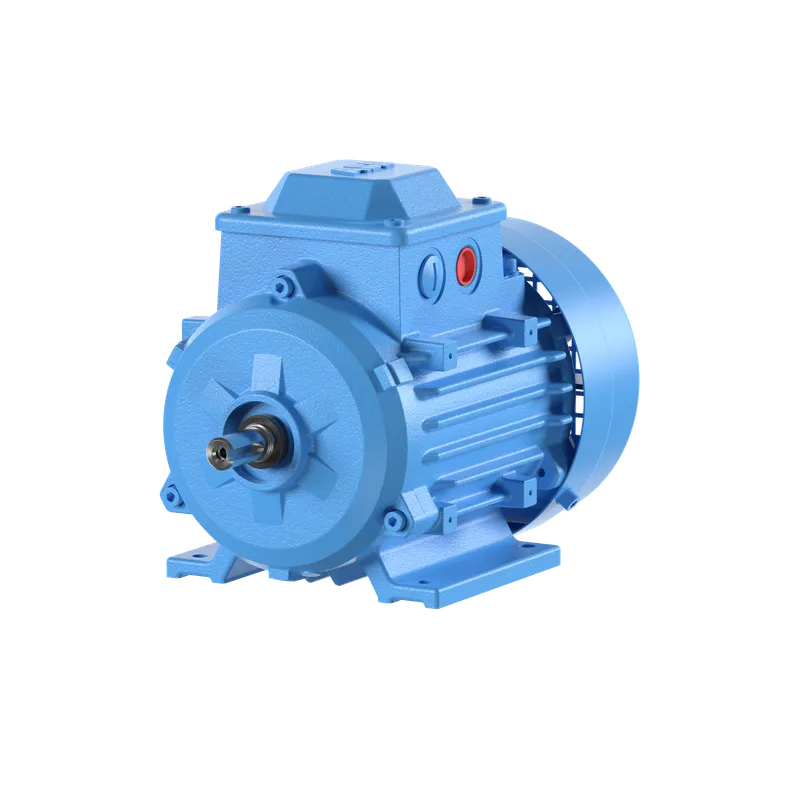

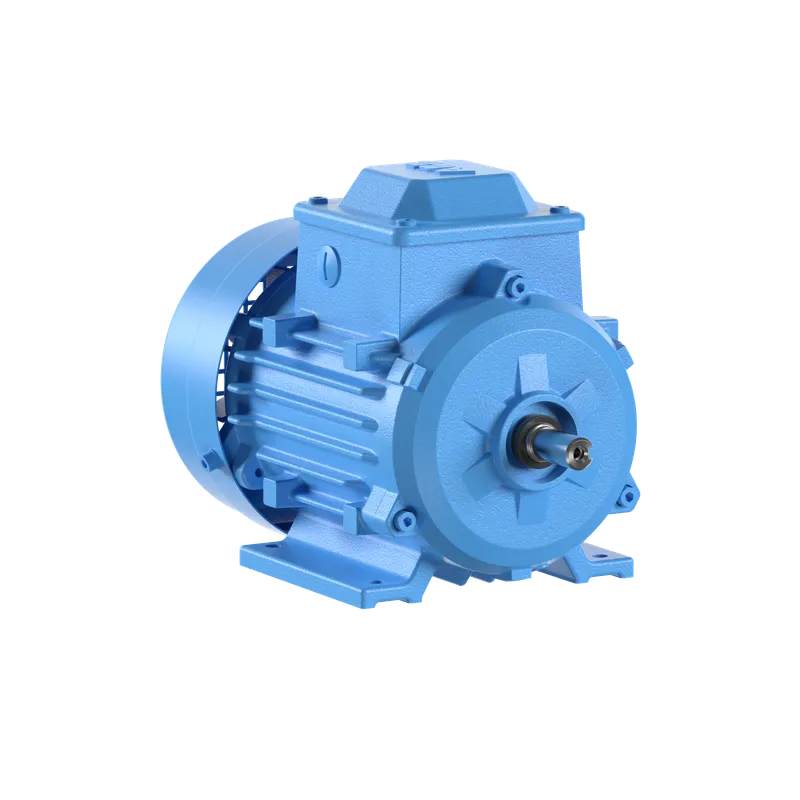

ABB 3GBA071310-ADC

M2BAX 71MA 2

MPN: 3GBA071310-ADC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA071310-ADC?

IE2 High Efficiency Cast Iron Motors, 0.37 kW, 400 V (3GBA071310-ADC)

Specifications

Ordering

ABB Type Designation	M2BAX 71MA 2
Invoice Description	M2BAX 71MA 2
Product Name	3-Phase squirrel cage motor
Product Type	EBA2__M2BAX_CI
Country or Territory of Origin	China, Poland
Customs Tariff Number	85015100
Stocked At (Warehouses)	Shanghai, China
Medium Description	0.37kW, 2 Poles, Frame Size 71, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA071310-ADC)
Short Description	0.37kW, 2P, Frame Size 71, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	0.37 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 69.5 %, Partial Load (75%) 67.4 %, Partial Load (50%) 62.7 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 72.0 %, Partial Load (75%) 68.4 %, Partial Load (50%) 62.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	71
Bearing	6203-2Z/C3
Bearing NDE	6202-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	257 mm mm
Product Net Height	175 mm mm
Product Net Width	147 mm mm
Product Net Weight	9 kg kg
Gross Weight	12 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
