ABB 3GAL132247-BSB

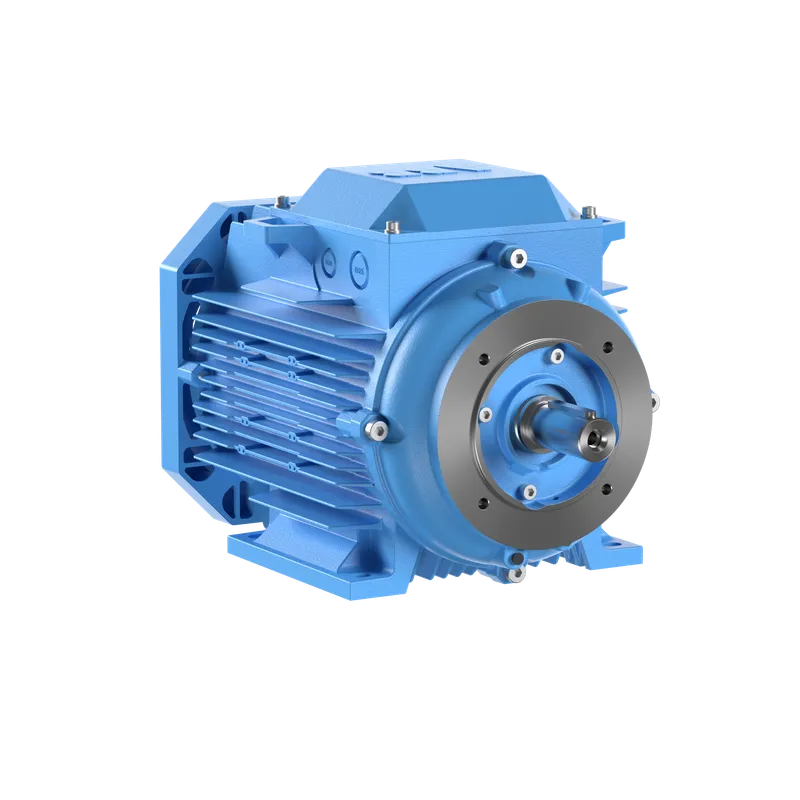

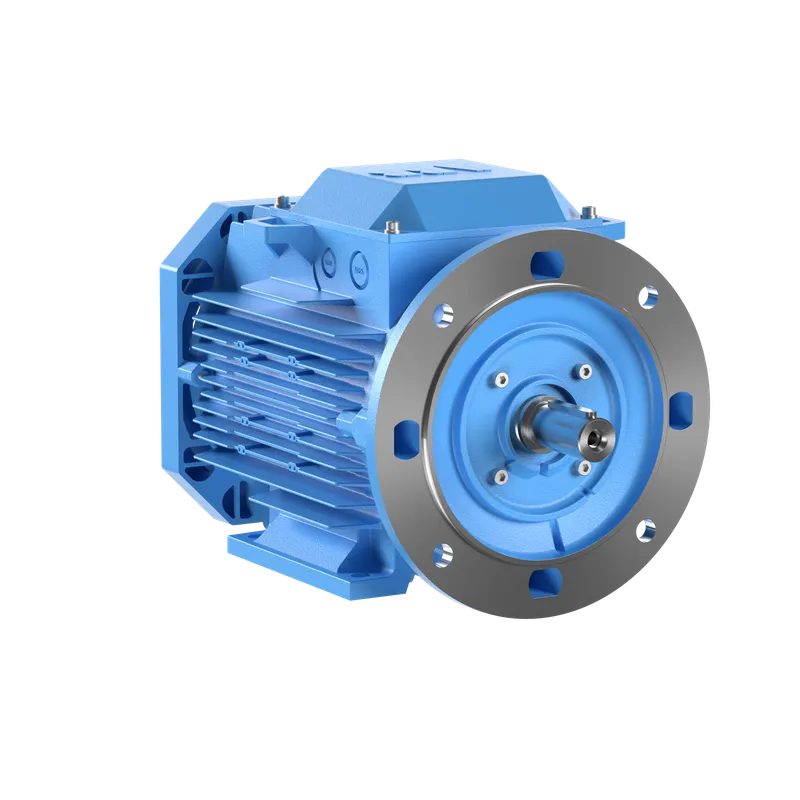

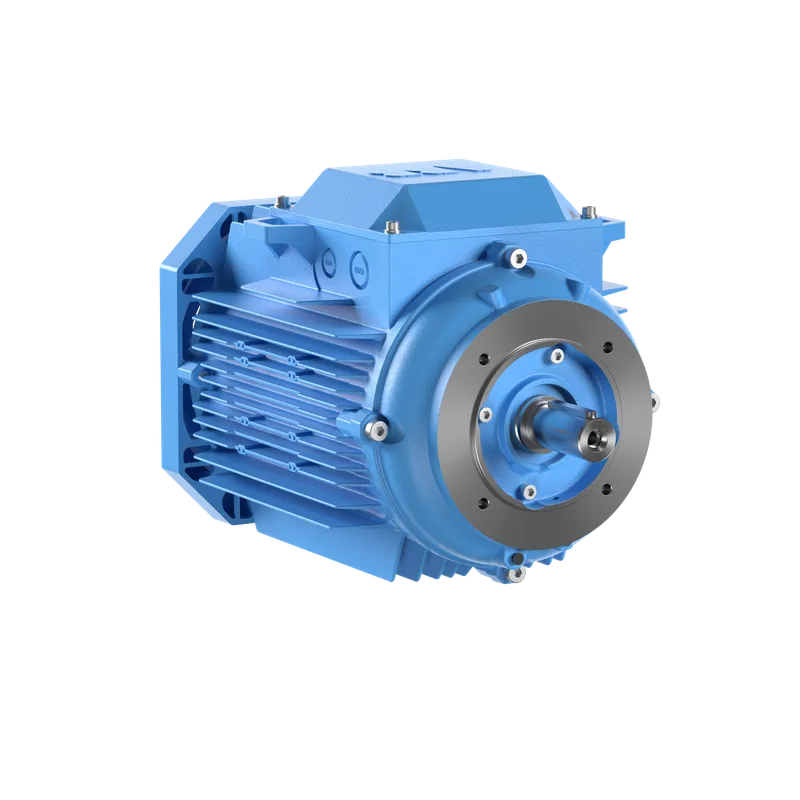

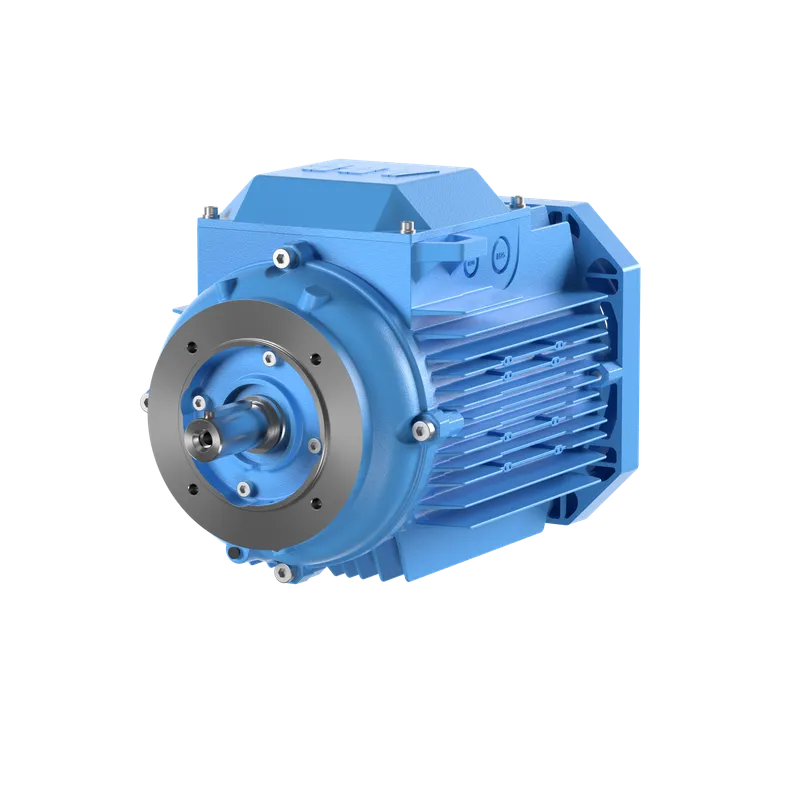

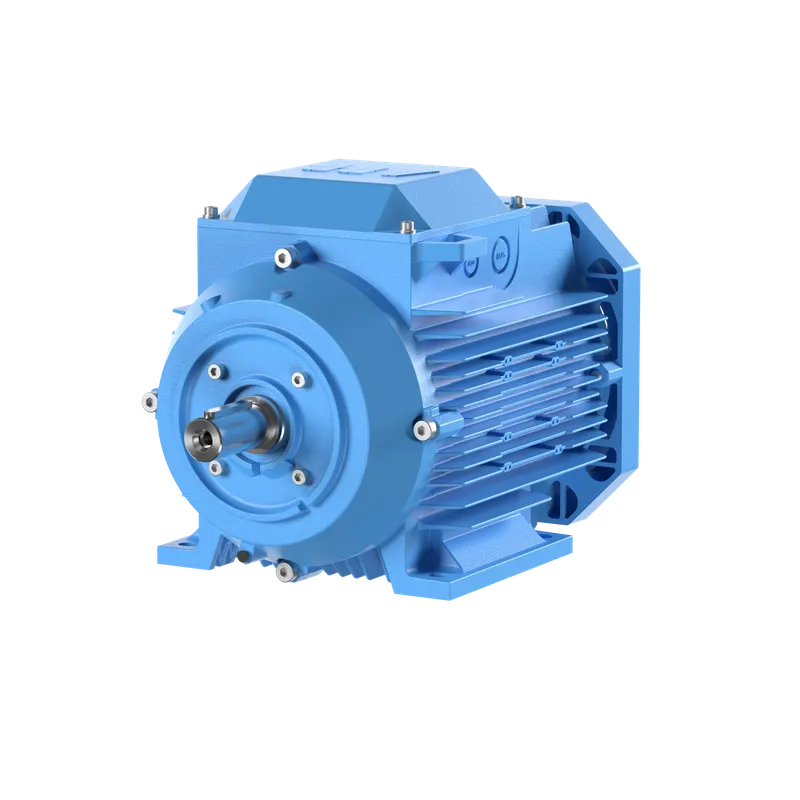

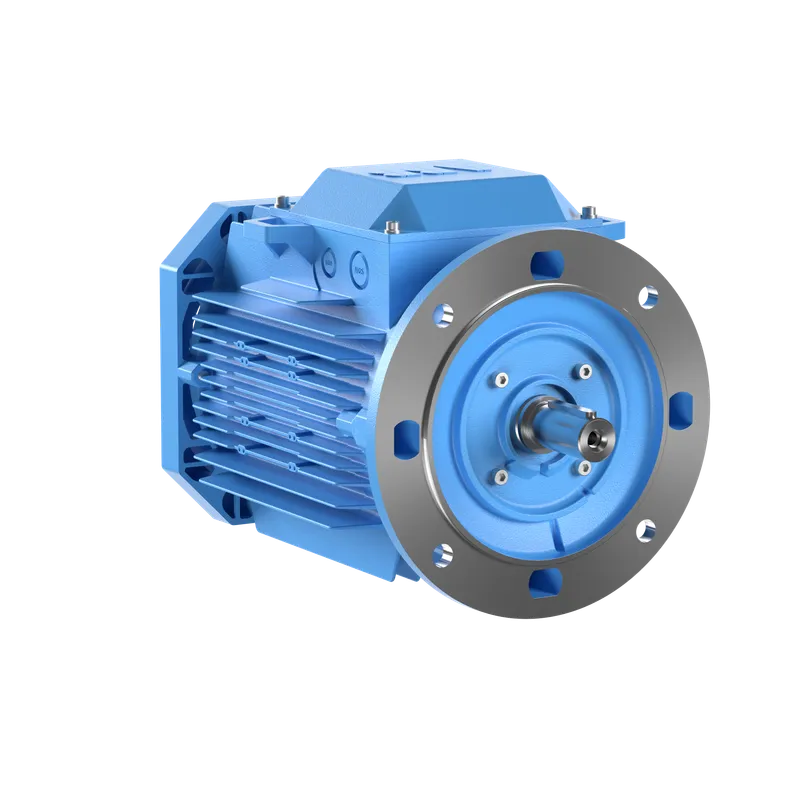

M3AL 132SMD 4

MPN: 3GAL132247-BSB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAL132247-BSB?

M3AL 132SMD 4

Specifications

Ordering

ABB Type Designation	M3AL 132SMD 4
Invoice Description	M3AL 132SMD 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3AL0__M3AL_SynRM_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Replaced Product ID (OLD)	3GAL132003-BSB

Electrical

Temperature Class Default	--
Motor Operational Voltage	380 V V
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 92.7 %, Partial Load (75%) 91.9 %, Partial Load (50%) 89.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	S

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	57 kg kg
Gross Weight	62 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
