ABB 3GAL132247-AFC

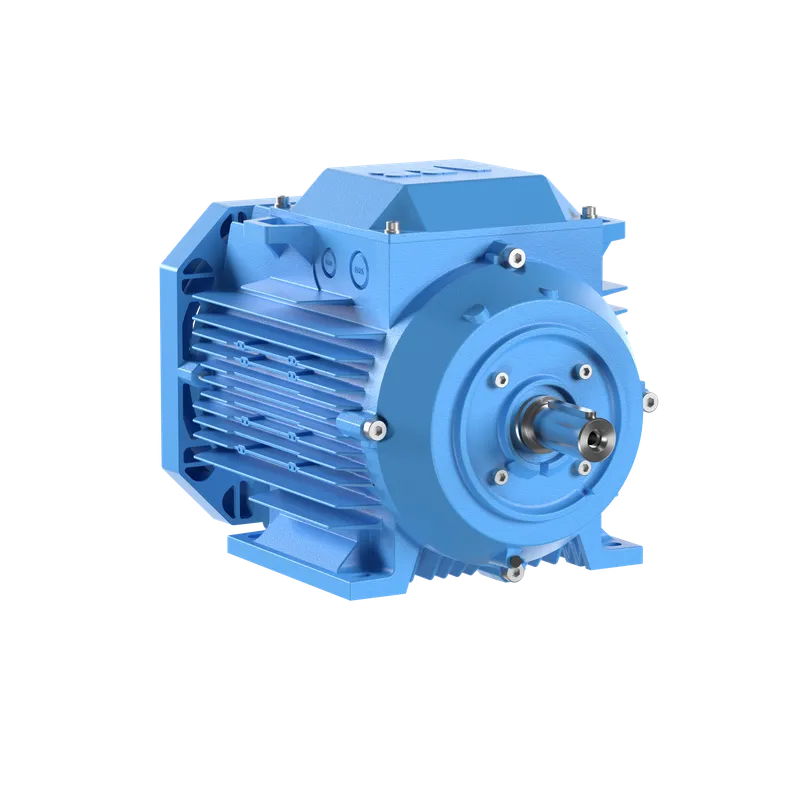

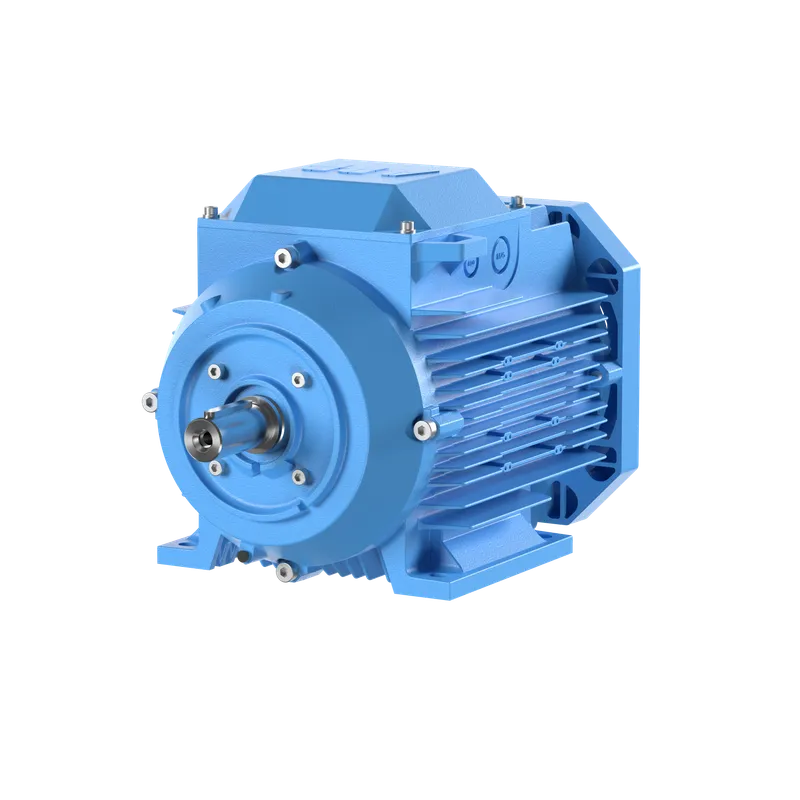

M3AL 132SMD 4

MPN: 3GAL132247-AFC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAL132247-AFC?

IE5 SynRM Motors, 15 kW, 500 V (3GAL132247-AFC)

Specifications

Ordering

ABB Type Designation	M3AL 132SMD 4
Invoice Description	M3AL 132SMD 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3AL4__M3AL_IE5_SynRM_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	15kW, 4 Poles, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAL132247-AFC)
Short Description	15kW, 4P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	470 V V
Operating Frequency (fsw)	100.000 Hz Hz
Output Power	15 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 94.1 %, Partial Load (75%) 93.6 %, Partial Load (50%) 91.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	F

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	487 mm mm
Product Net Height	296 mm mm
Product Net Width	262 mm mm
Product Net Weight	47 kg kg
Gross Weight	52 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
