What is the ABB 3GAA102444-AGE?

(3GAA102444-AGE)

Specifications

Ordering

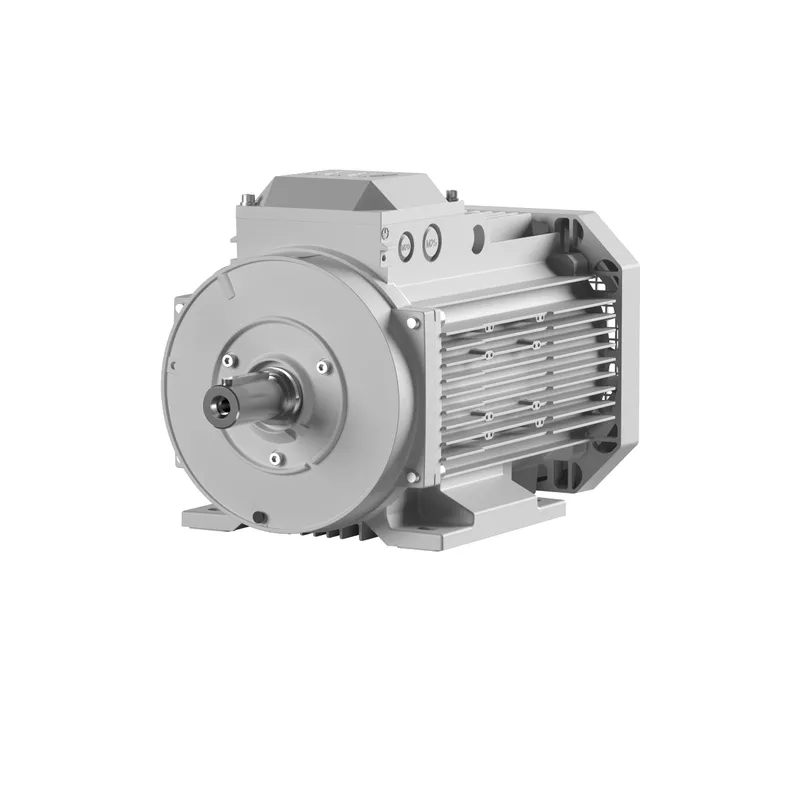

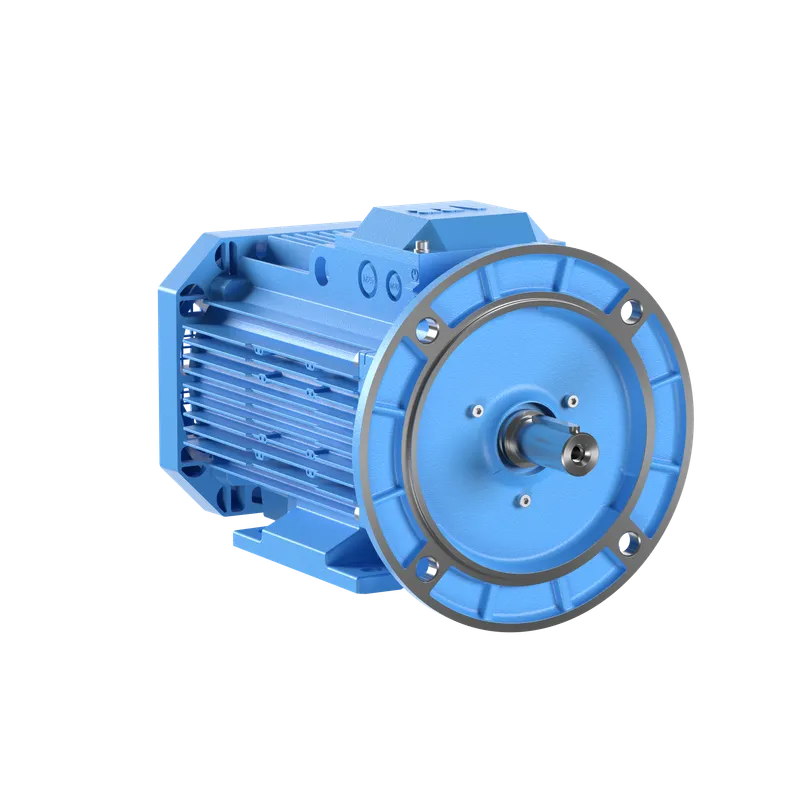

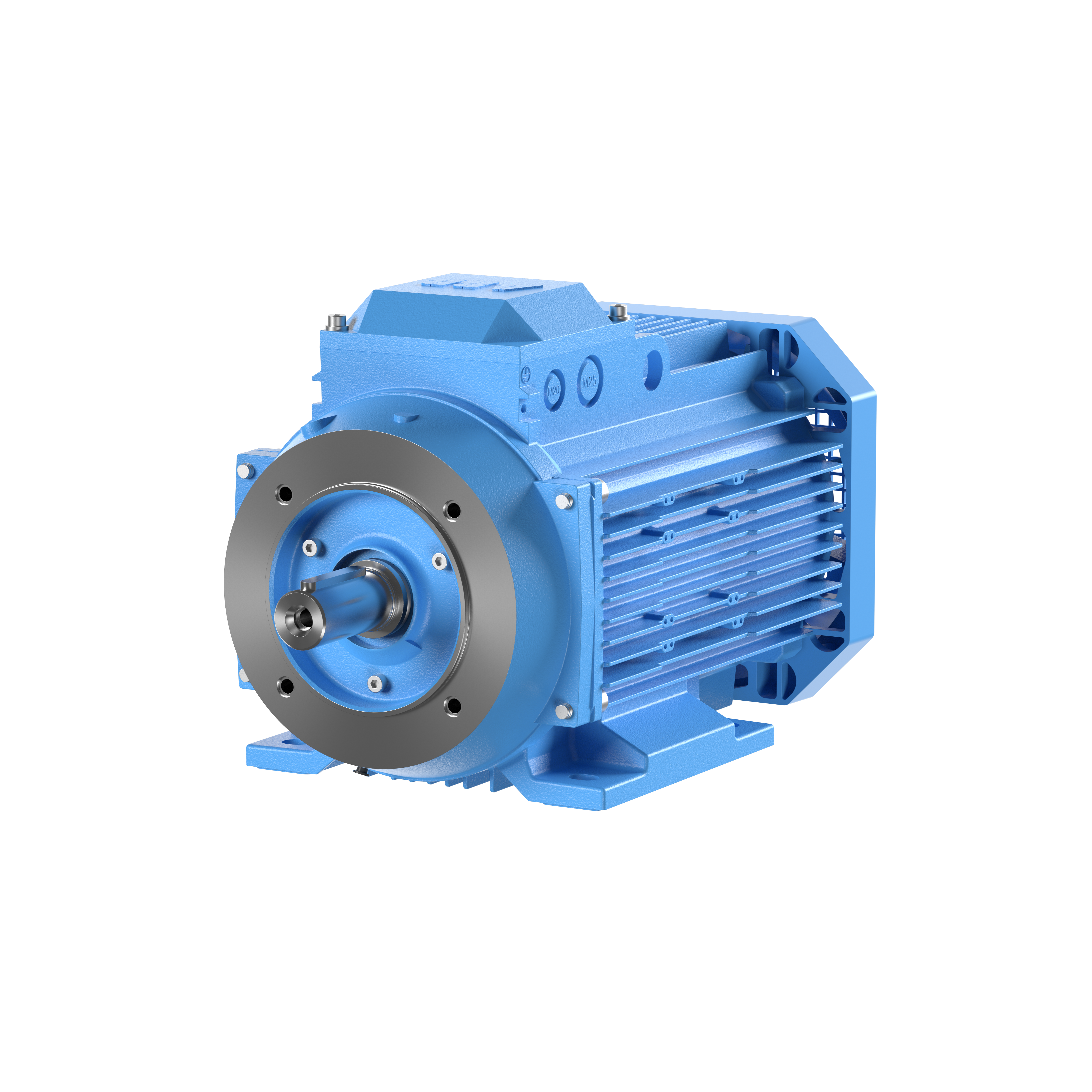

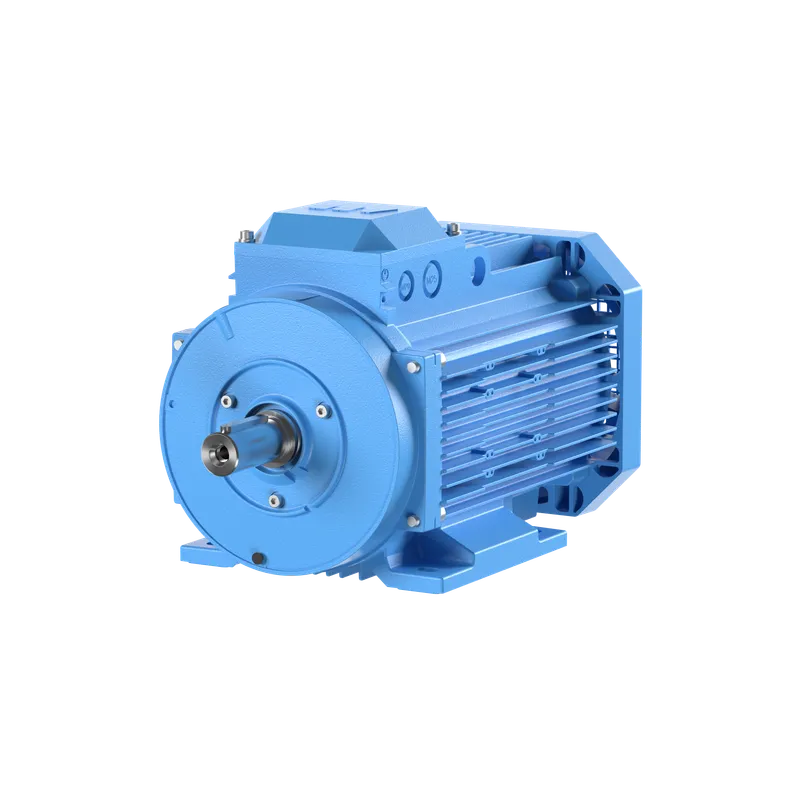

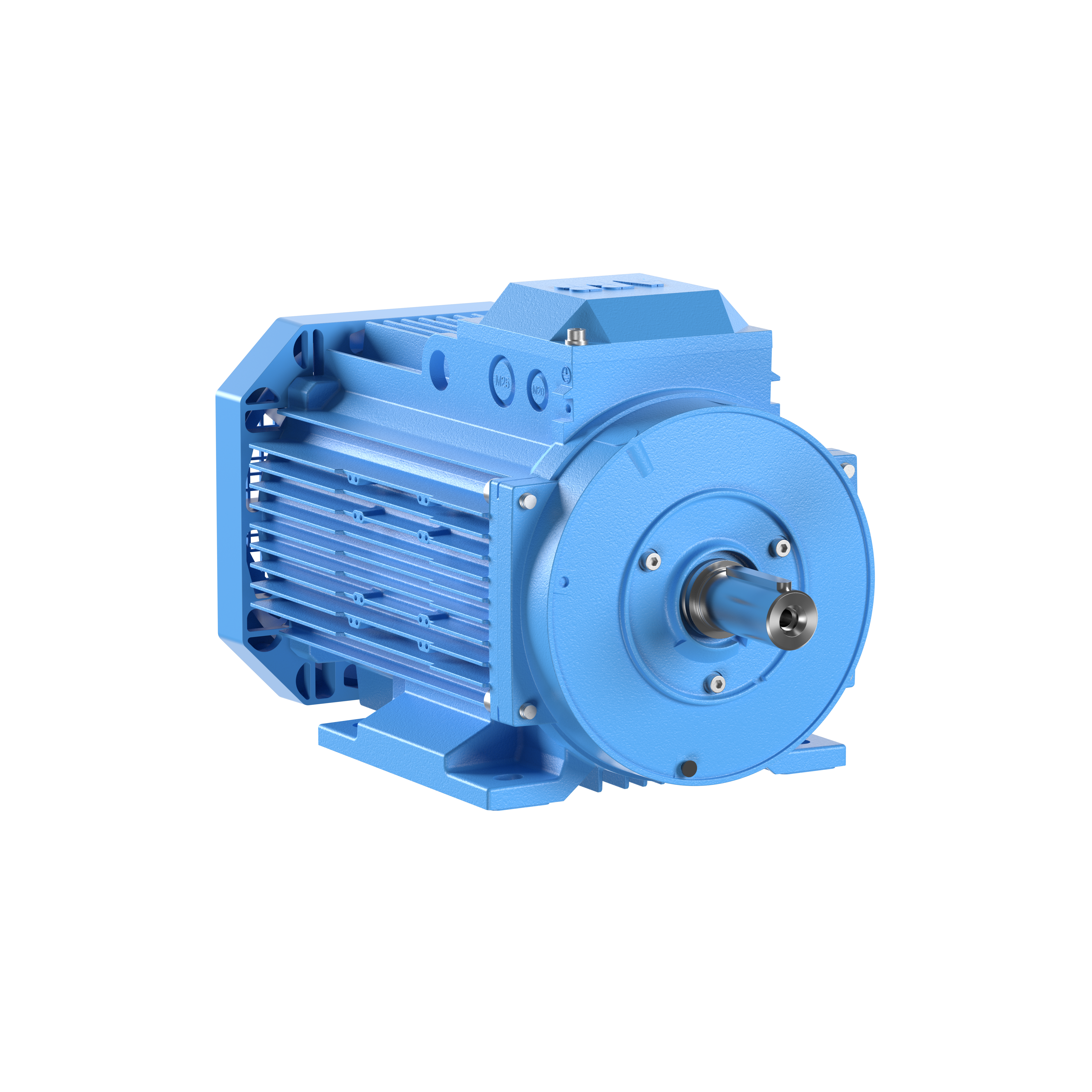

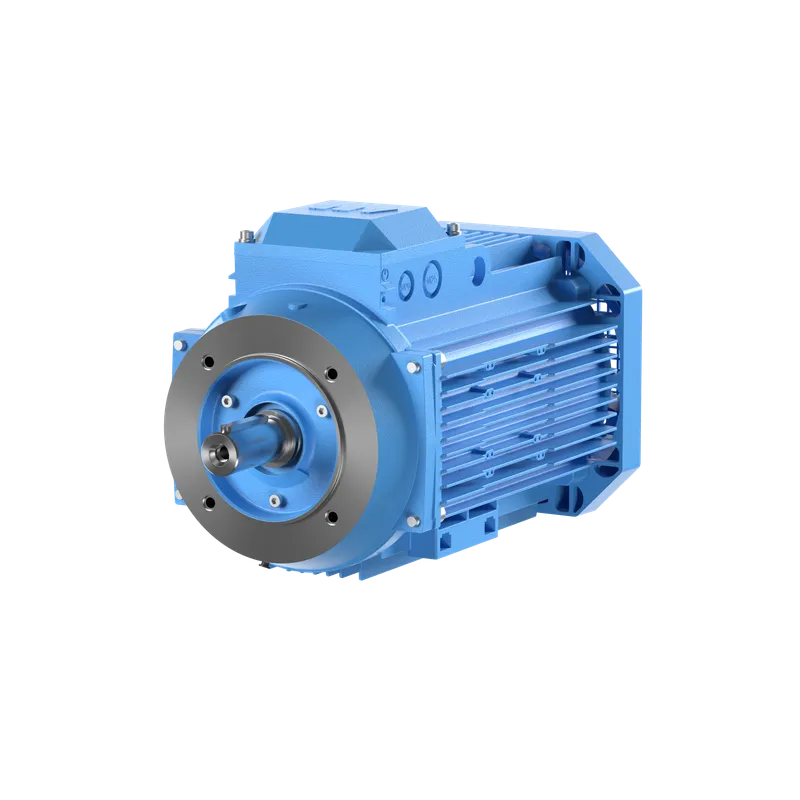

ABB Type Designation	M3AA 100LD 4
Invoice Description	M3AA 100LD 4
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Spain, China, Sweden
Customs Tariff Number	85015220

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 86.1 %, Partial Load (75%) 86.0 %, Partial Load (50%) 84.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	G G

Mechanical

Frame Material	Aluminum
Frame Size	100
Bearing	6306-2Z/C3
Bearing NDE	6205-2Z/C3
Lubrication	For life
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	28 kg kg
Gross Weight	28.65 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
EAN	3GAA102444-AGE
