Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA102314-CDECN

ABB

ABB 3GAA102314-CDECN

MPN: 3GAA102314-CDECN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA102314-CDECN?

(3GAA102314-CDECN)

Specifications

Ordering

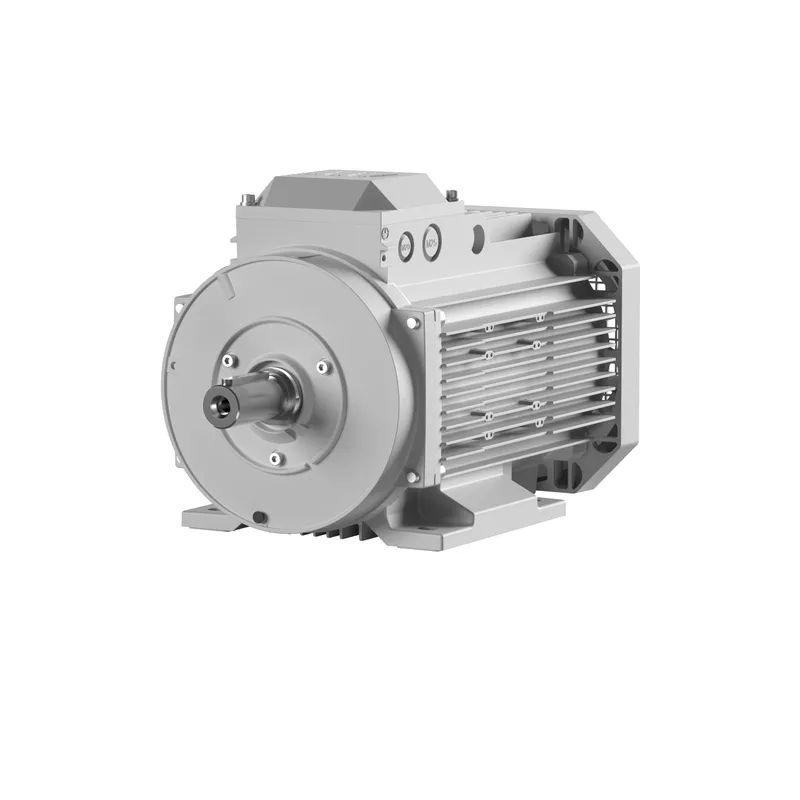

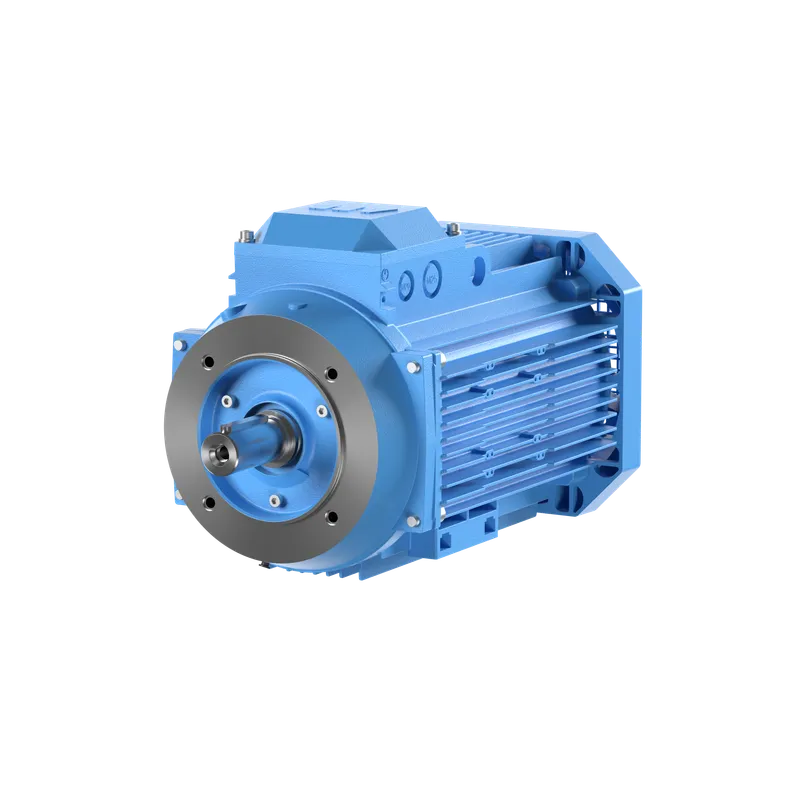

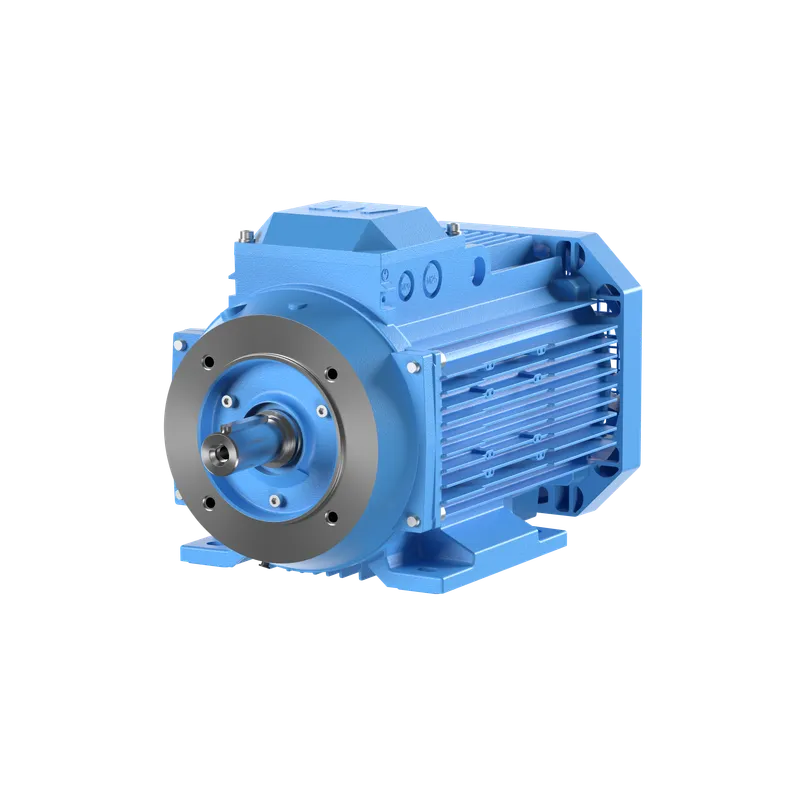

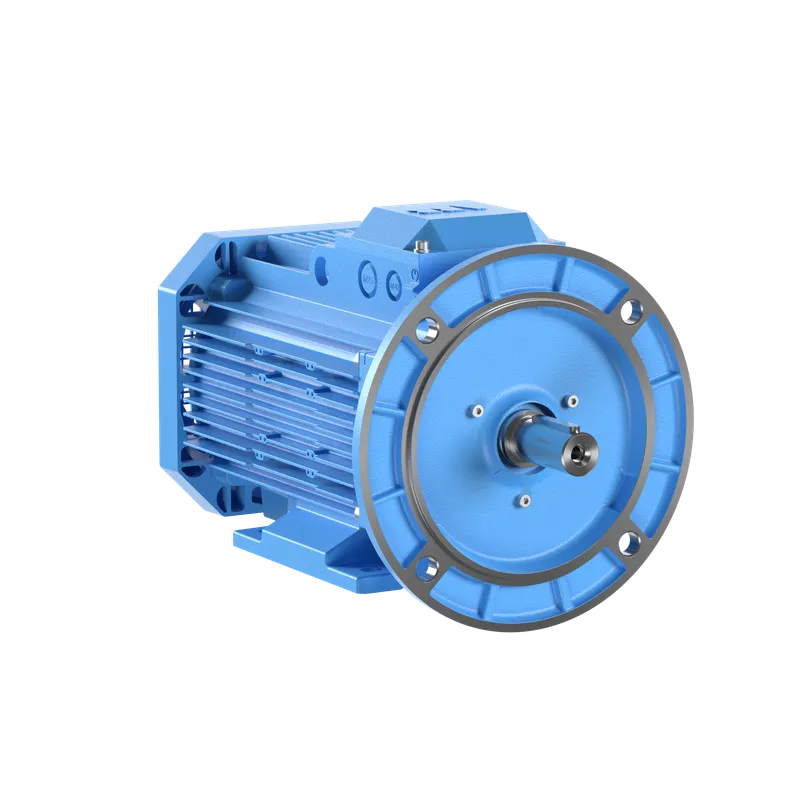

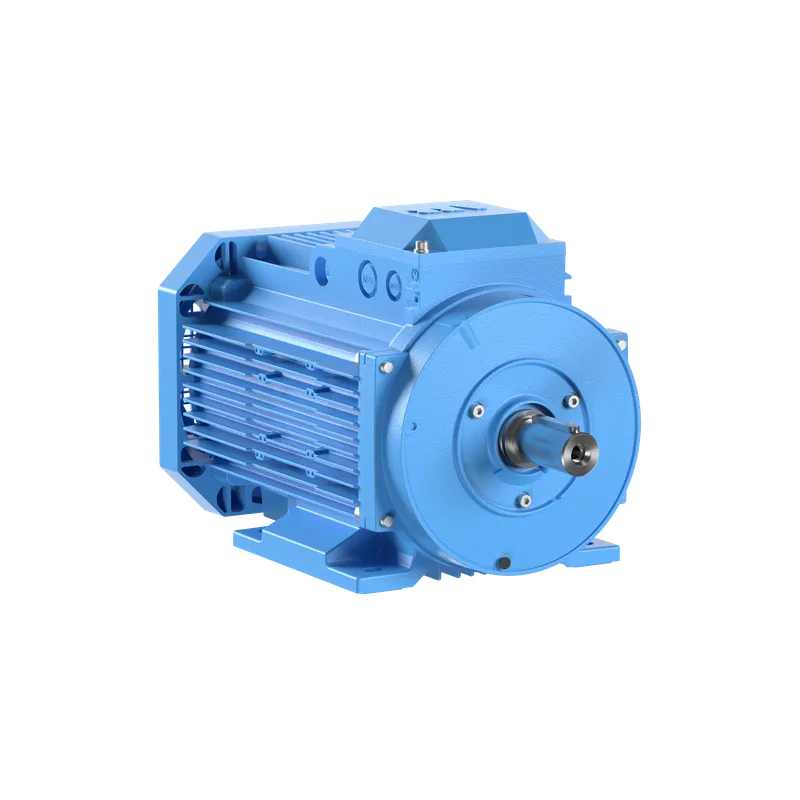

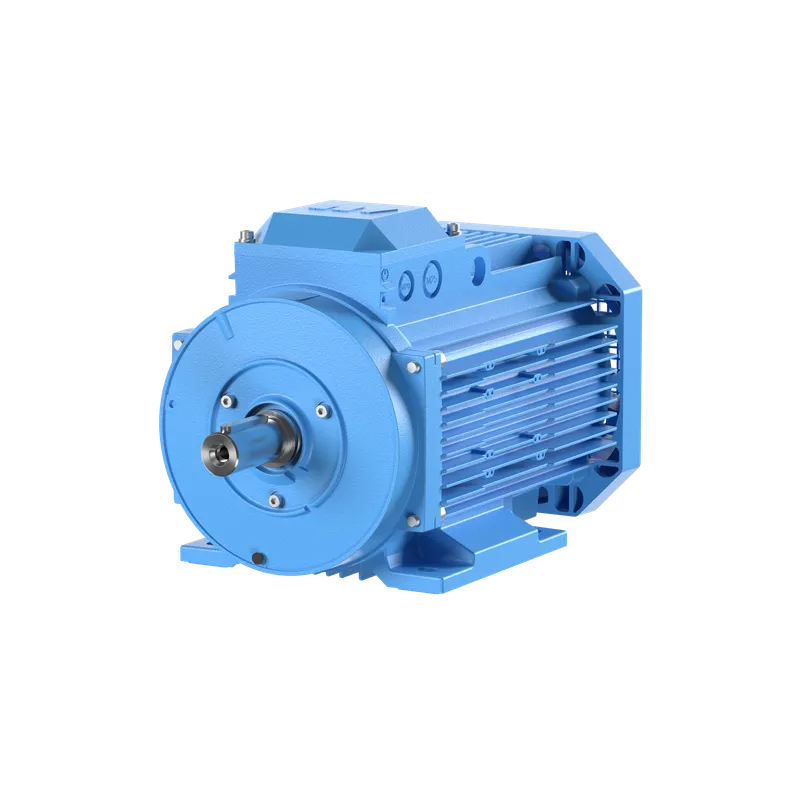

ABB Type Designation	M3AA 100LD 4 +540
Invoice Description	M3AA 100 incl. China energy label (+540)
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	China
Customs Tariff Number	85015100
Stocked At (Warehouses)	Shanghai, China

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 85.7 %, Partial Load (75%) 86.1 %, Partial Load (50%) 85.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	100
Bearing	6306-2Z/C3
Bearing NDE	6205-2Z/C3
Lubrication	For life
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Weight	29.65 kg kg
Gross Weight	29.65 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
