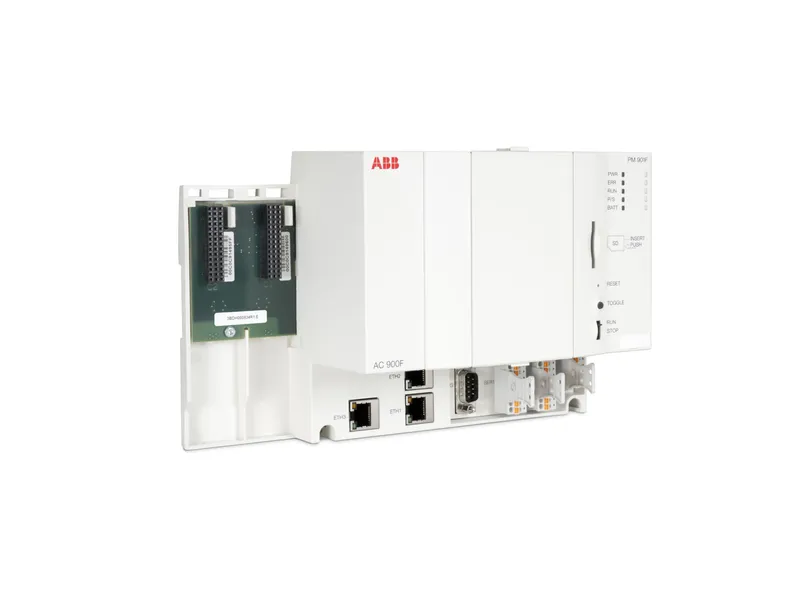

ABB 3BDH001001R0002 – PM 901F Rev.A PM 901F CPU Module

MPN: 3BDH001001R0002 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Freelance (AC 700F / AC 800F / AC 900F)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.07 kg

Shipping & availability

When can 3BDH001001R0002 be shipped?

3BDH001001R0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3BDH001001R0002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3BDH001001R0002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH001001R0002, subject to availability and destination.

This CPU module is the lite base unit of the Freelance AC 900F controller family and has 3 MB battery buffered SRAM. It is good enough for around 400 IOs, depending on the application.

3 Ethernet interfaces, 400 MHz CPU clock, 11 MB Controller Memory, 3 MB battery buffered SRAM, 8 MB DRAM. 2 slots for assembling Communication Interface Modules.

It comes without operating system. The operating system has to be loaded during software installation.

Needs external 24 VDC power supply.

Software version see instruction leaflet 2PAA120973-003

Display Unit TD 951F and Battery TA 951F are not included.

ABB 3BDH001001R0002 — PM 901F Rev.A PM 901F CPU Module (Freelance (AC 700F / AC 800F / AC 900F)). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.

Specifications

Product ID	3BDH001001R0002
ABB type designation	PM 901F Rev.A
System	Freelance (AC 700F / AC 800F / AC 900F)
Product group	AC 900F > AC 900F - Processor Modules
HS Code	853710 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Boards
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Number of Batteries	0
Width	227 mm
Height	152 mm
Depth / Length	95 mm
Weight	1.07 kg
