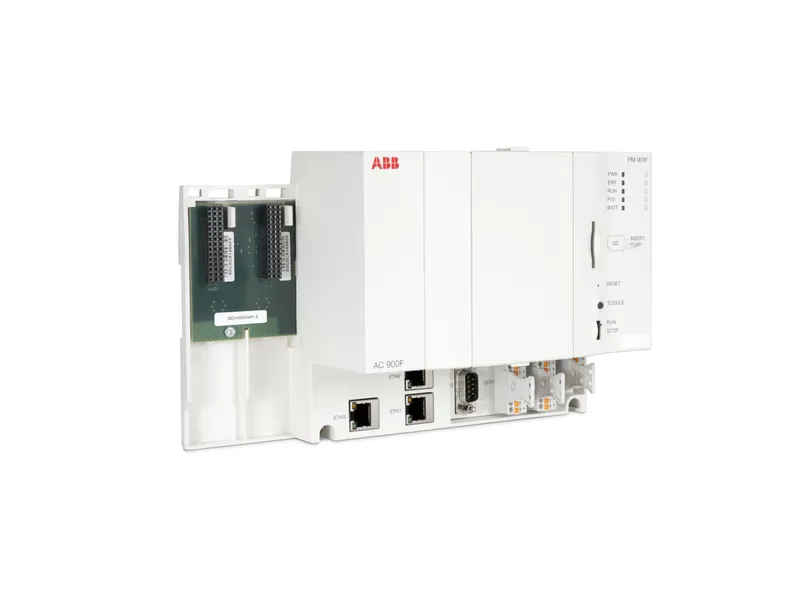

ABB 3BDH001001R0001 – PM 901F CPU Module
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Freelance (AC 700F / AC 800F / AC 900F) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.07 kg |
| Country of origin | DE |
Shipping & availability
When can 3BDH001001R0001 be shipped?
3BDH001001R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3BDH001001R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3BDH001001R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH001001R0001, subject to availability and destination.
This CPU module is the lite base unit of the Freelance AC 900F controller family and has 3 MB battery buffered SRAM. It is good enough for around 400 IOs, depending on the application.
3 Ethernet interfaces, 400 MHz CPU clock, 11 MB Controller Memory, 3 MB battery buffered SRAM, 8 MB DRAM. 2 slots for assembling Communication Interface Modules.
It comes without operating system. The operating system has to be loaded during software installation.
Needs external 24 VDC power supply.
Software version 2016 or higher is mandatory.
Display Unit TD 951F and Battery TA 951F are not included.
ABB 3BDH001001R0001 — PM 901F CPU Module (Freelance (AC 700F / AC 800F / AC 900F)). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3BDH001001R0001 |
| ABB type designation | PM 901F |
| System | Freelance (AC 700F / AC 800F / AC 900F) |
| Product group | AC 900F > AC 900F - Processor Modules |
| HS Code | 853710 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Boards |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Number of Batteries | 0 |
| Width | 227 mm |
| Height | 152 mm |
| Depth / Length | 95 mm |
| Weight | 1.07 kg |
