ABB 3BDH000505R1 – PH 875 - Main CPU Housing
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Symphony Plus |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 3.86 kg |
| Country of origin | DE |
Shipping & availability
When can 3BDH000505R1 be shipped?
3BDH000505R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3BDH000505R1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3BDH000505R1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH000505R1, subject to availability and destination.

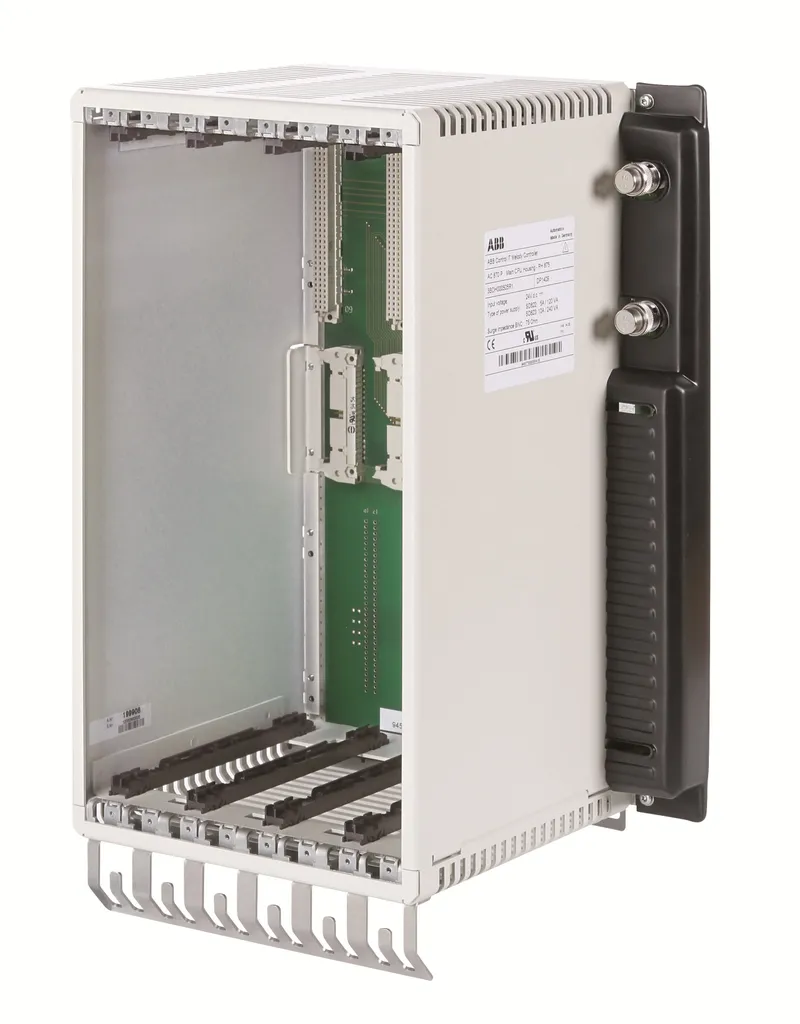

Main CPU Housing
- expandable with max. two PH 870
- 4 slots for controller PM 87x, I/O modules,
repeater CCR 70-2-P or interface module CCF 10-2-P
- DIN Rail mounting
ABB 3BDH000505R1 — PH 875 - Main CPU Housing (Symphony Plus). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3BDH000505R1 |
| ABB type designation | PH 875 |
| System | Symphony Plus |
| Product group | S+ MR > S+ MR - Accessories |
| HS Code | 853810 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Number of Batteries | 1 |
| Battery Type | Industrial |
| Battery Weight | 30 g |
| Width | 247 mm |
| Height | 375 mm |
| Depth / Length | 255 mm |
| Weight | 3.86 kg |
