ABB 3BDH000371R0005

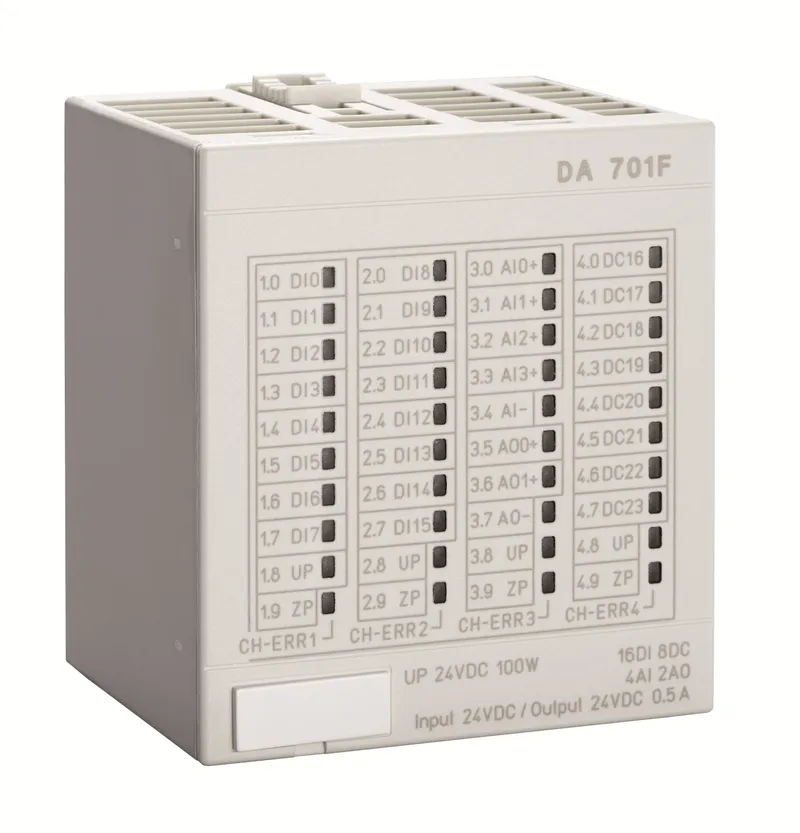

DA 701F DA 701F Digital/Analog Module

MPN
3BDH000371R0005
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 3BDH000371R0005?

The analog input/output module DA 701F offers quite more flexibility, as it combines analog input and output as well as digital input and output channels in one module with 30 channels.

Four of these channels can be individually configured as analog inputs, which can again sense voltage, current, or temperatures (RTD). Two channels can be configured as analog voltage outputs (-10 V to +10 V), or analog current outputs (0 … 20 mA or 4 … 20 mA). 16 channels are digital inputs (24 V DC) and the remaining 8 channels are usable for digital output signals (24 V DC).

The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels.

This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.

ABB 3BDH000371R0005 — DA 701F Rev.B DA 701F Digital/Analog Module (S600 / S700 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.

Specifications

Specifications

Product ID3BDH000371R0005
ABB type designationDA 701F Rev.B
SystemS600 / S700 I/O
Product groupS700 I/O > S700 I/O - Modules > DA 701F Digital/Analog Module
EAN4013614503115
HS Code853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts
Channel TypeAX|DX; DX
Number of Input Channels20
Number of Output Channels10
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Number of Batteries0
Width68 mm
Height54 mm
Depth / Length76 mm
Weight0.15 kg

3BDH000371R0005: frequently asked questions

When can 3BDH000371R0005 be shipped?

3BDH000371R0005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3BDH000371R0005 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3BDH000371R0005 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH000371R0005, subject to availability and destination.

More ABB parts

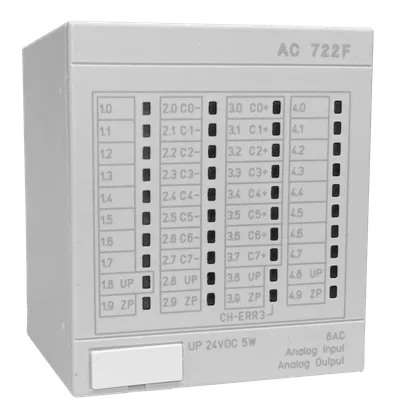

ABB 3BDH000369R0001 – AC 722F AC 722F Analog Input/Output Module
ABB
3BDH000369R0001

AC 722F AC 722F Analog Input/Output Module

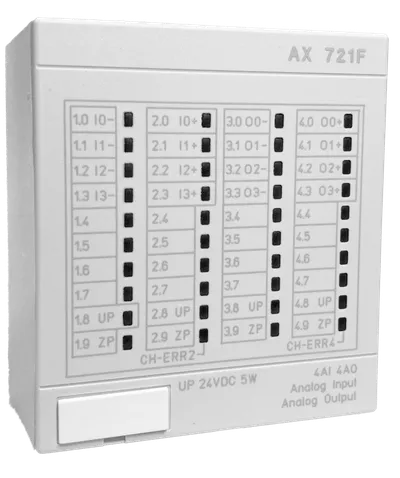

ABB 3BDH000370R0001 – AX 721F AX 721F Analog Input/Output Module
