ABB 3BDH000370R0001
AX 721F AX 721F Analog Input/Output Module
- MPN
- 3BDH000370R0001
- Category
- S600 / S700 I/O
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the ABB 3BDH000370R0001?

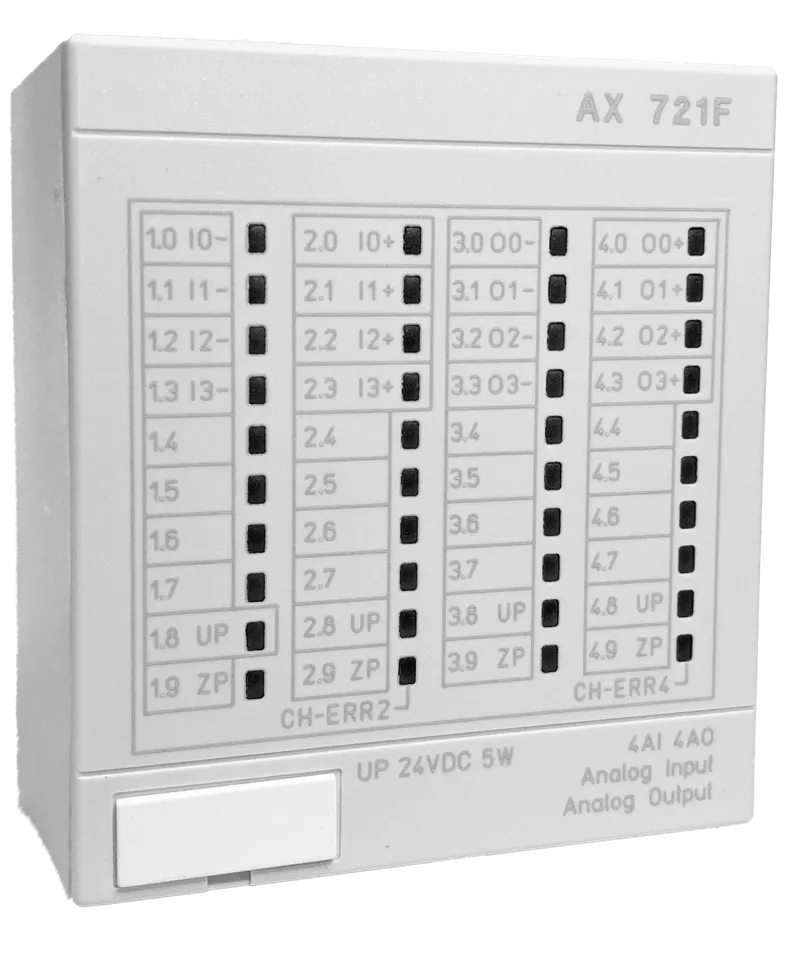

The analog input/output module AX 721F has 8 channels in two groups.
Four channels can be configured for sensing a voltage (0…10 V or -10…+10 V), sensing a current (0…20 mA or 4…20 mA) or temperature measurement (platinum or nickel resistance thermometers Pt100, Pt1000, Ni1000) in two- or three-wire configuration. Configuring the inputs as digital inputs is also possible.
Four channels can be configured as voltage or current output (-10…+10 V; 0…20 mA or 4…20 mA,).
The inputs and outputs are electrically isolated from the other electronic circuitry of the module. There is no potential separation between the channels.
This module is usable for PROFIBUS remote I/O and AC 700F / AC 900F direct I/O.
ABB 3BDH000370R0001 — AX 721F Rev. A AX 721F Analog Input/Output Module (S600 / S700 I/O). PartnerPLC sources discontinued and surplus ABB automation parts — request a quote for price, condition and lead time.
Specifications
Specifications
| Product ID | 3BDH000370R0001 |
| ABB type designation | AX 721F Rev. A |
| System | S600 / S700 I/O |
| Product group | S700 I/O > S700 I/O - Modules > AX 721F Analog Input/Output Module |
| HS Code | 853890 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Parts |
| Channel Type | AX |
| Number of Input Channels | 4 |
| Number of Output Channels | 4 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Number of Batteries | 0 |
| Width | 67.5 mm |
| Height | 76 mm |
| Depth / Length | 54 mm |
| Weight | 0.13 kg |
No matching specifications
3BDH000370R0001: frequently asked questions
When can 3BDH000370R0001 be shipped?
3BDH000370R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3BDH000370R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3BDH000370R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3BDH000370R0001, subject to availability and destination.
