ABB 1SNA235156R2700 – BA4 Function Markers
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.011 kg |
| UPC / EAN | 3472592351568 |
Shipping & availability
When can 1SNA235156R2700 be shipped?
1SNA235156R2700 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SNA235156R2700 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SNA235156R2700 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SNA235156R2700, subject to availability and destination.

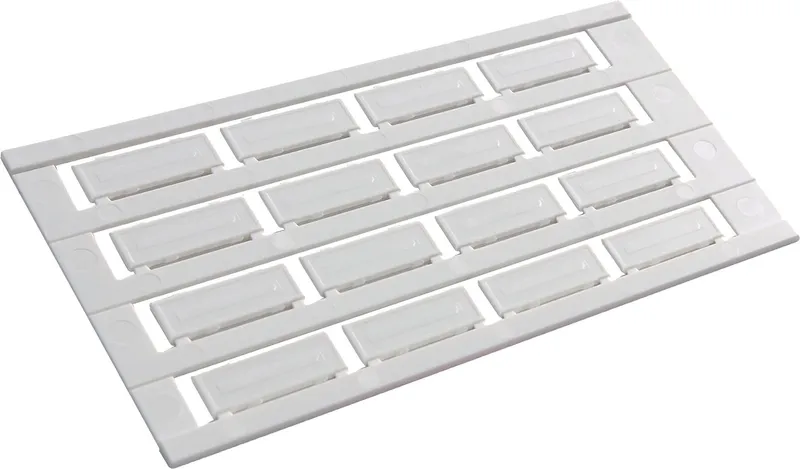

BA4 is a blank card of 16 function markers (available in a pack of 16 blank cards) printable on thermal transfer printer to identify contactors, overload relays or manual motor starters on front face.
Marker dimensions are 7 x 20 mm (.276" x .787").
Specifications
General
| Order code (ABB product ID) | 1SNA235156R2700 |
| Type | BA4 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 16 piece |
| Customs Tariff Number | 39269097 |
Dimensions
| Product Net Width | 20 mm |
| Product Net Depth / Length | 1 mm |
| Product Net Height | 7 mm |
| Product Net Weight | 11 g |
Technical
| Standards | UL 60335-2-40 LZGH2 A2L, UL 60947-5-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L |
| Suitable For | MO132, MO165, MS116, MS132, MS165, MS495, AS09, AS12, AS16, ASL09, ASL12, ASL16, NS22E, NS31E, NS40E, NS44E, NS53E, NS62E, NS71E, NS80E, NSL22E, NSL31E, NSL40E, NSL44E, NSL53E, NSL62E, NSL71E, NSL80E, VAS09, VAS12, VAS16, VASL09, VASL12, VASL16, AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, TF42, TF65, TF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, AFS09, AFS09Z, AFS12, AFS12Z, AFS16, AFS16Z, AFS26, AFS26Z, AFS30, AFS30Z, AFS38, AFS38Z, AFS40, AFS52, AFS65, AFS80, AFS96, MS132B, AF09B, AF09ZB, AF12B, AF12ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NF44E, NFZ44E, NF53E, NFZ53E, NF62E, NFZ62E, NF71E, NFZ71E, NF80E, NFZ80E, NF33/11, NF51/11, NFC22E, NFC31E, NFC40E, NFC44E, NFC53E, NFC62E, NFC71E, NFC80E, NFC33/11, NFC51/11, NFZB22E, NFB22E, NFZB31E, NFB31E, NFZB40E, NFB40E, NFZB44E, NFB44E, NFZB62E, NFB62E, NFZB80E, NFB80E, AX260, AX300, AX370 |
| Product Name | Function Marker |
Technical UL/CSA
| Flammability According to UL94 | V-0 |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| ETIM 7 | EC000761 - Labelling for terminal block |
| ETIM 8 | EC000761 - Labelling for terminal block |
| ETIM 9 | EC000761 - Labelling for terminal block |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SNC160023C0201) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
Certificates (8)
