ABB 1SFN170801R1002 – RU19/240 LVRT-Module

MPN: 1SFN170801R1002 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.1 kg
UPC / EAN	7320500481684

Shipping & availability

When can 1SFN170801R1002 be shipped?

1SFN170801R1002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFN170801R1002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFN170801R1002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN170801R1002, subject to availability and destination.

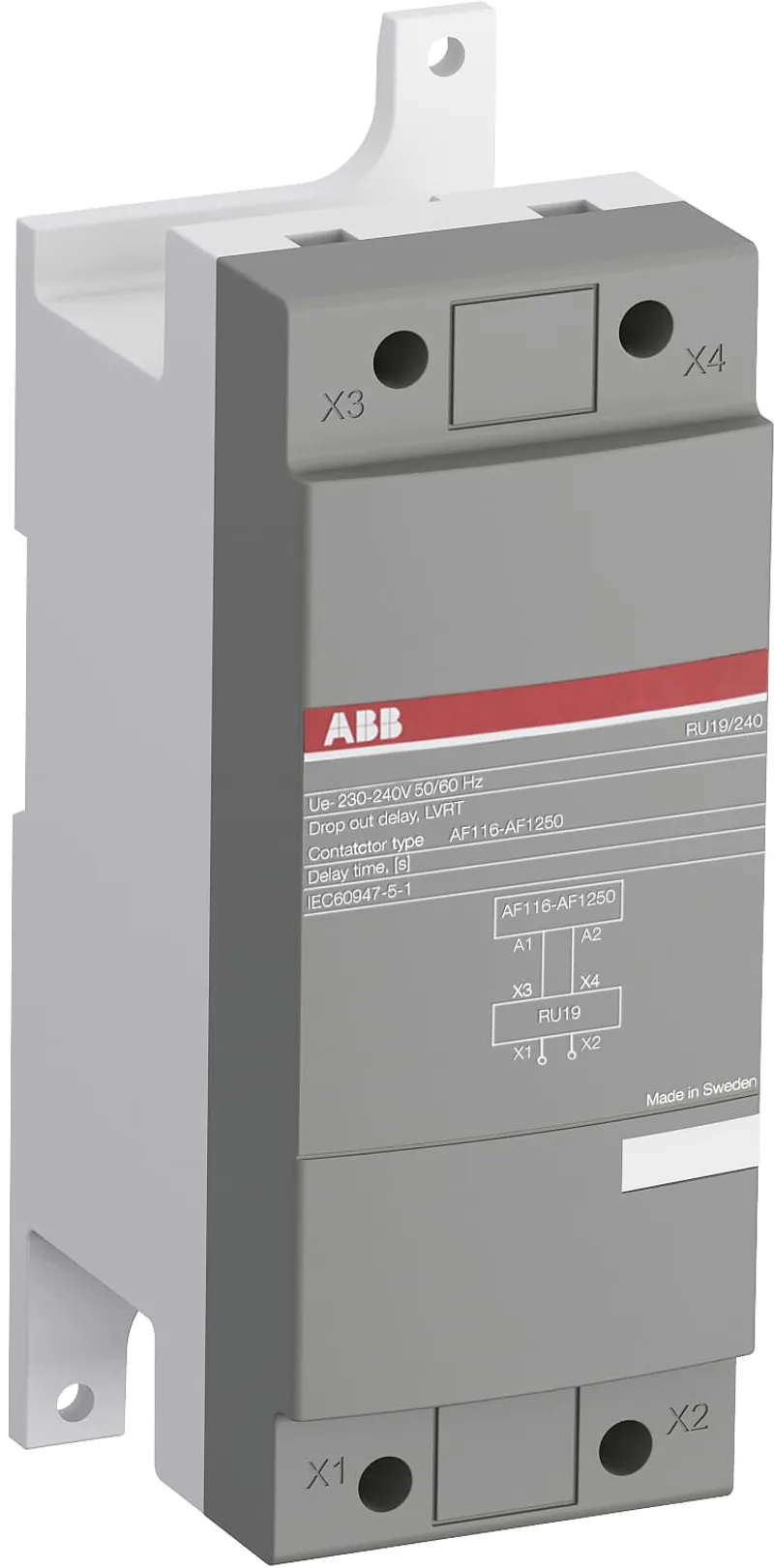

RU19/240 LVRT-Module

Specifications

General

Order code (ABB product ID)	1SFN170801R1002
Type	RU19/240
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85369001

Dimensions

Product Net Width	64 mm
Product Net Depth / Length	88 mm
Product Net Height	172 mm
Product Net Weight	0.1 kg

Technical

Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz / 60 Hz 230 ... 240 V
Terminal Type	Screw Terminals
Suitable For	AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370, AF400, AF460, AF580, AF750, AF1250
Suitable for Product Class	Block Contactors
Product Name	LVRT-Module

Material Compliance

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	X
ETIM 7	EC002498 - Accessories for low-voltage switch technology
ETIM 8	EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9	EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC	39121529
E-Number (Norway)	4189432
E-Number (Sweden)	4189432

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SFC101055M0201)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (4)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
Declaration of Conformity - CE (2CMT004858)
Declaration of Conformity - UKCA (2CMT2020-006120)
