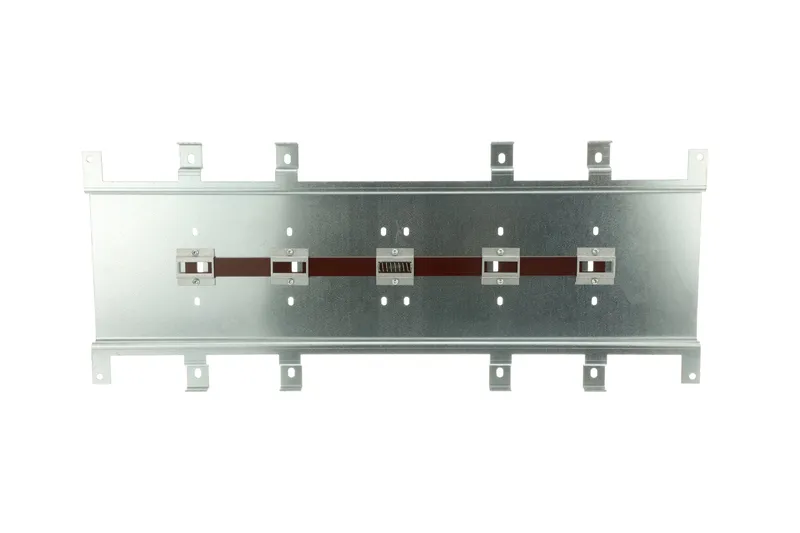

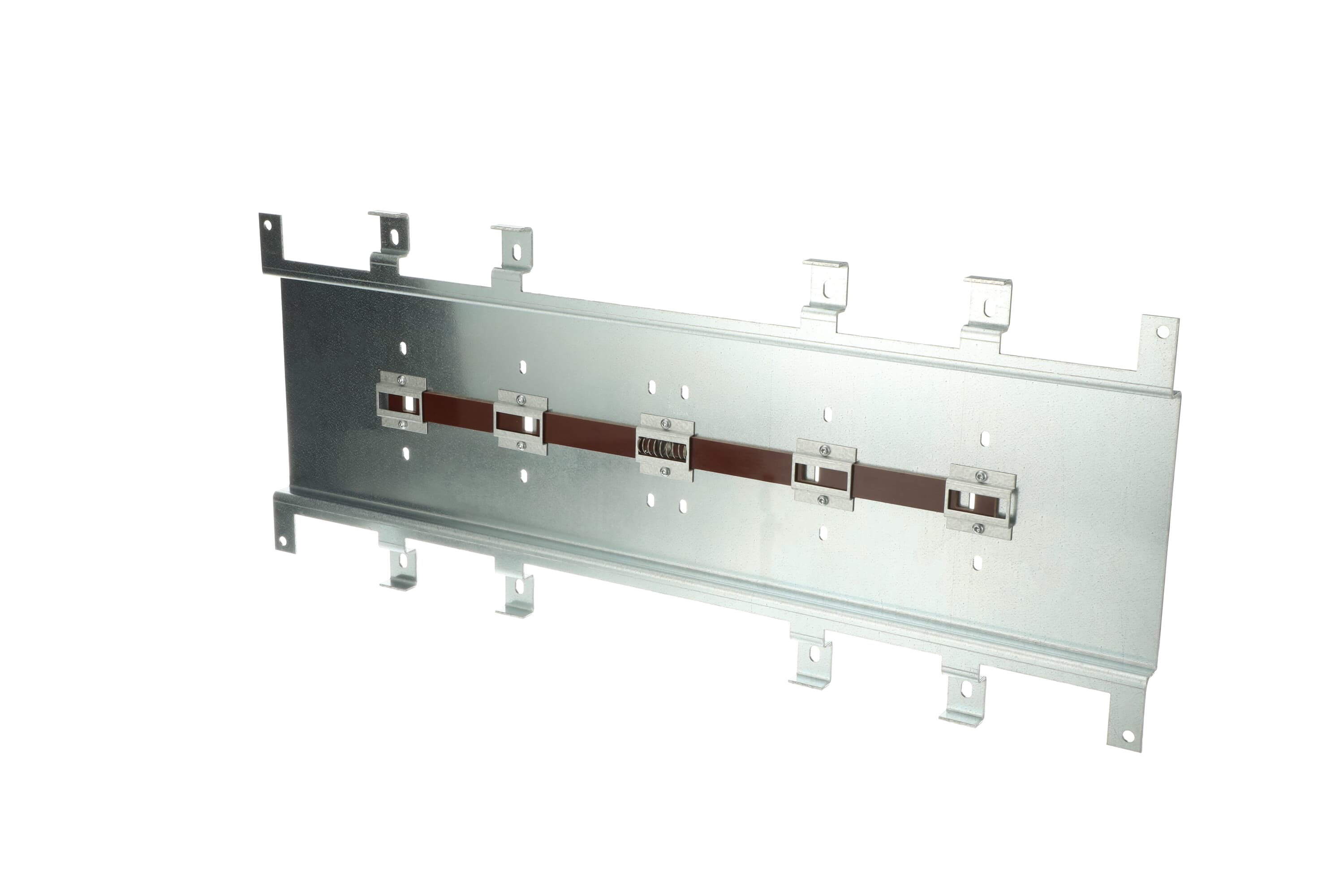

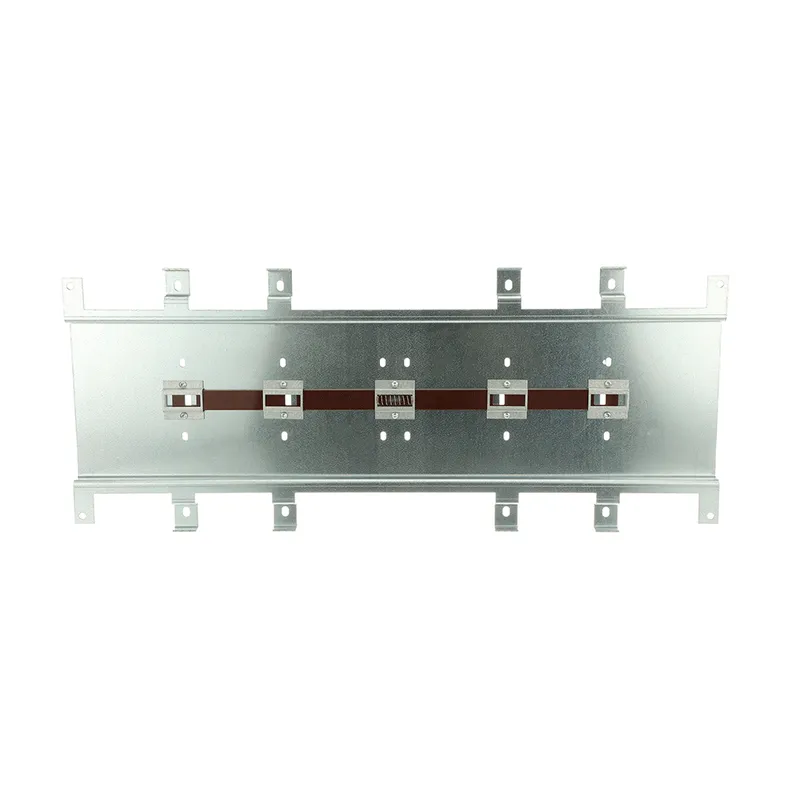

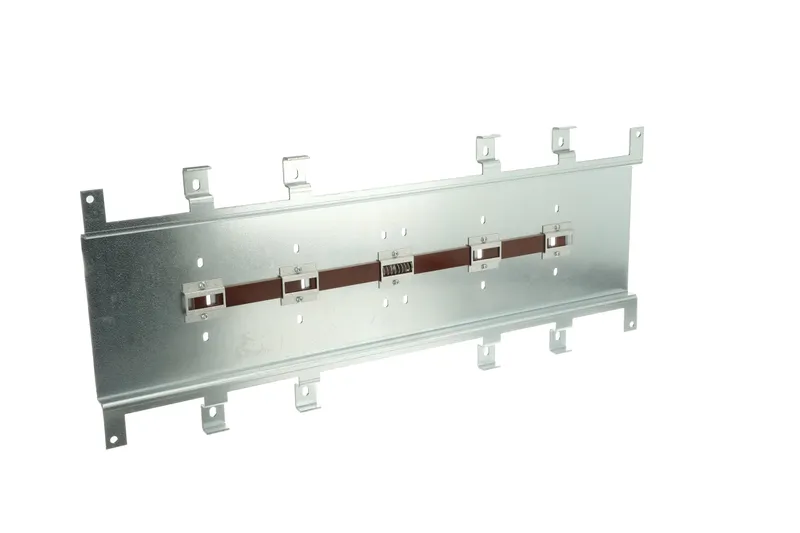

ABB 1SFN036503R1001 – VM1650H Mechanical Interlock
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 6 kg |
| UPC / EAN | 7320500495056 |
Shipping & availability
When can 1SFN036503R1001 be shipped?
1SFN036503R1001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SFN036503R1001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SFN036503R1001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFN036503R1001, subject to availability and destination.
Mechanical interlock for use with contactors AF1350…AF2650_NO UNIT$
Specifications
General
| Order code (ABB product ID) | 1SFN036503R1001 |
| Type | VM1650H |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 870 mm |
| Product Net Depth / Length | 155 mm |
| Product Net Height | 334 mm |
| Product Net Weight | 6 kg |
Technical
| Terminal Type | Screw Terminals |
| Suitable For | AF1350, AF1650, AF2050, AF2650 |
| Suitable for Product Class | Block Contactors |
| Product Name | Mechanical Interlock Unit |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | R |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SFC101012M5501) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on requestVM205/265 Mechanical Interlock Unit
Available on requestVM370/400H Mechanical Interlock
Available on requestVM750H Mechanical Interlock Unit
Available on requestVM750V Mechanical Interlock Unit
Available on requestRC5-3/440 Surge Suppressor

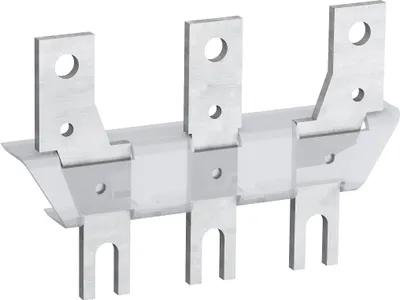

Available on requestLW140 Terminal Enlargement
