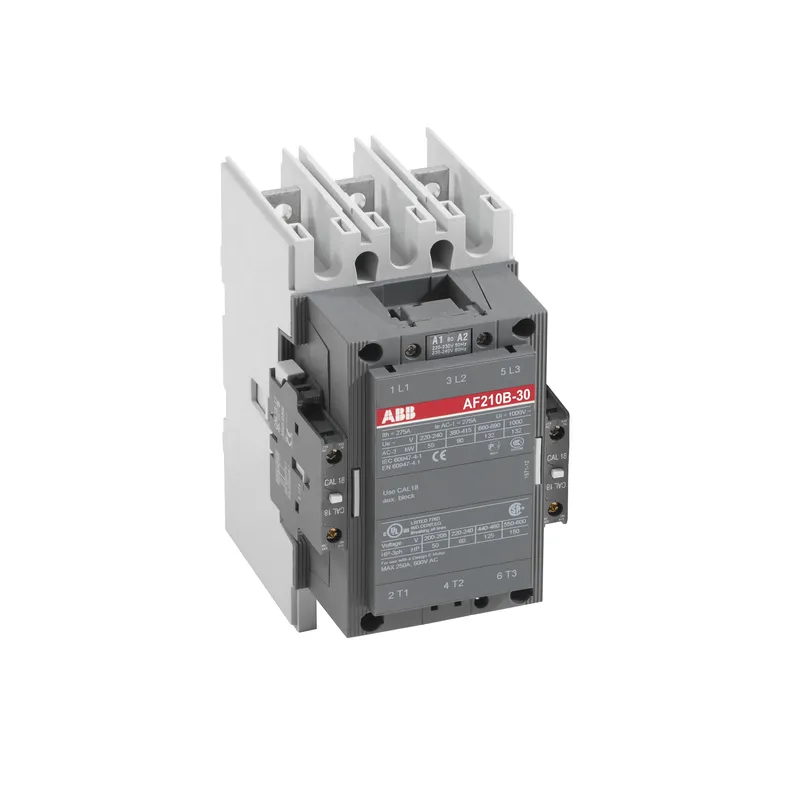

ABB 1SFL517001R7222 – AF210-30-22 20-60V DC Contactor

MPN: 1SFL517001R7222 · Brand: ABB

Price on request

Discontinued by ABB — we can still source the original 1SFL517001R7222 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	5.1 kg
UPC / EAN	7320500222805

Shipping & availability

Can I still buy the 1SFL517001R7222 now that it is discontinued?

Yes. ABB has discontinued the 1SFL517001R7222, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1SFL517001R7222 be shipped?

1SFL517001R7222 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL517001R7222 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL517001R7222 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL517001R7222, subject to availability and destination.

A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Operated with wide control voltage range 20-60 V, DC

Lifecycle: ABB lists this product as inactive (discontinued). PartnerPLC sources discontinued ABB parts — request a quote for availability, or ask us about the current ABB successor.

Specifications

General

Order code (ABB product ID)	1SFL517001R7222
Type	AF210-30-22-72
Lifecycle	Discontinued (inactive at ABB)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900
Replacement Product ID (NEW)	1SFL527002R1122

Dimensions

Product Net Width	140 mm
Product Net Depth / Length	180.5 mm
Product Net Height	227 mm
Product Net Weight	5.1 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	2
Number of Auxiliary Contacts NC	2
Number of Poles	3P
Rated Operational Voltage	Main Circuit 690 V
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 350 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 350 A, (690 V) 55 °C 300 A, (690 V) 70 °C 240 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 210 A, (440 V) 55 °C 210 A, (500 V) 55 °C 210 A, (690 V) 55 °C 210 A, (380 / 400 V) 55 °C 210 A, (220 / 230 / 240 V) 55 °C 210
Rated Operational Current DC-1 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 350 A, (220 V) 3 Poles in Series, 40 °C 350 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 350 A, (220 V) 3 Poles in Series, 40 °C 350 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 350 A, (220 V) 3 Poles in Series, 40 °C 350 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 110 kW, (440 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW, (380 / 400 V) 110 kW, (220 / 230 / 240 V) 59 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Short-Circuit Protective Devices	gG Type Fuses 400 A
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1700 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1000 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2500 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1200 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2200 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 2000 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour
Mechanical Durability	5 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	DC Operation 20 ... 60 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 10 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 470 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 470 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 520 W
Power Loss	at Rated Operating Conditions per Pole 9 W
Operate Time	Between Coil De-energization and NC Contact Closing 40 .... 50 ms, Between Coil De-energization and NO Contact Opening 43 ... 53 ms, Between Coil Energization and NC Contact Opening 45 ... 85 ms, Between Coil Energization and NO Contact Closing 50 ... 90 ms
Connecting Capacity Main Circuit	Bar 32 mm², Rigid Al-Cable 120 ... 240 mm², Rigid Cu-Cable 16 ... 240 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 1 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Bar 32 mm², Rigid Al-Cable 120 ... 240 mm², Rigid Cu-Cable 16 ... 240 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque	Main Circuit 18 N·m
Terminal Type	Main Circuit: Bars
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 300 A
Horsepower Rating UL/CSA	(200 V AC) Three Phase 60 hp, (208 V AC) Three Phase 60 hp, (220 ... 240 V AC) Three Phase 75, (440 ... 480 V AC) Three Phase 150 hp, (550 ... 600 V AC) Three Phase 200 hp
Full Load Amps Motor Use	(440 ... 480 V AC) Three Phase 180 A, (550 ... 600 V AC) Three Phase 192 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Shock Direction: A 5 g, Shock Direction: B1 5 g, Shock Direction: B2 5 g, Shock Direction: C1 5 g, Shock Direction: C2 5 g

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors
