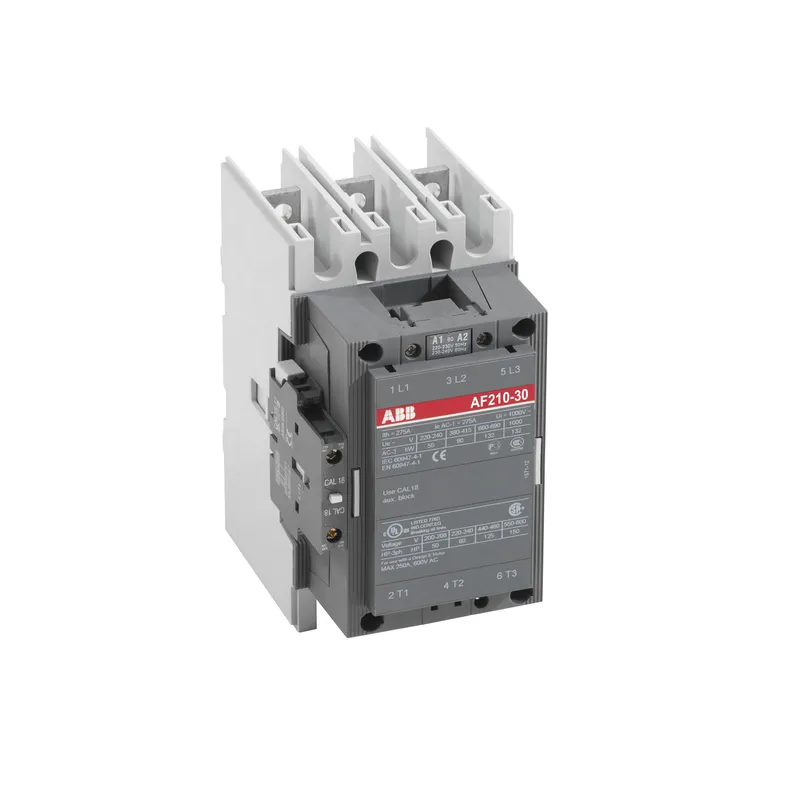

ABB 1SFL517001R7000

AF210-30-00 100-250V 50/60Hz / DC Contactor

MPN
1SFL517001R7000
EAN
7320500381113
Price and lead time confirmed within 1 business day

Discontinued by ABB — we can still source the original 1SFL517001R7000 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SFL517001R7000?

AF210-30-00 100-250V 50/60Hz / DC Contactor

Lifecycle: ABB lists this product as inactive (discontinued). PartnerPLC sources discontinued ABB parts — request a quote for availability, or ask us about the current ABB successor.

Specifications

General

Order code (ABB product ID)1SFL517001R7000
TypeAF210-30-00 100-250V 50/60Hz / DC
LifecycleDiscontinued (inactive at ABB)

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85364900
Replacement Product ID (NEW)1SFL527002R1300

Dimensions

Product Net Width140 mm
Product Net Depth / Length180.5 mm
Product Net Height227 mm
Product Net Weight5.05 kg

Technical

Number of Main Contacts NO3
Number of Main Contacts NC0
Number of Auxiliary Contacts NO0
Number of Auxiliary Contacts NC0
Number of Poles3P
Rated Operational Current AC-1 (I<sub>e</sub>)(690 V) 40 °C 350 A, (690 V) 55 °C 300 A, (690 V) 70 °C 240 A
Rated Operational Current AC-3 (I<sub>e</sub>)(415 V) 55 °C 210 A, (440 V) 55 °C 210 A, (500 V) 55 °C 210 A, (690 V) 55 °C 210 A, (380 / 400 V) 55 °C 210 A, (220 / 230 / 240 V) 55 °C 210
Rated Operational Power AC-3 (P<sub>e</sub>)(415 V) 110 kW, (440 V) 110 kW, (500 V) 132 kW, (690 V) 160 kW, (380 / 400 V) 110 kW, (220 / 230 / 240 V) 59 kW
Maximum Electrical Switching Frequency300 cycles per hour
Mechanical Durability5 million
Rated Control Circuit Voltage (U<sub>c</sub>)50 Hz 100...250 V, 60 Hz 100...250 V, DC Operation 100...250 V
Coil ConsumptionHolding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 10 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 470 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 470 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 500 W
Power Loss18 W, at Rated Operating Conditions per Pole 9 W
Terminal TypeMain Circuit: Bars
Product NameBlock Contactor

Technical UL/CSA

Horsepower Rating UL/CSA(200 V AC) Three Phase 60 hp, (208 V AC) Three Phase 60 hp, (220 ... 240 V AC) Three Phase 75, (440 ... 480 V AC) Three Phase 150 hp, (550 ... 600 V AC) Three Phase 200 hp

Material Compliance

RoHS InformationFollowing EU Directive 2011/65/EU
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeQ
ETIM 7EC000066 - Power contactor, AC switching
ETIM 8EC000066 - Power contactor, AC switching
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121529
IDEA Granular Category Code (IGCC)4755 >> Contactors

1SFL517001R7000: frequently asked questions

Can I still buy the 1SFL517001R7000 now that it is discontinued?

Yes. ABB has discontinued the 1SFL517001R7000, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1SFL517001R7000 be shipped?

1SFL517001R7000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL517001R7000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL517001R7000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL517001R7000, subject to availability and destination.
