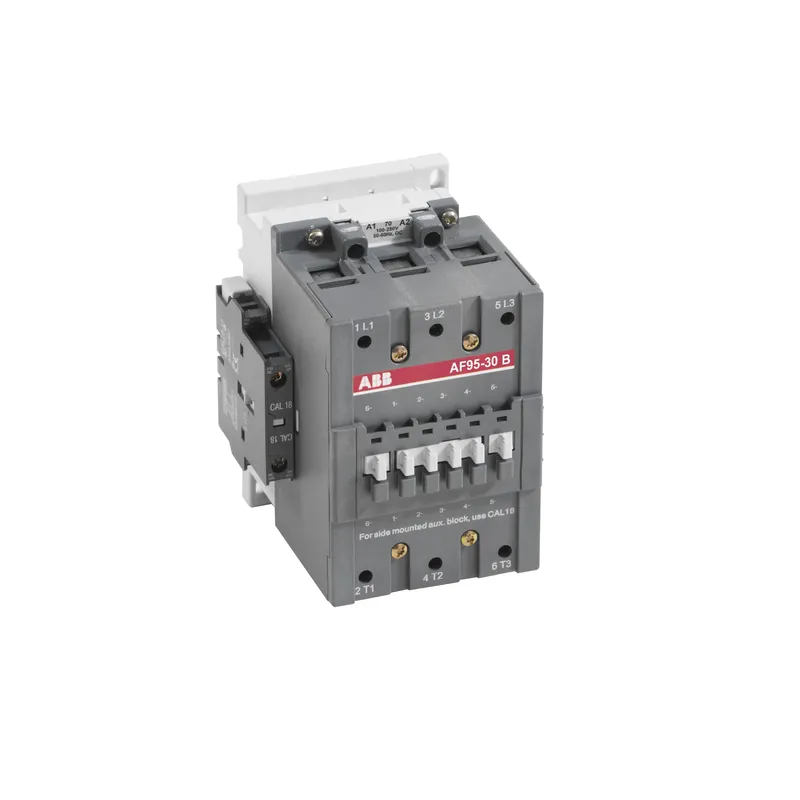

ABB 1SFL437063R7011 – AF95B-30-11 100-250V 50/60Hz / DC Contactor

MPN: 1SFL437063R7011 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AF Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	2.1 kg
UPC / EAN	7320500356432

Shipping & availability

When can 1SFL437063R7011 be shipped?

1SFL437063R7011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SFL437063R7011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SFL437063R7011 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SFL437063R7011, subject to availability and destination.

A 3-phase Contactor suitable for Rail way applications application. Operated with a wide voltage control voltage range 100-250 V, AC/DC

Specifications

General

Order code (ABB product ID)	1SFL437063R7011
Type	AF95B-30-11 100-250V 50/60Hz / DC
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	102 mm
Product Net Depth / Length	123.5 mm
Product Net Height	148 mm
Product Net Weight	2.1 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	3P
Standards	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage	Main Circuit 1000 V
Rated Frequency (f)	Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 145 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(690 V) 40 °C 145 A, (690 V) 55 °C 135 A, (690 V) 70 °C 115 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 96 A, (440 V) 55 °C 93 A, (500 V) 55 °C 80 A, (690 V) 55 °C 65 A, (1000 V) 55 °C 30 A, (380 / 400 V) 55 °C 96 A, (220 / 230 / 240 V) 55 °C 96
Rated Operational Current DC-1 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 145 A, (110 V) 2 Poles in Series, 55 °C 135 A, (110 V) 2 Poles in Series, 70 °C 115 A, (110 V) 3 Poles in Series, 40 °C 145 A, (110 V) 3 Poles in Series, 55 °C 135 A, (110 V) 3 Poles in Series, 70 °C 115 A, (220 V) 3 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 55 °C 135 A, (220 V) 3 Poles in Series, 70 °C 115 A
Rated Operational Current DC-3 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 145 A, (110 V) 2 Poles in Series, 55 °C 135 A, (110 V) 2 Poles in Series, 70 °C 115 A, (110 V) 3 Poles in Series, 40 °C 145 A, (110 V) 3 Poles in Series, 55 °C 135 A, (110 V) 3 Poles in Series, 70 °C 115 A, (220 V) 3 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 55 °C 135 A, (220 V) 3 Poles in Series, 70 °C 115 A, (72 V) 1-Pole, 40 °C 130 A, (72 V) 1-Pole, 55 °C 130 A, (72 V) 1-Pole, 70 °C 115 A
Rated Operational Current DC-5 (I<sub>e</sub>)	(110 V) 2 Poles in Series, 40 °C 145 A, (110 V) 2 Poles in Series, 55 °C 135 A, (110 V) 2 Poles in Series, 70 °C 115 A, (110 V) 3 Poles in Series, 40 °C 145 A, (110 V) 3 Poles in Series, 55 °C 135 A, (110 V) 3 Poles in Series, 70 °C 115 A, (220 V) 3 Poles in Series, 40 °C 145 A, (220 V) 3 Poles in Series, 55 °C 135 A, (220 V) 3 Poles in Series, 70 °C 115 A
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 55 kW, (440 V) 55 kW, (500 V) 55 kW, (690 V) 55 kW, (1000 V) 40 kW, (380 / 400 V) 45 kW, (220 / 230 / 240 V) 25 kW
Rated Breaking Capacity AC-3	8 x Ie AC-3
Rated Making Capacity AC-3	10 x Ie AC-3
Short-Circuit Protective Devices	gG Type Fuses 160 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Main Circuit 8 kV
Maximum Electrical Switching Frequency	(AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour
Mechanical Durability	10 million
Maximum Mechanical Switching Frequency	300 cycles per hour
Coil Operating Limits	(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U<sub>c</sub>)	DC Operation 20 ... 60 V
Coil Consumption	Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A, Holding at Max. Rated Control Circuit Voltage DC 2 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 350 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 400 W
Power Loss	at Rated Operating Conditions per Pole 3.5 W
Operate Time	Between Coil De-energization and NC Contact Closing 60 ... 130 ms, Between Coil De-energization and NO Contact Opening 55 ... 125 ms, Between Coil Energization and NC Contact Opening 27 ... 77 ms, Between Coil Energization and NO Contact Closing 30 ... 80 ms
Connecting Capacity Main Circuit	Bar 30 mm², Flexible with Cable End 2 x 6 ... 35 mm², Rigid 2 x 6 ... 65 mm²
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 1 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm²
Connecting Capacity	Bar 30 mm², Flexible with Cable End 2 x 6 ... 35 mm², Rigid 1 x 10 ... 95 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Connecting Terminals (delivered in open position) Main Poles	M8 hexagon socket screw with single connector
Tightening Torque	Main Circuit 8 N·m
Terminal Type	Cable Clamp
Product Name	Block Contactor

Technical UL/CSA

Maximum Operating Voltage UL/CSA	Main Circuit 600 V
General Use Rating UL/CSA	(600 V AC) 125 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 7-1/2 hp, (200 ... 208 V AC) Three Phase 30 hp, (200 V AC) Three Phase 30 hp, (208 V AC) Three Phase 30 hp, (220 ... 240 V AC) Three Phase 30, (240 V AC) Single Phase 20 hp, (440 ... 480 V AC) Three Phase 60 hp, (550 ... 600 V AC) Three Phase 75 hp
Full Load Amps Motor Use	(120 V AC) Single Phase 80 A, (200 ... 208 V AC) Three Phase 92 A, (220 ... 240 V AC) Three Phase 80 A, (240 V AC) Single Phase 88 A, (440 ... 480 V AC) Three Phase 77 A, (550 ... 600 V AC) Three Phase 77 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C
Maximum Operating Altitude Permissible	Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27	Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 g, Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g

Material Compliance

RoHS Information	Following EU Directive 2002/95/EC August 18, 2005 and amendment
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
