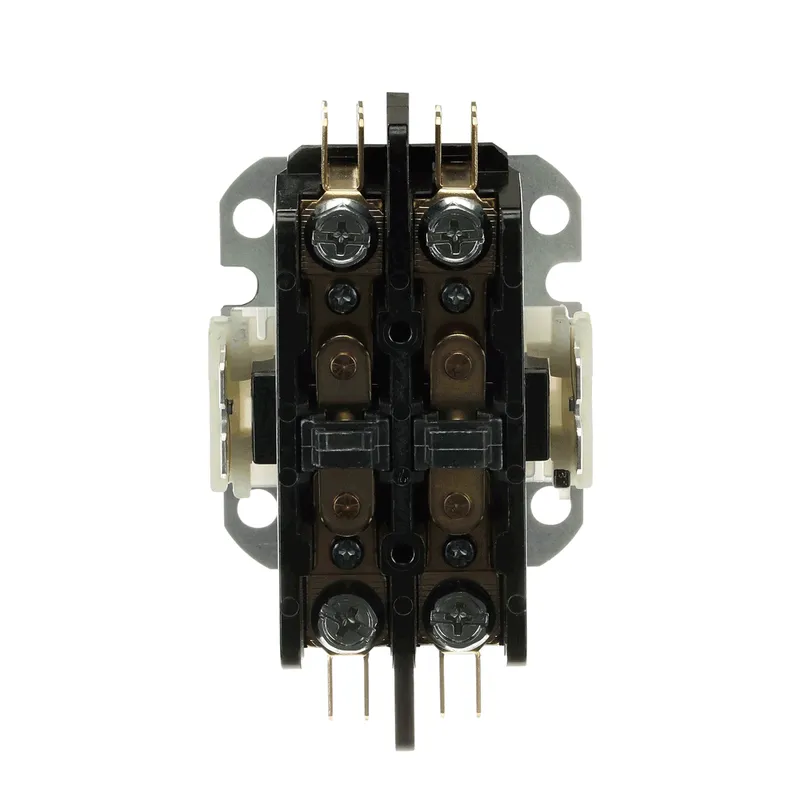

ABB 1SBX103200B1200 – DP30C2P-1/B Contactor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Definite Purpose Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 0662019799896 |
Shipping & availability
When can 1SBX103200B1200 be shipped?
1SBX103200B1200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBX103200B1200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBX103200B1200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBX103200B1200, subject to availability and destination.
DP30C2P-1/B DP contactor provide outstanding performance in various HVAC application and meet all relevant standards, including UL, CSA and IEC. Industry standard mounting plate provides easily accessible mounting holes.
Specifications
General
| Order code (ABB product ID) | 1SBX103200B1200 |
| Type | DP30C2P-1/B |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 50 piece |
| Customs Tariff Number | 85365080 |
Dimensions
| Product Net Depth / Length | 60.1 mm |
Technical
| Number of Main Contacts NO | 2 |
| Rated Frequency (f) | Control Circuit 50 Hz, Control Circuit 60 Hz |
| Product Name | Definite Purpose Contactors |
Technical UL/CSA
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 2 Hp, (220 ... 240 V AC) Single Phase 3 Hp |
| Full Load Amps Motor Use | 30 A |
| Full Load Amps AC Resistance (Heating) | (600 V AC) 40 A |
Environmental
| Ambient Air Temperature | Operation -40 ... +65 °C |
Material Compliance
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4757 >> Definite Purpose Contactors |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Certificates (1)
| REACH Declaration (2CMT2021-006202) |
