ABB Definite Purpose Contactors Parts

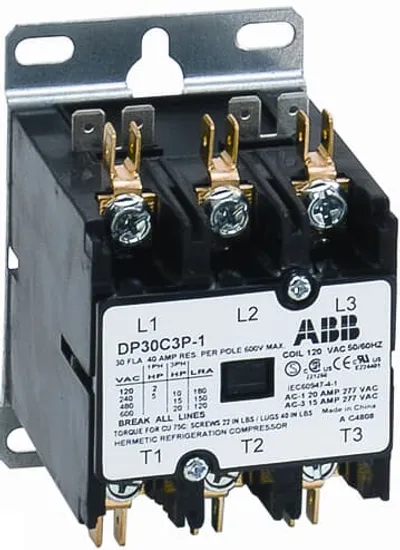

Available on requestDPE40C3P-81 Definite Purpose ContactorsMPN: 1SBX104300R2100 · ABB
Price on request
Request a quote
Available on requestDP60C3P-1/S/B contactorMPN: 1SBX106306B1200 · ABB
Price on request
Request a quote
Available on requestDP50C3P-C Definite Purpose ContactorsMPN: 1SBX105300R1400 · ABB
Price on request
Request a quoteCompare ABB Definite Purpose Contactors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (ABB product ID) | Type | Product Net Depth / Length | Full Load Amps Motor Use | Full Load Amps AC Resistance (Heating) |
|---|---|---|---|---|---|
| 1SBX104300R2100 | 1SBX104300R2100 | DPE40C3P-81 | 0 mm | — | — |

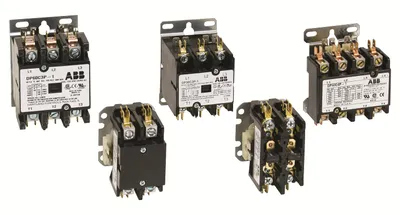

| 1SBX108300R1500 | 1SBX108300R1500 | DP90C3P-4 | 130 mm | 90 A | (600 V AC) 120 A |
| 1SBX108300R1100 | 1SBX108300R1100 | DP90C3P-F | 130 mm | 90 A | (600 V AC) 120 A |
| 1SBX108300R1700 | 1SBX108300R1700 | DP90C3P-6 | 130 mm | 90 A | (600 V AC) 120 A |
| 1SBX108300R1300 | 1SBX108300R1300 | DP90C3P-2 | 130 mm | 90 A | (600 V AC) 120 A |
| 1SBX108300R1200 | 1SBX108300R1200 | DP90C3P-1 | 130 mm | 90 A | (600 V AC) 120 A |
| 1SBX107300R1100 | 1SBX107300R1100 | DP75C3P-F | 130 mm | 75 A | (600 V AC) 90 A |

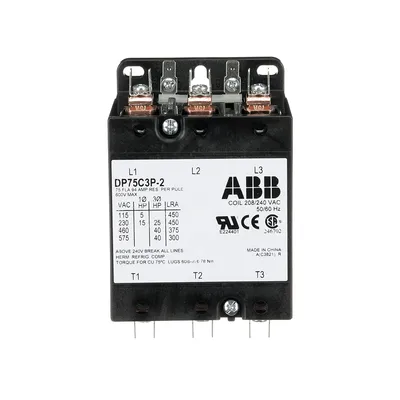

| 1SBX107300R1300 | 1SBX107300R1300 | DP75C3P-2 | 130 mm | 75 A | (600 V AC) 90 A |
| 1SBX107300R1200 | 1SBX107300R1200 | DP75C3P-1 | 130 mm | 75 A | (600 V AC) 90 A |
| 1SBX106300R1100 | 1SBX106300R1100 | DP60C3P-F | 83.7 mm | 60 A | (600 V AC) 75 A |
| 1SBX106306B1100 | 1SBX106306B1100 | DP60C3P-F/S | 95.8 mm | 60 A | (600 V AC) 75 A |
| 1SBX106300R1400 | 1SBX106300R1400 | DP60C3P-C | 83.7 mm | 60 A | (600 V AC) 75 A |
| 1SBX106300R1500 | 1SBX106300R1500 | DP60C3P-4 | 83.7 mm | 60 A | (600 V AC) 75 A |
| 1SBX106300R1300 | 1SBX106300R1300 | DP60C3P-2 | 83.7 mm | 60 A | (600 V AC) 75 A |
| 1SBX106306B1200 | 1SBX106306B1200 | DP60C3P-1/S/B | 95.8 mm | 60 A | (600 V AC) 75 A |
| 1SBX106306R1200 | 1SBX106306R1200 | DP60C3P-1/S | 95.8 mm | 60 A | (600 V AC) 75 A |
| 1SBX106390R1201 | 1SBX106390R1201 | DP60C3P-1/PB | 95.8 mm | 60 A | (600 V AC) 75 A |

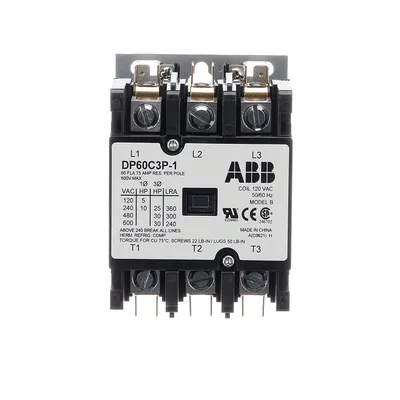

| 1SBX106300R1200 | 1SBX106300R1200 | DP60C3P-1 | 83.7 mm | 60 A | (600 V AC) 75 A |
| 1SBX106200R1500 | 1SBX106200R1500 | DP60C2P-4 | 95.8 mm | 60 A | — |
| 1SBX106200R1100 | 1SBX106200R1100 | DP60C2P-F | 95.8 mm | 60 A | — |
| 1SBX106200R1300 | 1SBX106200R1300 | DP60C2P-2 | 95.8 mm | 60 A | — |
| 1SBX106200R1400 | 1SBX106200R1400 | DP60C2P-C | 95.8 mm | 60 A | — |
| 1SBX105300R1100 | 1SBX105300R1100 | DP50C3P-F | 83.7 mm | 50 A | (600 V AC) 65 A |
| 1SBX105300R1400 | 1SBX105300R1400 | DP50C3P-C | 0 mm | — | — |
Common to all listed parts
| Lifecycle | Active (current ABB product) |
| Customs Tariff Number | 85365080 |
| Product Name | Definite Purpose Contactors |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Object Classification Code | Q |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4757 >> Definite Purpose Contactors |
